ÁLAVA destroyers (1951)

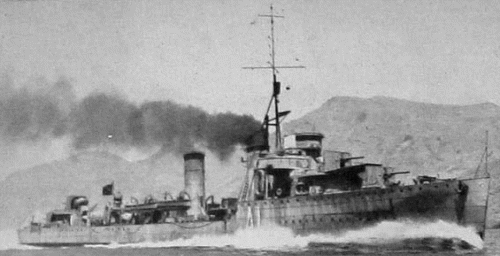

Álava 1952

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Álava D23, 1.1962- D52   SECN, Cartagena 7.1.1944 18.5.1947 11.12.1951 stricken 11.1978
Liniers D21, 9.1962- D51   SECN, Cartagena 30.12.1944 1.5.1946 27.1.1951 stricken 12.1982


Technical data


Data variantas commissioned 1962 modernization
Displacement standard, t

1712

1842

Displacement full, t

2225

2287

Length, m

97.5 pp 101.1 oa

97.5 pp 102.5 oa

Breadth, m

9.68

9.68

Draught, m

3.70

3.70 normal 6.00 max

No of shafts

2

2

Machinery

2 sets Parsons geared steam turbines, 4 Yarrow boilers

2 sets Parsons geared steam turbines, 4 Yarrow boilers

Power, h. p.

42000

31500

Max speed, kts

36

29

Fuel, t

oil 491

oil 540

Endurance, nm(kts)

4500(14)

4100(15)

Armament

4 x 1 - 120/45 Vickers-Armstrong Mk F, 2 x 1 - 37/83 SK C/30, 3 x 1 - 20/65 C/38, 2 x 3 - 533 TT, 2 DCT, 1 DCR

3 x 1 - 76/50 Mk 34, 3 x 1 - 40/70 SP48, 2 - 324 TR (side, 6), 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 8 DCT, 2 DCR

Electronic equipment --- MLA-1B, SG-6B, Decca TM626, 2x Mk 63 radars, SQS-30A sonar
Complement

204

222



Standard scale images


<i>Álava </i>1951

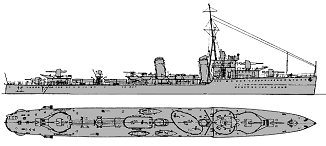

Álava 1951
<i>Liniers</i> 1981
Liniers 1981
<i>Álava </i>1965

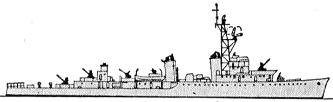

Álava 1965


Graphics


<i>Álava </i>1952
Álava 1952
<i>Álava </i>1960s

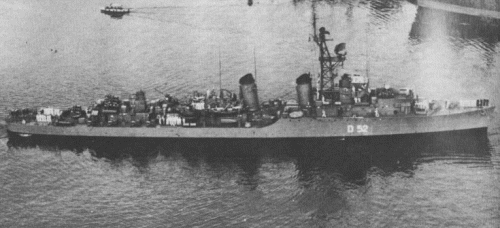

Álava 1960s
<i>Álava </i>1974

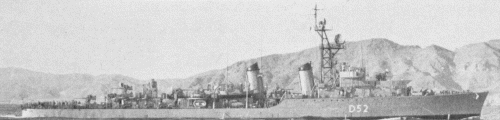

Álava 1974


Project history

Ordered under the law from 11.1.1936 mainly for SECN stuffing; under the design they were practically identical to Almirante Antequera class, differing by only quadruple TT mounts. Prior to the beginning of Civil war materials for both ships were only prepared, in September, 1939 works were renewed, however 26.1.1940 suspended in view of obvious outdating of project. Again the building of these destroyers was authorized 22.5.1943 and 24.1.1944 respectively, originally to sell this pair to Argentina, after abandoning of Argentineans in 1944 from their acquisition they were built for Spanish Navy on the sample of Almirante Antequera. They were completed only in the early fifties, being already archaic.

Modernizations

(1960-1/1962), Álava; (1960-9/1962), Liniers: were drastically reconstructed to ASW ships with data as given in the table.

Naval service

Liniers since 1960s was used for training at Naval Academy.
