REINA REGENTE protected cruiser (1910)

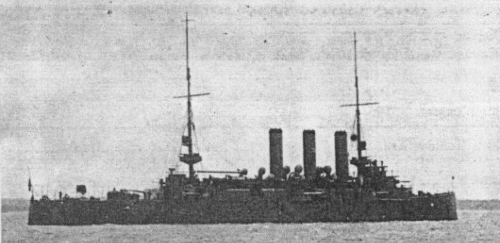

Reina Regente 1914

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Reina Regente     Arsenal del Ferrol 19.3.1897 20.9.1906 8.10.1910 discarded 12.1926


Technical data


Displacement normal, t

5287

Displacement full, t5871
Length, m

102.7 pp 110.9 oa

Breadth, m

16.1

Draught, m

4.95 mean 6.06 max

No of shafts

2

Machinery

2 VTE, 12 Belleville boilers

Power, h. p.

11000

Max speed, kts

19.5

Fuel, t

coal 1190

Endurance, nm(kts)
Armour, mm

deck: 90 - 51 with 120 - 68mm slopes, CT: 90, shields: 75

Armament

2 x 2 - 150/48 TR Gonzales de Rueda, 6 x 1 - 150/48 TR Gonzales de Rueda, 12 x 1 - 57/42 Nordenfelt, 8 x 1 - 37/27 Maxim

Complement

497



Standard scale images

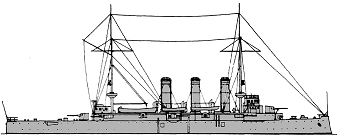

<i>Reina Regente </i>1910
Reina Regente 1910


Graphics


<i>Reina Regente </i>1914
Reina Regente 1914


Project history

By the commission moment ship spent on the shipyard 13 years already was considered become outdated.

Ship protection

Main deck had 90mm flat part with 120mm slopes amidships and 51mm flat part with 68mm slopes at ship ends.

Modernizations

None.

Naval service

In days of First World War Reina Regente served as TS.
