CONEJERA patrol launches (1981-1982)

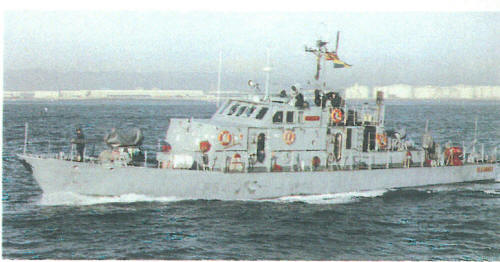

Alcanada 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Conejera PVZ31, 1986- P31   Bazán, San Fernando, Cádiz   9.1981 31.12.1981 stricken 2010, to Mozambique (Pebane)
Dragonera PVZ32, 1986- P32   Bazán, San Fernando, Cádiz   9.1981 31.12.1981 stricken 2010
Espalmador PVZ33, 1986- P33   Bazán, San Fernando, Cádiz   11.1.1982 10.5.1982 stricken 2010
Alcanada PVZ34, 1986- P34   Bazán, San Fernando, Cádiz   10.2.1982 10.5.1982 stricken 2010


Technical data


Displacement standard, t85
Displacement full, t

110

Length, m

30.0 pp 32.2 oa

Breadth, m

5.30

Draught, m

1.42

No of shafts

2

Machinery

2 Bazán-MAN V8V16/16TLS diesels

Power, h. p.2800
Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)1200(15)
Armament

1 x 1 - 20/70 Mk 10

Electronic equipmentFuruno radar
Complement

12



Standard scale images


<i>Conejera </i>2000
Conejera 2000


Graphics


<i>Alcanada </i>2003
Alcanada 2003


Project history

Ordered in 1978, jointly funded by the Navy and Ministry of Commerce. Aluminium hull.

Modernizations

None.

Naval service

No significant events.
