BEDOK minehunters (1995)

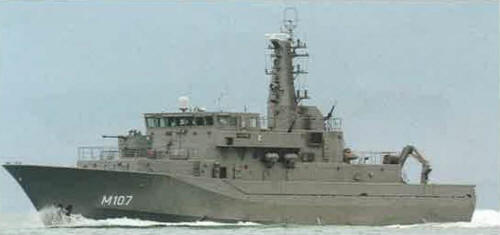

Katong 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Bedok | M105 | Karlskronavarvet, Karlskrona, Sweden | 17.10.1991 | 24.6.1993 | 7.10.1995 | in service (2019) | |
| Kallang | M106 | Karlskronavarvet, Karlskrona, Sweden // STM, Jurong | 1992 | 29.1.1994 | 7.10.1995 | in service (2019) | |
| Katong | M107 | Karlskronavarvet, Karlskrona, Sweden // STM, Jurong | 1992 | 8.4.1994 | 7.10.1995 | in service (2019) | |
| Punggol | M108 | Karlskronavarvet, Karlskrona, Sweden // STM, Jurong | 1992 | 16.7.1994 | 7.10.1995 | in service (2019) |
Technical data
| Displacement standard, t | 315 |
|---|---|
| Displacement full, t | 360 |
| Length, m | 43.2 pp 47.5 oa |
| Breadth, m | 9.60 |
| Draught, m | 2.30 |
| No of shafts | 2 Voith-Schneider vertical cycloidal propellers |
| Machinery | 4 Saab-Scania DSI-14 diesels |
| Power, h. p. | 1440 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(12) |
| Armament | 1 x 1 - 40/70 SAK40/48 (315), 4 x 1 - 12.7/90, 2x PAP-104 Mk 5 USV, mechanical, magnetic, 2x acoustic minesweeping gear, decompression chamber |
| Electronic equipment | DB2000 radar, 9LV100 e/o system, TSM 2022 sonar, Shield Mk III decoy RL, Ibis V (TSM 2061) CCS |
| Complement | 31 |
Standard scale images
Bedok 2000
Graphics
Katong 2009
Project history
Swedish Landsort class with differed equipment. GRP hull. Hulls for three ships were built in Sweden and outfitted in Singapore.
Modernizations
2009-2014, all: - 1 x 1 - 40/70; + 1 x 1 - 25/75 Mk 38, 2x K-Ster USV, DUBM-44 sonar
Naval service
No significant events.
