PANGLIMA large patrol boat (1956)
Panglima 1975
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Panglima | P68 | United Engineers, Singapore | 14.1.1956 | 5.1956 | to Malaysia 1963-1967 (Panglima), deleted 1995 |
Technical data
| Displacement standard, t | 119 |
|---|---|
| Displacement full, t | 134 |
| Length, m | 33.5 pp 35.7 oa |
| Breadth, m | 6.10 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 12-cyl Paxman YHAXM diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) |
|
| Armament | 1 x 1 - 40/60 Mk 7, 1 x 1 - 20/70 Mk 7 |
| Electronic equipment | type 978 radar |
| Complement | 15 |
Graphics

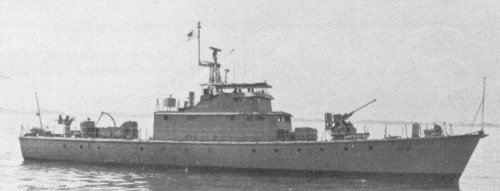

Panglima 1975
Project history
Built to the design of the British 'Ford' class seaward defence boat but without ASW capability.
Modernizations
None.
Naval service
No significant events.
