FERLO patrol boat (2013)
Ferlo 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Ferlo |
UFAST, Quimper, France // Raidco-Marine, Lorient, France: Ferlo |
2013: Ferlo |
none |
none |
in service (2020): Ferlo |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 80 |
| Length, m | 33.7 |
| Breadth, m | 6.53 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 MAN D2842 LE410 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(15) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 17 |
Graphics

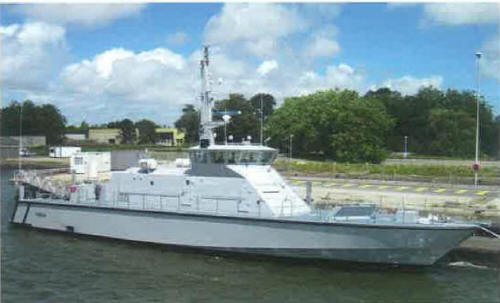

Ferlo 2013
Project history
RPB33 design., ordered in 2012. GRP hull with aluminium superstructure. Inspection RIB is carried on the ramp aft.
Modernizations
None.
Naval service
No significant events.
