CONEJERA patrol boat (1981/2012)

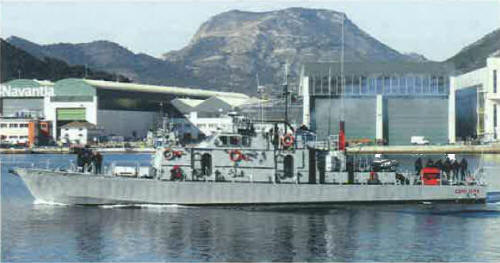

Conejera 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Conejera | PVZ31, 1986- P31 | Bazán, San Fernando, Cádiz | 9.9.1981 | 31.12.1981 // 21.2.2012 | in service (2020) |
Technical data
| Displacement standard, t | 81 |
|---|---|
| Displacement full, t | 110 |
| Length, m | 30.0 pp 32.2 oa |
| Breadth, m | 5.30 |
| Draught, m | 1.42 |
| No of shafts | 2 |
| Machinery | 2 Bazán-MAN V8V16/16TLS diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 15 |
Standard scale images
Conejera 2015
Graphics
Conejera 2012
Project history
Former Spanish Conejera patrol boat, retired from Spanish service in 2010. Maritime security and patrol duties.
Modernizations
None.
Naval service
No significant events.
