FIGHTING SHIPS OF THE WORLD
SAINT LUCIA
COAST GUARD
PROTECTOR patrol launch (1995)





Protector 2008

Ships


Names Builders Commissioned Losses Transfers Discarding

P04 Protector

SeaArk, Monticello, USA: P04

1995: P04

none

None

in service (2020): P04


Technical data


Displacement standard, t
Displacement full, t

15
Length, m

12.2
Breadth, m

3.86
Draught, m0.70
No of shafts

2
Machinery2 Caterpillar 3208TA diesels
Power, h. p.

690
Max speed, kts28
Fuel, t

diesel oil
Endurance, nm(kts)

400(22)
Armament

1 x 1 - 7.6/90
Electronic equipmentRaytheon 40X radar
Complement5


Graphics

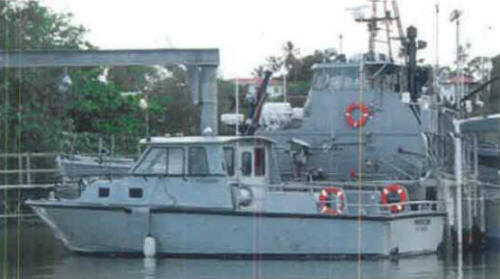

<i>Protector </i>2008
Protector 2008


Project history

Dauntless 40ft class. Aluminium construction.

Modernizations

None.

Naval service

No significant events.
