FIGHTING SHIPS OF THE WORLD
SAINT LUCIA
COAST GUARD
DEFENDER patrol boat (1984)
Defender 2004
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P02 Defender |
Swiftships, Morgan City, USA: P02 |
1984: P02 |
none |
None |
in service (2020): P02 |
Technical data
| Displacement standard, t | 35 |
|---|---|
| Displacement full, t | 42 |
| Length, m | 20.0 |
| Breadth, m | 5.59 |
| Draught, m | 1.52 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TI diesels |
| Power, h. p. | 1350 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(18) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Raytheon 1210 radar |
| Complement | 6 |
Graphics

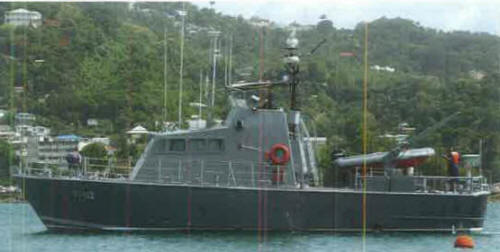

Defender 2004
Project history
65ft Commercial Cruiser design. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
