MINOGA submarine (1909)





Minoga

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Минога [Minoga]     Baltic Wks, St. Petersburg 9.1906 24.10.1908 11.1909 stricken 11.1925


Technical data


Displacement standard, t



Displacement normal, t123 / 152
Length, m

32.6

Breadth, m

2.79

Draught, m

2.74

No of shafts

1

Machinery

2 Nobel diesels / 1 electric motor

Power, h. p.

240 / 70

Max speed, kts

10 / 5.2

Fuel, t

diesel oil 2.8

Endurance, nm(kts)1000(8) / 90(4.5)
Armament

2 - 450 TT (bow, 4)

Complement

22

Diving depth operational, m45


Standard scale images


<i>Minoga</i> 1916
Minoga 1916


Graphics

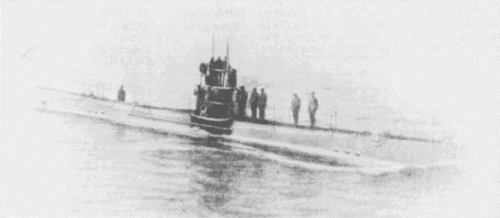

<i> Minoga</i>
Minoga


Project history

First-ever diesel-driven submarine in the world. Single-hulled, without watertight bulkheads. Minoga differed by bad seaworthiness and complexity of management in submerged position.

Modernizations

1915: + 1 x 1 - 37/20 Hotchkiss, 1 x 1 - 7.6/94

Naval service

No significant events.
