Project 667BDRM 2003

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
К-51 имени XXVI съезда КПСС [K-51 Imeni XXVI S'yezda KPSS], 6.1992- К-51 [K-51], 2.1999- К-51 Верхотурье [K-51 Verkhoturye]	818	379	Northern Yd, Severodvinsk	23.2.1981	7.3.1984	28.12.1984	in service (2019)
К-84 [K-84], 2.1999- К-84 Екатеринбург [K-84 Yekaterinburg]	829	380	Northern Yd, Severodvinsk	17.2.1982	17.3.1985	30.12.1985	in service (2019)
К-64 [K-64], 1999- КС-64 [KS-64], 2000- БС-64 [BS-64], 2008- БС-64 Подмосковье [BS-64 Podmoskovye]	855	381	Northern Yd, Severodvinsk	18.12.1982	2.2.1986	23.12.1986	in service (2019)
К-114 [K-114], 8.1997- К-114 Тула [K-114 Tula]	805	382	Northern Yd, Severodvinsk	22.2.1984	22.1.1987	30.10.1987	in service (2019)
К-117 [K-117], 1.1998- К-117 Брянск [K-117 Briansk]	820	383	Northern Yd, Severodvinsk	20.4.1985	8.2.1988	30.9.1988	in service (2019)
К-18 [K-18], 9.1996- К-18 Карелия [K-18 Kareliya]	804	384	Northern Yd, Severodvinsk	7.2.1986	2.2.1989	10.10.1989	in service (2019)
К-407 [K-407], 6.1997- К-407 Новомосковск [K-407 Novomoskovsk]	849	385	Northern Yd, Severodvinsk	2.2.1987	28.2.1990	27.11.1990	in service (2019)

Technical data

Displacement standard, t
Displacement normal, t	11740 / 18200
Length, m	166.3
Breadth, m	11.7 hull 19.0 max
Draught, m	10.5
No of shafts	2
Machinery	2 TZA-635 geared steam turbines units, 2 OK-700A nuclear reactors
Power, h. p.	40000
Max speed, kts	15.3 / 24
Fuel, t	nuclear
Endurance, nm(kts)	practically unlimited
Armament	16 R-29RM SLBM (16 R-29RM (3M37)), 4 - 533 TT (bow, 12, inc. URPK-6 Vodopad-PL SSM/ASuM (83R, 84R)), 1 x 1 Igla SAM (8 9M39)
Electronic equipment	MRK-50 Kaskad radar, MGK-520.6 Skat-BDRM sonar suite, MRP-21A ECM suite, MG-74 Korund-2 decoys, MVU-132BDRM Omnibus-BDRM CCS
Complement	135
Diving depth operational, m	320

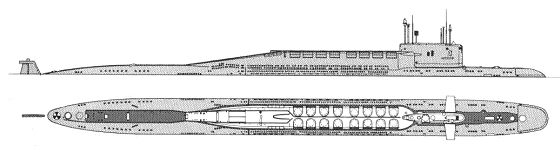

Standard scale images

Graphics

Project history

This is a redesigned pr. 667BDR to R-29RM missiles (hence the 'RM' suffix) with a new sonar. The spherical array squeezes out the 400mm self-defence tubes, and there is a towed array and a flank array.

Modernizations

2003, K-84 Yekaterinburg; 2006, K-114 Tula; 2008, K-117 Briansk; 2009, K-18 Kareliya; 2012, K-51 Verkhoturye, K-407 Novomoskovsk: - 16 R-29RM SLBM; + 16 R-29RMU2 Sineva SLBM (16 3M37U2)

2016, BS-64 Podmoskovye: under Project 09787: - all armament, MGK-520.6 Skat-BDRM sonar; + Gneys-09787 sonar suite, bow- and stern thrusters, additional living and technical spaces instead of missile compartments, ability to carry Project 10831 or Project 18551 special purpose mini submarine; length oa became 173.0m, displacement 11600 / 15100t

Naval service

No significant events.
