K-452 nuclear powered cruise missile submarines (project 670M) (1973 - 1980)





Project 670M 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
К-452 [K-452], 6.1992- Б-452 [B-452], 12.1997- Б-452 Новгород Великий [B-452 Novgorod Velikiy]   901 Krasnoe Sormovo, Gorkiy 30.12.1972 25.7.1973 30.12.1973 stricken 5.1998
К-458 [K-458]   902 Krasnoe Sormovo, Gorkiy 12.2.1974 30.6.1975 29.12.1975 stricken 6.1991
К-479 [K-479], 6.1992- Б-479 [B-479]   903 Krasnoe Sormovo, Gorkiy 1.10.1975 6.5.1977 30.9.1977 stricken 7.1992
К-502 [K-503], 6.1992- Б-503 [B-503]   904 Krasnoe Sormovo, Gorkiy 7.2.1977 22.9.1978 31.12.1978 stricken 6.1993
К-508 [K-508], 6.1992- Б-508 [B-508]   905 Krasnoe Sormovo, Gorkiy 10.12.1977 3.10.1979 30.12.1979 stricken 8.1995
К-209 [K-209], 6.1992- Б-209 [B-209]   911 Krasnoe Sormovo, Gorkiy 20.12.1979 16.9.1980 30.12.1980 stricken 8.1995


Technical data


Displacement standard, t



Displacement normal, t

4372 / 5570

Length, m

104.9

Breadth, m

9.60 hull 16.4 max

Draught, m

7.78

No of shafts

1

Machinery

1 GTZA-631 geared steam turbines unit, OK-350 nuclear reactor

Power, h. p.

18800

Max speed, kts

12 / 24

Fuel, t

nuclear

Endurance, nm(kts)

practically unlimited

Armament

8 x 1 P-120 Malakhit SSM (8 4K85), 2 - 650 TT (bow, 4), 4 - 533 TT (bow, 14, inc. RPK-2 Vyuga ASuM (81R))

Electronic equipment

901-903: MRK-50 Kaskad radar, MGK-400 Rubikon sonar suite, MG-17 sonars, MRP-10M Zaliv-P ECM suite, MG-14 Anabar decoys, Brest CCS

904-911: MRK-50 Kaskad radar, MGK-500 Skat-M sonar suite, MG-17 sonars, MRP-10M Zaliv-P ECM suite, MG-14 Anabar decoys, Brest CCS

Complement

84

Diving depth operational, m

240

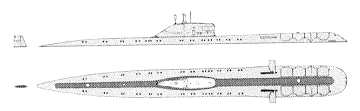

Standard scale images


<i>B-508 </i>1990
B-508 1990


Graphics


Project 670M 1979
Project 670M 1979


Project history

Modernized Project 670 with new missiles (Malakhit instead of Ametist) and sonar suite.

Modernizations

1992, B-452 under Project 06704: - 8 x 1 Malakhit SSMs, MGK-400 Rubikon sonar suite; + 8 x 3 P-160 Oniks SSM (24 3M55), MGK-500 Skat-M sonar suite; 4370/5570t, 104.9x9.9(16.4)x7.4m

Naval service

No significant events.
