Project 667A 1980

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
К-137 [K-137], 4.1970- К-137 Ленинец [K-137 Leninets], 6.1992- К-137 [K-137]		420	Northern Wks, Severodvinsk	4.11.1964	11.9.1966	6.11.1967	stricken 4.1994	Project 667A
К-140 [K-140]		421	Northern Wks, Severodvinsk	19.9.1965	23.8.1967	30.12.1967	stricken 4.1990	Project 667A
К-216 [K-216], 4.1986- КС-216 [KS-216]		424	Northern Wks, Severodvinsk	28.6.1966	6.8.1968	27.12.1968	stricken 7.1988	Project 667A
К-26 [K-26]		442	Northern Wks, Severodvinsk	30.12.1965	23.12.1967	3.9.1968	stricken 7.1988	Project 667A
К-32 [K-32], 6.1986- КС-32 [KS-32]		443	Northern Wks, Severodvinsk	23.4.1966	25.4.1968	26.10.1968	stricken 4.1990	Project 667A
К-207 [K-207], 8.1981- КС-207 [KS-207]		400	Northern Wks, Severodvinsk	4.11.1966	20.9.1968	30.12.1968	stricken 5.1989	Project 667A
К-210 [K-210], 11.1984- КС-210 [KS-210]		401	Northern Wks, Severodvinsk	19.12.1966	29.12.1968	6.8.1969	stricken 7.1988	Project 667A
К-249 [K-249], 11.1984- КС-249 [KS-249]		402	Northern Wks, Severodvinsk	18.3.1967	30.3.1969	27.9.1969	stricken 7.1988	Project 667A
К-253 [K-253]		414	Northern Wks, Severodvinsk	26.6.1967	5.6.1969	1.11.1969	stricken 6.1993	Project 667A
К-395 [K-395]		415	Northern Wks, Severodvinsk	8.9.1967	28.7.1969	5.12.1969	stricken 9.2002	Project 667A
К-408 [K-408]		416	Northern Wks, Severodvinsk	20.1.1968	4.9.1969	25.12.1969	stricken 7.1988	Project 667A
К-411 [K-411], 4.1982- КС-411 [KS-411], 6.1992- БС-411 [BS-411], 9.1998- БС-411 Оренбург [BS-411 Orenburg]		430	Northern Wks, Severodvinsk	25.5.1968	16.1.1970	31.8.1970	stricken 12.2004	Project 667A
К-418 [K-418]		431	Northern Wks, Severodvinsk	29.6.1968	14.3.1970	22.9.1970	stricken 3.1989	Project 667A
К-420 [K-420]		432	Northern Wks, Severodvinsk	12.10.1968	25.4.1970	29.10.1970	stricken 10.1994	Project 667A
К-423 [K-423]		440	Northern Wks, Severodvinsk	13.1.1969	4.7.1970	13.11.1970	stricken 9.1994	Project 667A
К-426 [K-426]		441	Northern Wks, Severodvinsk	17.4.1969	28.8.1970	22.12.1970	stricken 4.1990	Project 667A
К-415 [K-415], 5.1987- КС-415 [KS-415]		442	Northern Wks, Severodvinsk	4.7.1969	26.9.1970	30.12.1970	stricken 7.1988	Project 667A
К-403 [K-403], 7.1981- КС-403 [KS-403], 7.1997- КС-403 Казань [KS-403 Kazan']		450	Northern Wks, Severodvinsk	18.8.1969	25.3.1971	12.8.1971	stricken 12.2004	Project 667A
К-245 [K-245]		451	Northern Wks, Severodvinsk	16.10.1969	9.8.1971	16.12.1971	stricken 3.1992	Project 667A
К-214 [K-214], 3.1989- КС-214 [KS-214]		452	Northern Wks, Severodvinsk	19.2.1970	1.9.1971	31.12.1971	stricken 6.1991	Project 667A
К-241 [K-241]		462	Northern Wks, Severodvinsk	24.12.1970	9.6.1972	23.10.1972	stricken 6.1992	Project 667A
К-444 [K-444]		470	Northern Wks, Severodvinsk	8.4.1971	1.8.1972	9.12.1972	stricken 9.1994	Project 667A
К-399 [K-399]		151	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	23.2.1968	23.6.1969	24.12.1969	stricken 4.1990	Project 667A
К-434 [K-434]		152	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	23.2.1969	29.5.1970	30.11.1970	stricken 3.1989	Project 667A
К-236 [K-236]		153	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	6.11.1969	4.8.1970	27.12.1970	stricken 9.1990	Project 667A
К-389 [K-389]		154	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	26.7.1970	27.6.1971	25.11.1971	stricken 4.1990	Project 667A
К-258 [K-258]		156	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	30.3.1971	26.5.1972	30.9.1972	stricken 6.1991	Project 667A
К-219 [K-219]		460	Northen Wks, Severodvinsk	28.5.1970	8.10.1971	31.12.1971	explosion 6.10.1986	Project 627AU
К-228 [K-228]		461	Northen Wks, Severodvinsk	4.9.1970	3.5.1972	30.9.1972	stricken 9.1994	Project 627AU
К-252 [K-252]		155	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	25.12.1970	12.9.1971	31.12.1971	stricken 3.1989	Project 627AU
К-446 [K-446]		157	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	7.11.1971	8.8.1972	30.12.1972	stricken 3.1993	Project 627AU
К-451 [K-451], 10.1978- К-451 60 лет ВЛКСМ [K-451 60 Let VLKSM]		158	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	23.2.1972	29.4.1973	7.9.1973	stricken 6.1991	Project 627AU
К-436 [K-436]		159	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	7.11.1972	25.7.1973	5.12.1973	stricken 3.1992	Project 627AU
К-430 [K-430]		160	Leninskiy Komsomol Wks, Komsomolsk-on-Amur	27.7.1973	28.7.1974	25.12.1974	stricken 1.1995	Project 627AU

Technical data

Displacement standard, t
Displacement normal, t	7766 / 10020
Length, m	128.0
Breadth, m	11.7
Draught, m	7.90
No of shafts	2
Machinery	OK-700 steam generating unit (2 VM-2-4 nuclear reactors), 2 TZA-635 geared steam turbines units
Power, h. p.	40000
Max speed, kts	15 / 27
Fuel, t	nuclear
Endurance, nm(kts)	practically unlimited
Armament	pr. 627A: 16 R-27 SLBM (16 4K10), Strela-3M SAM, 4 - 533 TT (bow, 12), 2 - 400 TT (bow, 4) pr. 627AU: 16R-27U SLBM (16 R-27U), Strela-3M SAM, 4 - 533 TT (bow, 12), 2 - 400 TT (bow, 4)
Electronic equipment	RLK-101 Albatros radar, MGK-100 Kerch' sonar, Zaliv-P ECM suite, MVU-100 Tucha CCS
Complement	114
Diving depth operational, m	320

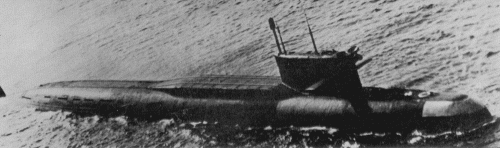

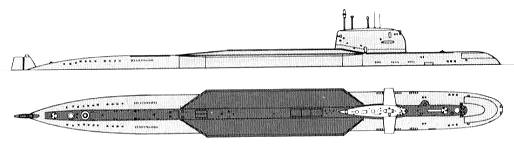

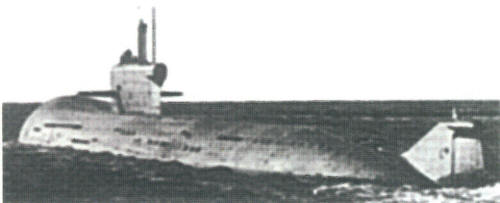

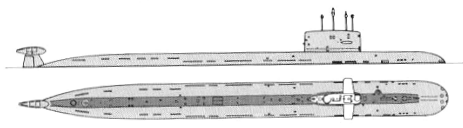

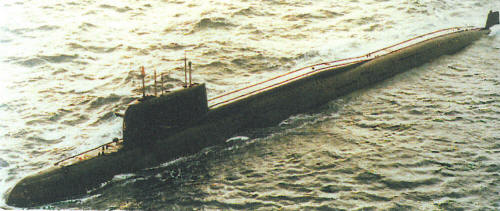

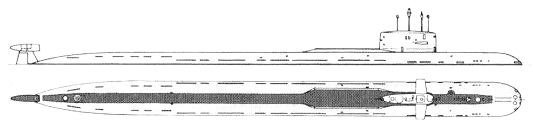

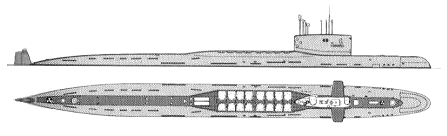

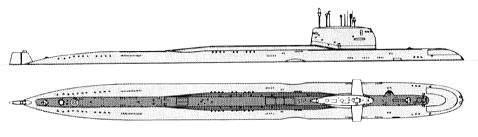

Standard scale images

Graphics

Project history

The technical project for this class was approved in 1964; the submarine was designed by Rubin design bureau (TsKB-18). This was reportedly the first design intended to fire ballistic missiles submerged. Since missiles no longer had to be raised to the top of the sail before firing, their tubes could be moved into the hull abaft the sail, in two parallel rows. A parallel Project 668 was intended to fire the new Bazalt cruise missile submerged, from inclined hull tubes. The missiles could be packed relatively densely because the tubes were fixed in the hull. The pressure hull was necked-in abaft the control room to accommodate the missile tubes; the pressure hull necked-out further aft to take the machinery. About 1960 both designs were lengthened to provide a second set of tubes (total twelve ballistic or cruise missiles) abaft the machinery.

Work on Bazalt halted in 1962 due to aerodynamic problems, and Project 668 was abandoned. The only available cruise missile was P-5/6, which could not be fired submerged, and which required an elevating launcher which stowed flat. That limited a submarine of this size to eight missiles, and there was no point in building a new type. Instead, a second batch of Project 675 was ordered. Eventually something like Project 668 materialised in the form of Project 949, which was armed with the more successful Granit missile.

The ballistic missile version was redesigned in 1963-64 to carry sixteen R-27 rather than twelve R-21 missiles and, moreover, to carry them inside the pressure hull, as in contemporary Western SSBNs. It became the Project 667A. The redesign seems to have been prompted by compromise of Western submarine construction or missile guidance technology.

Like earlier strategic submarines, these ships had 40cm self-defence (anti-escort) weapons, in their case in bow tubes flanking the four large caliber bow tubes.

A recent Russian account describes this design as highly automated for its one, with automatic prelaunch preparation of missiles and a computer to provide firing data. The modernised Project 667AU (which fired the R-27U missile) introduced an inertial navigation system with astrocorrection.

Modernizations

1975, K-258;1977, K-245; 1980, K-214; 1984, K-241; 1985, K-137 Leninets; 1992, K-444 - under Project 627AU: with data as above

1978, K-140 - under Project 667AM: - 16 R-27 SLBM, MVU-100 Tucha CCS; + 12 R-31 SLBM (12 3M17), Almaz-AM CCS; 7760/9600t, 132.0x11.7x8.00m, compl. 120

1983, KS-403 - under Project 667AK: unarmed; 8675/9190t, 151.8x11.7x7.90m, 16.5/27kts, compl. 120; MGK-500 Skat, MG-509 Radian sonars

1984, K-408; 1985, K-26, K-253; 1987, K-423; 1991, K-395 - under Project 667AT: lengthened and beamed, 8888/11400t, 141.7x12.8x7.80m, 15.3/25kts, compl. 115, armament consisted of SAM Strela-2M (6), 8 - 533 TT (amidships, 32 Granat 3M10 CruM), 6 - 533 TT (bow, 14, incl. URPK-6 Vodopad-PL ASuM (83R, 84R)), sensors consisted of RLK-101 Albatros radar, MGK-400 Rubikon, MG-519 Arfa, MG-512 Vint sonars, Zaliv-P ECM suite, MVU-132AT Omnibus-AT CCS

1990, K-420 - under Project 667M: lengthened and beamed, 10500/13600t, 152.0x14.7x8.70m, 15/25kts, compl. 112; armament consisted of 12 x 1 P-750 Meteorit-M SSM (12 3M25), 4 - 533 TT (bow, 12 incl. URPK-6 Vodopad-PL ASuM (83R, 84R)), sensors consisted of MRK-50 Kaskad radar, MGK-400 Rubikon, MG-519 Arfa, MG-512 Vint sonars, Zaliv-P ECM suite, MVU-100 Tucha CCS

1990, KS-411: unarmed; 9408/10950t, 162.5x11.7x8.30m, 13.2/21.9kts, compl. 106, bow- and stern thrusters; can carry Project 18511 midget submarine

1996, KS-403 - under Project 09780: - MGK-500 Skat sonar; + Irtysh-Amfora sonar

Naval service

K-219 sank 6.10.1986 in Atlantic (500nm E of Bermuda Islands) by cause of faulty crew action after flooding of a missile tube and followed explosion of a missile.
