B-90 SAROV experimental submarine (project 20120) (2008)





B- Sarov 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Б-90 Саров [B-90 Sarov] 442 137 Krasnoye Sormovo, Nizhniy Novgorod / Sevmashpredpriyatiye, Severodvinsk 15.9.1988 14.12.2007 7.8.2008 in service (2019)


Technical data


Displacement standard, t



Displacement normal, t

2300 / 3950

Length, m

98.5

Breadth, m

10.6

Draught, m

7.00

No of shafts

1

Machinery

1 diesel-generator / AIP system (Kristall-27) / 1 electric motor

Power, h. p.
Max speed, kts

10 / 17

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 large horizontal launcher (1 Status-6 submarine drone), 2 - 533 TT (bow)

Electronic equipment

MRK-50 Kaskad radar, sonars, CCS

Complement

52

Diving depth operational, m

300



Standard scale images


<i>B-90 Sarov </i>2010
B-90 Sarov 2010


Graphics

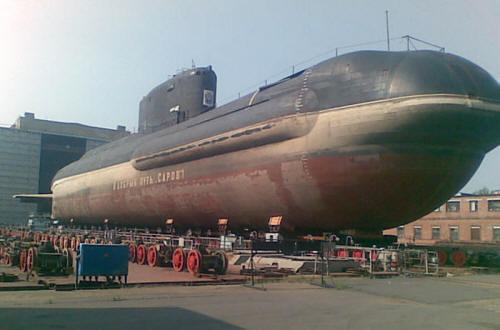

<i>B- Sarov </i>2007
B- Sarov 2007

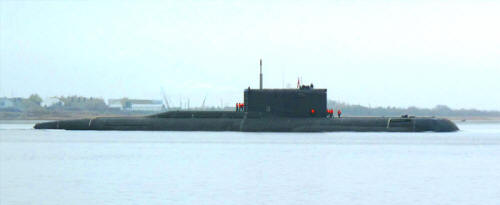

<i>B-90 Sarov </i>2009
B-90 Sarov 2009


Project history

Test platform for new weapons, sensors and systems. Presumably submarine was laid down as test carrier for Skif system (bottom-based autonomus torpedo-missile systems, remotely or autonomously controlled), Skif's containers would be launched from submerged submarine onto the sea bottom. In 1996 building was suspended at 40% complete level, but 2001 building was restarted (in Severodvinsk from 2003), officially submarine was laid down again 19.3.2006. This time submarine presumably is used for experiments with new system of autonomous attack nuclear-powered strategic-range submarine robots named 'Status-6'. These robots can carry nuclear warhead up to 100Mt and/or also usual torpedoes and mines for naval combat operations, becoming really superfast superdeep combat submarines with no crew. Presumably Status-6 drone has 10000nm range with 55kts speed at 1000m deep, becoming absolutely unattainable for all modern and future anti-submarine weapons, except nuclear deep charges.

Modernizations

Not known.

Naval service

No significant events.
