B-443 submarines (project 641B) (1973 - 1982)





Project 641B 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Б-443 [B-443]   101 Krasnoye Sormovo, Gorkiy 17.9.1971 2.9.1972 31.12.1973 stricken 8.1995
Б-474 [B-474]   102 Krasnoye Sormovo, Gorkiy 27.7.1973 2.9.1974 31.12.1974 stricken 10.1995
Б-437 [B-437], 6.1980- Б-437 Магнитогорский комсомолец [B-437 Magnitogorskiy Komsomolets], 2.1992- Б-437 [B-437]   103 Krasnoye Sormovo, Gorkiy 4.12.1973 23.10.1974 30.9.1975 stricken 11.2001
Б-498 [B-498]   104 Krasnoye Sormovo, Gorkiy 23.10.1974 30.7.1975 31.12.1975 stricken 8.1995
Б-515 [B-515]   105 Krasnoye Sormovo, Gorkiy 30.3.1975 29.4.1976 29.12.1976 stricken 4.2002
Б-519 [B-519]   111 Krasnoye Sormovo, Gorkiy 4.12.1975 10.9.1976 22.12.1976 stricken 8.1995
Б-290 [B-290]   112 Krasnoye Sormovo, Gorkiy 5.8.1976 25.4.1977 25.9.1977 stricken 8.1995
Б-303 [B-303]   113 Krasnoye Sormovo, Gorkiy 5.12.1976 6.9.1977 30.12.1977 stricken 8.1995
Б-146 [B-146], 4.1991- Б-146 Комсомолец Казахстана [B-146 Komsomolets Kazakhstana], 2.1992- Б-146 [B-146]   114 Krasnoye Sormovo, Gorkiy 5.9.1977 8.5.1978 30.9.1978 stricken 1.1998
Б-546 [B-546]   115 Krasnoye Sormovo, Gorkiy 8.2.1978 27.9.1978 29.12.1978 stricken 5.2002
Б-30 [B-30]   121 Krasnoye Sormovo, Gorkiy 17.10.1978 12.5.1979 28.9.1979 stricken 2001
Б-215 [B-215]   122 Krasnoye Sormovo, Gorkiy 27.1.1979 9.10.1979 30.12.1979 stricken 10.1997
Б-396 [B-396], 5.1986- Б-396 Новосибирский комсомолец [B-396 Novosibirskiy Komsomolets], 4.1992- Б-396 [B-396]   123 Krasnoye Sormovo, Gorkiy 31.8.1979 17.5.1980 30.9.1980 stricken 1.1998
Б-307 [B-307]   124 Krasnoye Sormovo, Gorkiy 7.3.1980 30.9.1980 30.12.1980 museum 5.2001
Б-319 [B-319], 12.1988- Б-319 Комсомолец Чувашии [B-319 Komsomolets Chuvashii], 2.1992- Б-319 [B-319]   125 Krasnoye Sormovo, Gorkiy 25.2.1980 30.5.1981 25.9.1981 stricken 1.1998
Б-225 [B-225]   131 Krasnoye Sormovo, Gorkiy 8.1.1981 20.8.1981 25.12.1981 stricken 1.1998
Б-312 [B-312]   132 Krasnoye Sormovo, Gorkiy 10.9.1981 22.5.1982 20.9.1982 stricken 3.1998
Б-380 Горьковский комсомолец [B-380 Gorkovskiy Komsomolets], 2.1992- Б-380 [B-380], 2008- Б-380 Святой Князь Георгий [B-380 Sviatoy Knyaz' Georgiy]   133 Krasnoye Sormovo, Gorkiy 15.10.1981 25.9.1982 26.12.1982 stricken 2016


Technical data


Displacement standard, t



Displacement normal, t

2640 / 3546

Length, m

90.2

Breadth, m

8.60

Draught, m

5.70

No of shafts

3

Machinery

3 2D42 diesels / 1 PG-102 + 2 PG-101 electric motors

Power, h. p.

5700 / 5400 (2700 + 2x1350)

Max speed, kts

14 / 15.5

Fuel, t

diesel oil

Endurance, nm(kts)

14000(7) / 450(2.5)

Armament

6 - 533 TT (bow, 24 or mines)

Electronic equipment

MRK-50 Kaskad radar, MGK-400 Rubikon sonar suite, MRP-25 ECM suite, MVU-110 Uzel CCS

Complement

81

Diving depth operational, m

240



Standard scale images

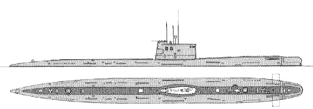

<i>B-443 </i>1980
B-443 1980


Graphics

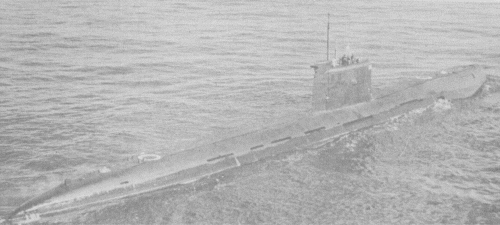

Project 641B 1978
Project 641B 1978

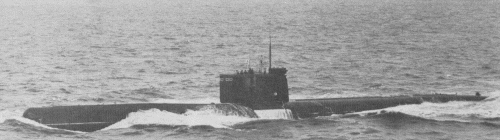

Project 641B 1976
Project 641B 1976


Project history

This ASW submarine was improvised from Project 641 components and surplus Project 651 hull sections (to gain about 50% more internal volume; hull diameter grew from about 7.8m to 9m). The added volume was needed to accommodate the big new sonar and plotting facilities to support new wire-guided torpedoes. There were three sonars in all: presumably the bow array, a sonar intercept set, and an underwater communications set.

Modernizations

None.

Naval service

No significant events.
