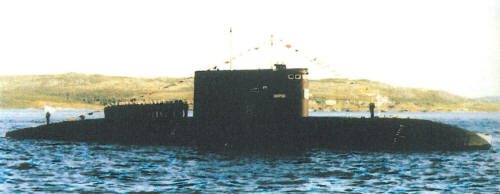

B-177 Lipetsk 2002

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
Б-248 [B-248]		451	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	16.3.1980	12.9.1980	31.12.1980	stricken 5.2001	Project 877
Б-260 [B-260], 3.2006- Б-260 Чита [B-260 Chita]	504	452	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	22.2.1981	23.8.1981	30.12.1981	reserve (2019)	Project 877
Б-227 [B-227], 7.2008- Б-227 Выборг [B-227 Vyborg]	469	453	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	23.2.1982	16.9.1982	23.2.1983	preserved 2018	Project 877
Б-229 [B-229]		464	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	23.2.1983	15.7.1983	30.10.1983	stricken 4.2002	Project 877
Б-404 [B-404]		465	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	7.5.1983	24.9.1983	30.12.1983	stricken 4.2002	Project 877
Б-405 [B-405], 7.1990- Б-405 Тюменский комсомолец [B-405 Tyumenskiy Komsomolets], 2.1992- Б-405 [B-405]		466	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	20.4.1984	21.9.1984	30.12.1984	stricken 4.2002	Project 877
Б-470 [B-470]		467	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	6.5.1985	27.8.1985	30.12.1985	stricken 6.2005	Project 877
Б-439 [B-439]		468	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	4.4.1986	31.7.1986	30.12.1986	stricken 12.2005	Project 877
Б-445 [B-445], 2007- Б-445 Святитель Николай Чудотворец [Sviatitel' Nikolay Chudotvorets]	531	469	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	21.3.1987	26.9.1987	30.1.1988	reserve (2019)	Project 877
Б-394 Комсомолец Таджикистана [B-394 Komsomolets Tadzhikistana], 2.1992- Б-394 [B-394], 2014- Б-394 Нурлат [B-394 Nurlat]	522	470	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	15.4.1988	30.9.1988	30.12.1988	in service (2019)	Project 877
Б-464 [B-464], 11.2003- Б-464 Усть-Камчатск [B-464 Ust'-Kamchatsk]	547	471	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	26.5.1989	23.9.1989	30.1.1990	in service (2019)	Project 877
Б-494 [B-494], 11.2003- Б-494 Усть-Большерецк [B-494 Ust'-Bolsheretsk]	549	472	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	5.5.1990	4.10.1990	28.12.1990	in service (2019)	Project 877
Б-187 [B-187], 5.2015- Б-187 Комсомольск-на-Амуре [B-187 Komsomolsk-na-Amure]	529	473	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	7.5.1991	5.10.1991	30.12.1991	in service (2019)	Project 877
Б-190 [B-190], 12.2007- Б-190 Краснокаменск [B-190 Krasnokamensk]	521	474	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	8.5.1992	25.9.1992	30.12.1992	in service (2019)	Project 877
Б-345 [B-345], 2009- Б-345 Могоча [B-345 Mogocha]	507	475	Leninskiy Komsomol SYd, Komsomolsk-on-Amur	22.4.1993	6.10.1993	22.1.1994	in service (2019)	Project 877
Б-401 [B-401], 7.1998- Б-401 Новосибирск [B-401 Novosibirsk]		601	Krasnoye Sormovo, Gorkiy	6.10.1982	5.3.1984	30.9.1984	stricken 2018	Project 877
Б-402 [B-402], 3.1997- Б-402 Вологда [B-402 Vologda]		602	Krasnoye Sormovo, Gorkiy	24.8.1983	23.9.1984	30.12.1984	stricken 2016	Project 877
Б-808 [B-808], 9.1999- Б-808 Ярославль [B-808 Yaroslavl']	443	605	Krasnoye Sormovo, Gorkiy	29.9.1986	30.7.1988	27.12.1988	in service (2019)	Project 877
Б-800 [B-800], 7.1990- Б-800 Вологодский комсомолец [B-800 Vologodskiy Komsomolets], 2.1992- Б-800 [B-800], 5.2003- Б-800 Калуга [B-800 Kaluga]	468	606	Krasnoye Sormovo, Gorkiy	5.3.1987	7.5.1989	30.9.1989	in service (2019)	Project 877
Б-459 [B-459], 8.1997- Б-459 Владикавказ [B-459 Vladikavkaz]	431	608	Krasnoye Sormovo, Gorkiy	25.2.1988	29.4.1990	28.9.1990	in service (2019)	Project 877
Б-471 [B-471], 6.2001- Б-471 Магнитогорск [B-471 Magnitogorsk]	409	609	Krasnoye Sormovo, Gorkiy	26.10.1988	22.9.1990	28.12.1990	in service (2019)	Project 877
Б-177 [B-177], 12.2000- Б-177 Липецк [B-177 Lipetsk]	429	610	Krasnoye Sormovo, Gorkiy	3.11.1989	27.7.1991	26.12.1991	in service (2019)	Project 877
Б-351 [B-351]		603	Krasnoye Sormovo, Gorkiy	29.9.1984	7.6.1985	29.11.1985	to Poland 6.1986 (Orzeł)	Project 877E
Б-871 [B-871], 1.2004- Б-871 Алроса [B-871 Alrosa]	554	607	Krasnoye Sormovo, Gorkiy	17.5.1988	10.9.1989	30.11.1990	in service (2019)	Project 877V
Б-801 [B-801]		401	Krasnoye Sormovo, Gorkiy	6.4.1984	20.9.1985	29.9.1985	to Romania 9.1986 (Delfinul)	Project 877EKM
Б-806 [B-806], 2010- Б-806 Дмитров [B-806 Dmitrov]	487	403	Krasnoye Sormovo, Gorkiy	15.10.1984	30.4.1986	25.9.1986	in service (2019)	Project 877EKM
Б-861 [B-861]		404	Krasnoye Sormovo, Gorkiy	14.2.1985	26.7.1986	29.11.1986	to Algeria 12.1986 (رئس حدج مبارك [Rais Hadj Mubarek])	Project 877EKM
Б-890 [B-890]		405	Krasnoye Sormovo, Gorkiy	19.6.1985	18.4.1987	2.9.1987	to India 9.1987 (सिंधुराज [Sindhuraj])	Project 877EKM
Б-386 [B-386]		411	Krasnoye Sormovo, Gorkiy	26.7.1986	10.7.1987	5.11.1987	to Algeria 12.1987 (الحدج سليماني [El Hadj Slimane])	Project 877EKM
Б-803 [B-803]		412	Krasnoye Sormovo, Gorkiy	15.5.1986	15.4.1988	15.8.1988	to India 12.1988 (सिंधुरत्न [Sindhuratna])	Project 877EKM
Б-185 [B-185]		413	Krasonoye Sormovo, Nizhniy Novgorod	23.3.1989	31.5.1994	15.11.1994	to China 12.1994 (长城 364 [Changcheng 364])	Project 877EKM
Б-188 [B-188]		414	Krasonoye Sormovo, Nizhniy Novgorod	18.11.1990	31.3.1995	15.8.1995	to China 9.1995 (长城 365 [Changcheng 365])	Project 877EKM
Б-888 [B-888]		01307	Admiralty Yds, Leningrad	29.5.1983	29.7.1985	25.11.1985	to India 4.1986 (सिंधुघोष [Sindhugosh])	Project 877EKM
Б-898 [B-898]		01309	Admiralty Yds, Leningrad	1.4.1986	27.7.1986	25.11.1986	to India 6.1987 (सिंधुध्वज [Sindhudhvaj])	Project 877EKM
Б-860 [B-860]		01311	Admiralty Yds, Leningrad	15.5.1987	13.9.1987	25.12.1987	to India 8.1988 (सिंधुवीर [Sindhuvir])	Project 877EKM
Б-804 [B-804]		01313	Admiralty Yds, Leningrad	20.4.1988	16.8.1988	29.11.1988	to India 2.1989 (सिंधुकेसरी [Sindhukesari])	Project 877EKM
Б-468 [B-468]		01315	Admiralty Yds, Leningrad	5.4.1989	26.8.1989	30.10.1989	to India 1.1990 (सिंधुकीर्ति [Sindhukirti])	Project 877EKM
Б-597 [B-597]		01317	Admiralty Yds, Leningrad	6.4.1990	27.7.1990	27.10.1990	to India 3.1991 (सिंधुविजय [Sindhuvijay])	Project 877EKM
Б-175 [B-175]		01319	Admiralty Yds, Leningrad	5.4.1991	25.9.1991	25.12.1991	to Iran 11.1992 (طارق [Tareq])	Project 877EKM
Б-224 [B-224]		01321	Admiralty Yds, St. Petersburg	30.4.1992	16.10.1992	31.12.1992	to Iran 6.1993 (نور [Noor])	Project 877EKM
Б-220 [B-220]		01323	Admiralty Yds, St. Petersburg	5.2.1992	12.7.1994	2.9.1996	to Iran 11.1996 (یونس [Yunes])	Project 877EKM
Б-582 [B-582]		01325	Admiralty Yds, St. Petersburg	16.2.1995	26.6.1997	2.10.1997	to India 12.1997 (सिंधुरक्षक [Sindhurakshak])	Project 877EKM
Б-477 [B-477]		01618	Admiralty Yds, St. Petersburg	12.12.1998	14.10.1999	16.5.2000	to India 7.2000 (सिंधुराष्ट्र [Sindhushastra])	Project 08773

Technical data

Displacement standard, t
Displacement normal, t	2325 / 3075
Length, m	72.6
Breadth, m	9.90 hull 12.8 max
Draught, m	6.60
No of shafts	1 pr. 877V: 1 waterjet
Machinery	451, 452: 2 4DL-42 diesel-generators, 1 PG-141 electric motor / 1 PG-142 electric motor for crouching others: 2 4DL-42M diesel-generators, 1 PG-141 electric motor / 1 PG-142 electric motor for crouching
Power, h. p.	451, 452: 2720 / 5500 / 150 others: 4080 / 5500 / 150
Max speed, kts	10.7 / 18
Fuel, t	diesel oil
Endurance, nm(kts)	6880(7) / 400(3)
Armament	pr. 877, 877V, 877E, EKM: 6 - 533 TT (bow, 18 or 24 mines), 1 x 8 Igla-1 SAM (8 9M313) pr. 08773: 6 - 533 TT (bow, 18, including Club-S SSM (3M-54E), or 24 mines)
Electronic equipment	pr. 877, 877V: MRK-50 Kaskad radar, MGK-400 Rubikon sonar suite, MG-519 Arfa, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25 ECM suite, MVU-110 Uzel CCS pr. 877E, 877EKM, 08773: MRK-50E Kaskad radar, MGK-400E Rubikon-E sonar suite, MG-519E Arfa-E, MG-512 Vint, MG-53, MG-553 Shkert sonars, MRP-25E ECM suite, MVU-110 Uzel CCS
Complement	60
Diving depth operational, m	240

Standard scale images

Graphics

Project history Designed by Rubin design bureau (ex-TsKB-18) as two parallel projects, 877 for Soviet Navy and 877E (Warshawianka) for export, particularly to Warsaw Pact allies. This submar

Designed by Rubin design bureau (ex-TsKB-18) as two parallel projects, 877 for Soviet Navy and 877E (Warshawianka) for export, particularly to Warsaw Pact allies. This submarine was designed specifically to exploit the new 'Second Captain' automation technology, in which a single central computer would perform both fire control and ship control functions. For example, fire control data were entered automatically, rather than manually as in the 'Leningrad' system of the preceding Project 641. Diving and machinery control were also automated. Most functions are controlled from a single central panel. Manning could therefore be reduced drastically, to a total of 52-60 on a 3-watch basis.

Silencing (including magnetic and presumably UEP) was emphasised. The diesel-generators are suspended (rafted). The hull has an anti-sonar coating. Flooding ports were eliminated from the forebody of the submarine and the fore planes were moved aft to reduce noise, particularly noise interfering with the bow sonar.

The design emphasised underwater performance; it was not a submersible like Project 641, which would spend much of its lime surfaced. Therefore Rubin adopted an Albacore hull and accepted limited surface speed. This hull form was probably also attractive because it could meet die requirements of both types of Soviet export customer: shallow-water navies requiring short hulls, and deep-water navies requiring considerable internal volume. Previous diesel submarines had been single-decked, and therefore could add usable space only by adding length. As in other Russian designs, this one is compartmented for survivability; Rubin claims that it can remain afloat (on the surface) with one compartment and two adjacent main ballast tanks flooded. Maximum depth is 300m; periscope depth is 17.5m.

The Protect 877EM combat system is built around a general-purpose computer (MVU-110EM) which receives sonar data and transmits torpedo settings. Torpedoes can also be reloaded from the central control station (using a Murena panel to control an automatic rapid loader); they can be launched at any depth, presumably by water slug. The computer can automatically track and engage two targets using wire-guided torpedoes (only two tubes are fitted to fire such weapons); three more targets can be tracked manually. The central computer can also hold the submarine on an ordered course, and can solve navigational problems (eg, presumably, closest point of approach).

Project 877 was the first Soviet submarine to use true diesel-electric propulsion. It was probably adopted because it simplified silencing and because it allowed two compact diesels to drive the single screw that was hydrodynamically preferable. The batteries were a new high-capacity type (9700kWh each). The propeller shaft can be turned by a creep motor. There are also two water channels let into the hull aft. Small low-speed propellers in them can be used in an emergency or for manoeuvering.

Submarines of Project 877 can fire 53-65K, 53-65V, 53-65VA steam-gas driven, SET-53M, TEST-71M and USET-80 electric driven torpedoes and MG-74 Korund-2 torpedo decoys. Project 877 EKM have 53-65KE and TEST-71ME torpedoes, Project 08773 can also fire Club-S SSMs. All submarines can carry 24 DM-1 mines instead of torpedoes.

Modernizations

2010, B-187; 2013, B-800 Kaluga: - MGK-400 Rubikon sonar suite, MVU-110 Uzel CCS; + MGK-400V1 Rubikon sonar suite, MVU-110EM Uzel CCS.

Naval service

No significant events.
