T-351 minesweepers (projects 253L, 253L-P) (1943 - 1946)





T-442

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
T-351     189 Yd, Leningrad spring 1943 summer 1943 late 1943 auxiliary 1954 type MT-1
T-352     189 Yd, Leningrad 6.1943 early 1944 5.1944 auxiliary 1954 type MT-1
T-353     189 Yd, Leningrad 8.1943 early 1944 5.1944 sunk 8.9.1944 type MT-1
T-354     189 Yd, Leningrad 8.1943 early 1944 5.1944 auxiliary 1953 type MT-1
T-355     189 Yd, Leningrad 10.1943 spring 1944 6.1944 sunk 20.8.1945 type MT-1
T-356     189 Yd, Leningrad 10.1943 spring 1944 6.1944 auxiliary 1954 type MT-1
T-357     189 Yd, Leningrad 11.1943 summer 1944 10.1944 sunk 12.6.1945 type MT-1
T-358     189 Yd, Leningrad 11.1943 summer 1944 10.1944 stricken 1956 type MT-1
T-359     189 Yd, Leningrad 11.1943 summer 1944 10.1944 stricken 1956 type MT-1
T-360     189 Yd, Leningrad 11.1943 summer 1944 10.1944 stricken 1956 type MT-1
T-361     189 Yd, Leningrad 12.1943 spring 1944 7.1944 stricken 1956 type MT-1
T-362     189 Yd, Leningrad 12.1943 spring 1944 7.1944 stricken 1956 type MT-1
T-363     189 Yd, Leningrad 12.1943 spring 1944 8.1944 stricken 1956 type MT-1
T-364     189 Yd, Leningrad 12.1943 spring 1944 8.1944 stricken 1956 type MT-1
T-370, 1956- Аган [Agan]     190 Yd, Leningrad summer 1943 spring 1944 7.1944 TS 1956, auxiliary 1957 type MT-1
T-371     190 Yd, Leningrad summer 1943 spring 1944 7.1944 stricken 1956 type MT-1
T-372, 1.1956- Агул [Agul]     190 Yd, Leningrad summer 1943 spring 1944 8.1944 TS 1.1956, auxiliary 12.1956 type MT-1
T-373     190 Yd, Leningrad summer 1943 spring 1944 8.1944 stricken 1956 type MT-1
T-374     190 Yd, Leningrad late 1943 summer 1944 9.1944 stricken 1956 type MT-1
T-375     190 Yd, Leningrad late 1943 summer 1944 9.1944 stricken 1956 type MT-1
T-376     190 Yd, Leningrad late 1943 summer 1944 10.1944 auxiliary 1956 type MT-1
T-377     190 Yd, Leningrad late 1943 spring 1944 10.1944 sunk 5.12.1944 type MT-1
T-378     370 Yd, Leningrad late 1943 spring 1944 7.1944 auxiliary 2.1953 type MT-1
T-379     370 Yd, Leningrad late 1943 spring 1944 8.1944 sunk 23.10.1944 type MT-1
T-380     370 Yd, Leningrad early 1944 summer 1944 10.1944 auxiliary 5.1956 type MT-1
T-381     370 Yd, Leningrad early 1944 summer 1944 12.1944 auxiliary 2.1953 type MT-1
T-382     370 Yd, Leningrad early 1944 autumn 1944 2.1945 auxiliary 2.1953 type MT-1
T-386     189 Yd, Leningrad 2.1944 summer 1944 10.1944 stricken 1956 type MT-1
T-387     189 Yd, Leningrad 2.1944 summer 1944 10.1944 sunk 28.11.1944 type MT-1
T-388     189 Yd, Leningrad 3.1944 autumn 1944 12.1944 stricken 1956 type MT-1
T-389     189 Yd, Leningrad 3.1944 autumn 1944 12.1944 auxiliary 1956 type MT-1
T-222     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s type MT-2
T-223     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s type MT-2
T-224     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s type MT-2
T-225     189 Yd, Leningrad late 1944 spring 1945 8.1945 to Poland 4.1946 (Albatros) type MT-2
T-226     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s type MT-2
T-227     189 Yd, Leningrad late 1944 spring 1945 8.1945 stricken late 1950s type MT-2
T-228     189 Yd, Leningrad late 1944 spring 1945 8.1945 to Poland 4.1946 (Czapla) type MT-2
T-231     189 Yd, Leningrad late 1944 spring 1945 8.1945 to Poland 4.1946 (Jaskolka) type MT-2
T-232     189 Yd, Leningrad late 1944 spring 1945 9.1945 stricken late 1950s type MT-2
T-233     189 Yd, Leningrad late 1944 spring 1945 9.1945 stricken late 1950s type MT-2
T-234     189 Yd, Leningrad late 1944 spring 1945 9.1945 auxiliary 1956 type MT-2
T-235     189 Yd, Leningrad late 1944 spring 1945 9.1945 stricken late 1950s type MT-2
T-236     189 Yd, Leningrad late 1944 spring 1945 9.1945 auxiliary 1956 type MT-2
T-237     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s type MT-2
T-238     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s type MT-2
T-239     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s type MT-2
T-240     189 Yd, Leningrad early 1945 summer 1945 10.1945 stricken late 1950s type MT-2
T-241     189 Yd, Leningrad early 1945 summer 1945 10.1945 to Poland 4.1946 (Jastrzab) type MT-2
T-242     189 Yd, Leningrad early 1945 summer 1945 12.1945 hulk 1957 type MT-2
T-243     189 Yd, Leningrad early 1945 summer 1945 12.1945 to Poland 4.1946 (Kania) type MT-2
T-244     189 Yd, Leningrad early 1945 summer 1945 12.1945 to Poland 4.1946 (Kondor) type MT-2
T-245     189 Yd, Leningrad early 1945 summer 1945 12.1945 stricken late 1950s type MT-2
T-246     189 Yd, Leningrad early 1945 summer 1945 12.1945 to Poland 4.1946 (Kormoran) type MT-2
T-247     189 Yd, Leningrad early 1945 autumn 1945 12.1945 auxiliary 1956 type MT-2
T-248     189 Yd, Leningrad early 1945 autumn 1945 12.1945 stricken late 1950s type MT-2
T-249     189 Yd, Leningrad early 1945 autumn 1945 12.1945 stricken late 1950s type MT-2
T-365     189 Yd, Leningrad spring 1944 spring 1945 6.1945 stricken late 1950s type MT-2
T-366     189 Yd, Leningrad spring 1944 spring 1945 7.1945 stricken late 1950s type MT-2
T-367     189 Yd, Leningrad summer 1944 spring 1945 7.1945 stricken late 1950s type MT-2
T-368     189 Yd, Leningrad spring 1944 spring 1945 6.1945 stricken late 1950s type MT-2
T-369     189 Yd, Leningrad summer 1944 spring 1945 7.1945 stricken late 1950s type MT-2
T-383     370 Yd, Leningrad early 1944 spring 1945 8.1945 survey vessel 1956 type MT-2
T-384     370 Yd, Leningrad early 1944 spring 1945 8.1945 stricken late 1950s type MT-2
T-385     370 Yd, Leningrad spring 1944 summer 1945 autumn 1945 auxiliary 9.1954 type MT-2
T-390     189 Yd, Leningrad 6.1944 autumn 1944 12.1944 auxiliary 1956 type MT-2
T-391     189 Yd, Leningrad 6.1944 autumn 1944 12.1944 auxiliary 1956 type MT-2
T-434     370 Yd, Leningrad early 1945 autumn 1945 11.1945 stricken late 1950s type MT-2
T-435     370 Yd, Leningrad early 1945 autumn 1945 late 1945 auxiliary 10.1955 type MT-2
T-439     370 Yd, Leningrad early 1945 autumn 1945 late 1945 stricken late 1950s type MT-2
T-440     189 Yd, Leningrad early 1945 spring 1945 6.1945 test ship 1956 type MT-2
T-441     189 Yd, Leningrad early 1945 spring 1945 6.1945 stricken late 1950s type MT-2
T-459     189 Yd, Leningrad 4.1944 autumn 1944 11.1944 auxiliary 1956 type MT-2
T-460     189 Yd, Leningrad 4.1944 autumn 1944 11.1944 auxiliary 1956 type MT-2
T-461     190 Yd, Leningrad early 1945 spring 1945 6.1945 hulk 1956 type MT-2
T-462     190 Yd, Leningrad early 1945 spring 1945 6.1945 stricken late 1950s type MT-2
T-463     190 Yd, Leningrad early 1945 spring 1945 7.1945 stricken late 1950s type MT-2
T-464     190 Yd, Leningrad early 1945 spring 1945 7.1945 stricken late 1950s type MT-2
T-465     190 Yd, Leningrad early 1945 autumn 1945 late 1945 to Poland 4.1946 (Krogulec) type MT-2
T-466     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s type MT-2
T-467     190 Yd, Leningrad early 1945 autumn 1945 late 1945 to Poland 4.1946 (Orlik) type MT-2
T-468     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s type MT-2
T-469     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s type MT-2
T-470     190 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s type MT-2
T-471     190 Yd, Leningrad early 1945 summer 1945 early 1946 stricken late 1950s type MT-2
T-472     190 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s type MT-2
T-473     190 Yd, Leningrad early 1945 summer 1945 late 1945 auxiliary 1956 type MT-2
T-474     190 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s type MT-2
T-475     190 Yd, Leningrad early 1945 summer 1945 late 1945 auxiliary 1956 type MT-2
T-476     190 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s type MT-2
T-477     363 Yd, Leningrad early 1945 summer 1945 autumn 1945 stricken late 1950s type MT-2
T-478     363 Yd, Leningrad early 1945 summer 1945 late 1945 stricken late 1950s type MT-2
T-479     363 Yd, Leningrad early 1945 spring 1945 summer 1945 stricken late 1950s type MT-2


Technical data


Displacement standard, t

pr. 253L: 113

pr. 253L-P: 128

Displacement full, t

pr. 253L: 127

pr. 253L-P: 143

Length, m

38.0

Breadth, m

pr. 253L: 5.70

pr. 253L-P: 5.72

Draught, m

pr. 253L: 1.37

pr. 253L-P: 1.44

No of shafts

3

Machinery

3 Superior diesels

Power, h. p.

pr. 253L: 690

pr. 253L-P: 480

Max speed, kts

pr. 253L: 14

pr. 253L-P: 12.5

Fuel, t

pr. 253L: diesel oil 10

pr. 253L-P: diesel oil 12

Endurance, nm(kts)

pr. 253L: 2500(8.6)

pr. 253L-P: 3100(6.2)

Armament

pr. 253L: 2 x 1 - 45/65 21KM, 2 x 1 - 12.7/79, 12 mines, OShT-1, KPT mechanical, KEMT-2 magnetic, BAT-2 acoustic minesweeping gear, 2 DCR (12), PEMT magnetic minesweeping gear (in pairs)

pr. 253L-P: 2 x 1 - 45/68 21KM, 2 x 2 - 12.7/79, 12 mines, OShT-1, KPT mechanical, KEMT-2, PEMT magnetic, BAT-2 acoustic minesweeping gear, 2 DCR (12)

Electronic equipment

Tamir-10 sonar

Complement

21



Standard scale images


<i>T-390</i> 1945
T-390 1945


Graphics


<i>T-442</i>
T-442

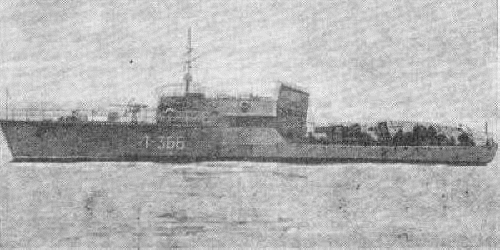

<i>T-366</i>
T-366


Project history

Designed in 1942 as "seagoing minesweeping boat" (project 253) in variants in steel and wooden hulls. However then the design has been corrected under building conditions in beleaguered Leningrad. Transition to rectilinear hull form became the main change. Project 253L ("Leningrad") was approved 14.4.1943. Because of displacement usually ships of project 253L received a nickname "hundred-tonners".    Ships concerned to two series: 34 ships of type MT-1 (pr. 253L) and 58 ships of type MT-2 (pr. 253L-P). Latter differed by more powerful generators, allowing to use magnetic sweeps (series MT-1 minesweepers could use it only in pair).

Modernizations

None.

Naval service

T-353 was lost 8.9.1944 on a mine in Narva Bay. T-377 was lost 5.12.1944 as a result of accident in Gulf of Riga. T-387 was sunk 28.11.1944 by German submarine U679 off Paldiski. T-379 23.10.1944 was sunk by unknown cause in harbour of Tallinn; subsequently she was salvaged and commissioned again as TS. T-355 and T-357 were lost on mines after war: former 20.8.1945 in Southern Baltic, latter 12.6.1945 in Danzig Bight.
