SEMION ROSHAL seagoing minesweepers (projects 266M, 02666, 266ME, 02668) (1970 - 2008)





Project 266M 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Семён Рошаль [Semion Roshal']   979 Sredne-Nevskiy, Pontonnyy     30.10.1970 stricken 12.1994 Project 266M
Контр-адмирал Першин [Kontr-admiral Pershin]   903 Sredne-Nevskiy, Pontonnyy     30.12.1970 stricken 6.1993 Project 266M
Артиллерист [Artillerist]   906 Sredne-Nevskiy, Pontonnyy     10.8.1971 stricken 3.1992 Project 266M
Минёр [Minyor]   907 Sredne-Nevskiy, Pontonnyy     30.9.1971 stricken 6.1991 Project 266M
Рулевой [Rulevoy]   908 Sredne-Nevskiy, Pontonnyy     20.10.1971 stricken 7.1994 Project 266M
Торпедист [Torpedist]   909 Sredne-Nevskiy, Pontonnyy     1972 test vessel 1990 Project 266M
Контр-адмирал Власов [Kontr-admiral Vlasov]   910 Sredne-Nevskiy, Pontonnyy     30.9.1972 stricken 12.2004 Project 266M
Контр-адмирал Хорошхин [Kontr-admiral Khoroshkhin]   916 Sredne-Nevskiy, Pontonnyy     20.10.1972 stricken 7.1994 Project 266M
Ракетчик [Raketchik]   917 Sredne-Nevskiy, Pontonnyy     1.12.1972 stricken 7.1996 Project 266M
Сигнальщик [Signalshchik]   918 Sredne-Nevskiy, Pontonnyy     10.5.1973 stricken 7.1994 Project 266M
Дмитрий Лысов [Dmitriy Lysov]   919 Sredne-Nevskiy, Pontonnyy     18.8.1973 stricken 3.1998 Project 266M
Радист [Radist], later- Харьковский комсомолец [Kharkovskiy Komsomolets], 2.1992- Радист [Radist], 8.2005- Иван Голубец [Ivan Golubets] 911 920 Sredne-Nevskiy, Pontonnyy     30.11.1973 in service (2019) Project 266M
Комендор [Komendor] 808 926 Sredne-Nevskiy, Pontonnyy     30.6.1974 in service (2019) Project 266M
Десантник [Desantnik]   927 Sredne-Nevskiy, Pontonnyy     10.6.1974 stricken 8.1995 Project 266M
Зенитчик [Zenitchik]   928 Sredne-Nevskiy, Pontonnyy     10.9.1974 to Ukraine 8.1997 (Жовтi Води [Zhovti Vody]) Project 266M
Наводчик [Navodchik], 7.1982- Курский комсомолец [Kurskiy Komsomolets], 2.1992- Наводчик [Navodchik], 7.1999- Ковровец [Kovrovets] 913 929 Sredne-Nevskiy, Pontonnyy     8.11.1974 in service (2019) Project 266M
Пулемётчик [Pulemiotchik]   938 Sredne-Nevskiy, Pontonnyy     19.6.1975 stricken 5.2001 Project 266M
Турбинист [Turbinist] 912 939 Sredne-Nevskiy, Pontonnyy     30.12.1975 in service (2019) Project 266M
Дизелист [Dizelist]   940 Sredne-Nevskiy, Pontonnyy     15.10.1975 stricken 12.1994 Project 266M
Машинист [Mashinist] 855 946 Sredne-Nevskiy, Pontonnyy   30.10.1975 30.12.1975 in service (2019) Project 266M
Моторист [Motorist], 8.1998- Новоуральск [Novouralsk]   947 Sredne-Nevskiy, Pontonnyy     30.6.1976 stricken 6.2005 Project 266M
Всеволод Вишневский [Vsevolod Vishnevskiy]   948 Sredne-Nevskiy, Pontonnyy     30.12.1976 stricken 6.1993 Project 266M
Снайпер [Snayper]   949 Sredne-Nevskiy, Pontonnyy     30.5.1976 stricken 12.1994 Project 266M
Разведчик [Razvedchik]   950 Sredne-Nevskiy, Pontonnyy     10.6.1977 to Ukraine 7.1997 (Черкаси [Cherkasy]) Project 266M
Электрик [Elektrik], 3.1985- Вице-адмирал Жуков [Vitse-admiral Zhukov]   951 Sredne-Nevskiy, Pontonnyy     30.1.1978 stricken 12.2016 Project 266M
Связист [Sviazist]   952 Sredne-Nevskiy, Pontonnyy     10.6.1978 stricken 4.2002 Project 266M
Трал [Tral]   66 Khabarovsk SY 15.7.1970   30.10.1972 stricken 6.1993 Project 266M
Параван [Paravan]   67 Khabarovsk SY 1.3.1972 12.5.1973 31.10.1973 stricken 6.1993 Project 266M
Якорь [Yakor']   68 Khabarovsk SY 1973 1974 30.9.1974 stricken 8.1995 Project 266M
Запал [Zapal]   69 Khabarovsk SY 1974 1975 30.11.1975 stricken 3.1998 Project 266M
Заряд [Zariad]   70 Khabarovsk SY 25.4.1975 24.6.1976 30.12.1976 stricken 7.1996 Project 266M
Марсовой [Marsovoy]   788 Sredne-Nevskiy, Pontonnyy     1980 to Libya 1981 (راس الجليس [Ras El Gelais]) Project 266ME
MT-...   854 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   855 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   856 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   857 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   858 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   859 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   860 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   861 Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...   862 Sredne-Nevskiy, Pontonnyy     1983 to Lybia 8.1983 (راس الأولى [Ras Al Oula]) Project 266ME
MT-...   863 Sredne-Nevskiy, Pontonnyy     1983 to Lybia 1.1984 (راس الدور [Ras Al Dawar]) Project 266ME
MT-...   864 Sredne-Nevskiy, Pontonnyy     1984 to Lybia 1985 (راس مسعد [Ras Massad]) Project 266ME
MT-76   865 Sredne-Nevskiy, Pontonnyy     1985 to Lybia 10.1986 (راس الهاني [Ras Al Hani]) Project 266ME
MT-1109   866 Sredne-Nevskiy, Pontonnyy     1986 to India 7.1986 (करवार [Karwar]) Project 266ME
MT-1112   867 Sredne-Nevskiy, Pontonnyy     1986 to India 12.1987 (कन्ननोरे [Cannanore]) Project 266ME
MT-799   868 Sredne-Nevskiy, Pontonnyy     1987 to India 10.1987 (कुड्डलोरे [Cuddalore]) Project 266ME
MT-333   869 Sredne-Nevskiy, Pontonnyy     1987 to India 12.1988 (काकीनाडा [Kakinada]) Project 266ME
MT-714   870 Sredne-Nevskiy, Pontonnyy     1988 to India 12.1988 (कोजहिकोडे [Kozhikode]) Project 266ME
MT-717   871 Sredne-Nevskiy, Pontonnyy     1988 to India 10.1989 (कोंकण [Konkan]) Project 266ME
MT-264 738 872 Sredne-Nevskiy, Pontonnyy     9/1989 in service (2019) Project 266ME
MT-265 718 873 Sredne-Nevskiy, Pontonnyy     12/1989 in service (2019) Project 266ME
MT-301   874 Sredne-Nevskiy, Pontonnyy     1991 to Ethiopia 1.1991 (...) Project 266ME
MT-303   875 Sredne-Nevskiy, Pontonnyy     1991 to South Yemen 2.1991 (201) Project 266ME
MT-712   876 Sredne-Nevskiy, Pontonnyy   1993 --- cancelled Project 266ME
Дальномерщик [Dalnomershchik]   877 Sredne-Nevskiy, Pontonnyy   1994 --- cancelled Project 266ME
Валентин Пикуль [Valentin Pikul'] 770 878 Sredne-Nevskiy, Pontonnyy 1990 31.5.2000 20.1.2001 in service (2019) Project 266ME
MT-...   880 Sredne-Nevskiy, Pontonnyy     --- cancelled Project 266ME
MT-417     Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-418     Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-461     Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-463, 1990- MT-749     Sredne-Nevskiy, Pontonnyy       to export after completion Project 266ME
MT-...     Sredne-Nevskiy, Pontonnyy     1981 to Syria 1.1985 (642) Project 266ME
Стрелок [Strelok]   953 Sredne-Nevskiy, Pontonnyy 25.3.1977 19.4.1980 30.12.1980 stricken 4.2002 Project 02666
Вице-адмирал Захарьин [Vitse-admiral Zakharyin] 908 879/801 Sredne-Nevskiy, Pontonnyy 1990 26.5.2006 18.11.2008 in service (2019) Project 02668


Technical data


Displacement standard, t

pr. 266M: 745

pr. 266ME: 750

pr. 02668: 791
Displacement full, t

pr. 266M: 800

pr. 266ME: 804

pr. 02668: 852
Length, m

61.0
Breadth, m

10.2
Draught, m

pr. 266M: 2.97

pr. 266ME: 2.30
No of shafts

2
Machinery

2 M-503B-37 diesels
Power, h. p.

5000
Max speed, kts

pr. 266M: 16.5

pr. 266ME: 16

pr. 02668: 17
Fuel, t

diesel oil
Endurance, nm(kts)

pr. 266M: 1500(12)

pr. 266ME: 3000(12)

pr. 02668: 3000(12)
Armament

pr. 266M: 2 x 4 Strela-2 SAM (16 9M32), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 266M 950: 2 x 4 Strela-2 SAM (16 9M32), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 1 - 12.7/79, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 266ME 854-871: 2 x 1 Igla-1 SAM (20 9M313), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 8 UDE mines, GKT mechanical, TEM-3 magnetic, AT-2 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 266ME 872 and later: 2 x 1 Igla-1 SAM (20 9M313), 2 x 6 - 30/54 AK-306, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 8 UDE mines, GKT mechanical, TEM-3 magnetic, AT-2 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 02666: 2 x 4 Strela-2 SAM (16 9M32), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/112 2M-3M, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, Trepang USV, Delfin-TM USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges

pr. 02668: 2 x 4 Strela-2 SAM (16 9M32), 1 x 6 - 30/54 AK-306, 2 x 1 - 14.5/89, 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (32) or 7 KMD-1000 mines, KIU-1 USV, Livadiya USV, BKT mechanical, TEM-4 magnetic, AT-3 acoustic minesweeping gear, ShZ-1 or ShZ-2 mine clearance line charges
Electronic equipment

pr. 266M, 02666: MR-302 Rubka, MR-104 Rys', 2x Don-D radars, MG-69 Lan', MG-79 Mezen' sonars

pr. 266ME 854-871: MR-212 Vaygach, MR-104 Rys' radars, MG-69 Lan', MG-79 Mezen' sonars

pr. 266ME 872 and later: MR-212 Vaygach radar, MG-69 Lan', MG-79 Mezen' or MG-89 sonars

pr. 02668: MR-302 Rubka, 2x Don-D radars, MG-69 Lan', MG-79 Mezen', Anapa-P sonars
Complement

pr. 266M: 68

pr. 266ME: 69

pr. 02668: 60


Standard scale images


<i>Semion Roshal' </i>1980
Semion Roshal' 1980
<i>Strelok </i>1982
Strelok 1982

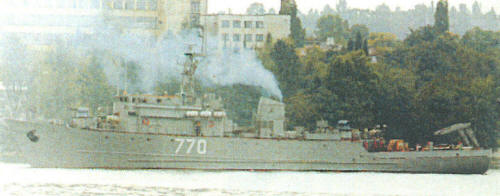

<i>Valentin Pikul' </i>2005
Valentin Pikul' 2005
<i>Vitse-admiral Zakharyin </i>2010
Vitse-admiral Zakharyin 2010
<i>Turbinist </i>2015
Turbinist 2015
<i>Vitse-admiral Zakharyin </i>2015
Vitse-admiral Zakharyin 2015
<i>Semion Roshal </i>1979
Semion Roshal 1979


Graphics


Project 266M 1976
Project 266M 1976
<i>Valentin Pikul' </i>2003
Valentin Pikul' 2003


Project history

Project 266M was an improved version of Project 266 in which the coil sweep was replaced by a deep sweep with new control gear; a sweep was provided to deal with active (rising) mines; a 3-channel broadband towed television mine detection sweep system was added; and a sonar was fitted to detect bottom mines. The new ramp stern made it easier to set and recover sweeps. The ship was air conditioned. The main engines were mounted on sound-damping beams and the quiet propellers were shrouded to further reduce sound radiation (a special cavitation monitor was installed). Adjustable protectors compensated for the electric field. The Soviets estimated that a Project 266M minesweeper was nearly 50% more effective than its predecessor Project 266.

The single Project 02666 was built with an aluminium hull. She was a test ship for a mine hunting system deployed from a deckhouse on her fantail, which replaced the standard minesweeping winch of this class.

Modernizations

1980, Dmitriy Lysov - under Project 266MUE: was modernized for training of crews for export ships.

Naval service

No significant events.
