SUKHONA minelayers (project 317) (1967 - 1970)
Project 317 1980
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Сухона [Sukhona] | 1 | Sevastopol Sea Wks | 25.3.1961 | 28.4.1962 | 25.3.1967 | cargo vessel 7.1994 | |
| Вычегда [Vychegda] | 2 | Sevastopol Sea Wks | 11.5.1963 | 1.4.1964 | 31.12.1968 | stricken 6.1993 | |
| Припять [Pripiat'] | 3 | Sevastopol Sea Wks | 8.2.1966 | 17.2.1967 | 29.12.1970 | stricken 9.1995 |
Technical data
| Displacement standard, t | 2090 |
|---|---|
| Displacement normal, t | 2472 |
| Length, m | 96.6 |
| Breadth, m | 14.0 |
| Draught, m | 4.14 |
| No of shafts | 2 Voith-Schneider |
| Machinery | 2 2D46 diesels |
| Power, h. p. | 4000 |
| Max speed, kts | 14.3 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3200(12) |
| Armament | 1 x 4 - 57/75 ZIF-75, 132 net ASW apparatuses or 48 - 154 mines (48 KMD-4-1000 or 52 GM or 80 UKSM/KSM or 90 KB/KB Krab/AGSB Blok or 154 obr. 1908/39g.) or 94 GMZ-43 mine protectors |
| Electronic equipment | MR-302 Rubka, MR-103 Bars, Don-2 radars, MG-5 sonar |
| Complement | 114 |
Standard scale images

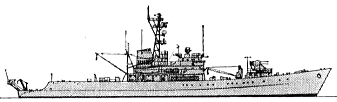

Sukhona 1979
Sukhona 1967
Graphics

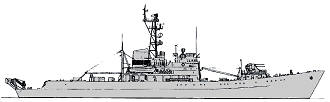

Project 317 1980
Project history
Multipurpose minelayers/netlayers. In Soviet Navy they were classified as netlayers.
Modernizations
None.
Naval service
No significant events.
