T-217 seagoing minesweepers (project 266) (1963 - 1970)

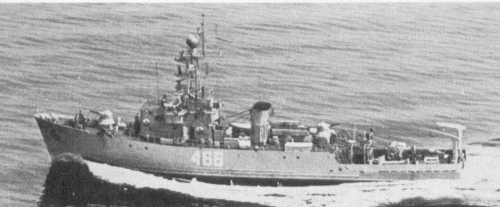

1980

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
T-217, 5.1966- MT-217, 1976- Комсомолец Белоруссии [Komsomolets Belorussii]   980 363 Yd, Pontonnyy 25.11.1960 16.8.1962 30.7.1964 stricken 4.1990 Project 266
T-159, 5.1966- MT-159   981 363 Yd, Pontonnyy     4.7.1964 stricken 4.1990 Project 266
T-62, 5.1966- MT-62   982 363 Yd, Pontonnyy     5.11.1964 stricken 4.1990 Project 266
T-205, 5.1966- MT-205, 1976- Гафель [Gafel']   983 363 Yd, Pontonnyy     11.2.1965 stricken 3.1992 Project 266
T-47, 5.1966- MT-47, 1970- Новгородский комсомолец [Novgorodskiy Komsomolets]   984 363 Yd, Pontonnyy     30.5.1965 stricken 6.1993 Project 266
T-63, 5.1966- MT-63   985 363 Yd, Pontonnyy     20.12.1965 stricken 3.1992 Project 266
Арсений Раскин [Arseniy Raskin]   990 363 Yd, Pontonnyy     1965 stricken 4.1990 Project 266
T-73, 5.1966- MT-73, 1976- Вице-адмирал Костыгов [Vitse-admiral Kostygov]   991 363 Yd, Pontonnyy     30.12.1965 stricken 3.1992 Project 266
Евгений Никонов [Evgeniy Nikonov] (ex-T-94)   992 363 Yd, Pontonnyy     21.1.1966 stricken 3.1992 Project 266
T-6, 5.1966- MT-6   993 Sredne-Nevskiy, Pontonnyy     10.5.1966 stricken 3.1992 Project 266
Александр Казарский [Aleksandr Kazarskiy]   994 Sredne-Nevskiy, Pontonnyy     30.8.1966 stricken 4.1990 Project 266
MT-72 (ex-T-72)   995 Sredne-Nevskiy, Pontonnyy     30.9.1966 stricken 6.1993 Project 266
Борис Сафонов [Boris Safonov]   996 Sredne-Nevskiy, Pontonnyy     15.11.1966 stricken 7.1994 Project 266
MT-18 (ex-T-18)   997 Sredne-Nevskiy, Pontonnyy     7.1.1967 stricken 6.1993 Project 266
MT-179 (ex-T-179)   998 Sredne-Nevskiy, Pontonnyy     18.1.1967 stricken 6.1993 Project 266
MT-163 (ex-T-163)   999 Sredne-Nevskiy, Pontonnyy     2/1967 stricken 4.1990 Project 266
MT-253 (ex-T-253)   970 Sredne-Nevskiy, Pontonnyy     31.7.1967 stricken 7.1994 Project 266
MT-209 (ex-T-209)   971 Sredne-Nevskiy, Pontonnyy     30.8.1967 stricken 3.1992 Project 266
Иван Маслов [Ivan Maslov]   972 Sredne-Nevskiy, Pontonnyy     7.10.1967 accommodation vessel 2.1993 Project 266
MT-219   973 Sredne-Nevskiy, Pontonnyy     5.1.1968 stricken 4.1990 Project 266
MT-223, 8.1968- Григорий Вакуленчук [Grigoriy Vakulenchuk]   974 Sredne-Nevskiy, Pontonnyy     12.6.1968 stricken 3.1992 Project 266
Павел Мальков [Pavel Malkov] (ex-MT-226)   975 Sredne-Nevskiy, Pontonnyy     31.12.1968 stricken 6.1993 Project 266
Иван Сивко [Ivan Sivko]   987 Sredne-Nevskiy, Pontonnyy     9.7.1969 stricken 3.1992 Project 266
Адмирал Соколов [Admiral Sokolov]   901 Sredne-Nevskiy, Pontonnyy     31.8.1969 stricken 6.1993 Project 266
Афанасий Матюшенко [Afanasiy Matyushenko]   902 Sredne-Nevskiy, Pontonnyy     1969 stricken 3.1992 Project 266
T-86, 5.1966- MT-86   50 Khabarovsk SY     23.11.1963 stricken 6.1987 Project 266
T-53, 5.1966- MT-53   51 Khabarovsk SY     31.12.1964 stricken 5.1989 Project 266
T-58, 5.1966- MT-58   52 Khabarovsk SY     30.9.1965 stricken 4.1990 Project 266
MT-27 (ex-T-27)   53 Khabarovsk SY     30.6.1966 stricken 5.1989 Project 266
MT-80 (ex-T-80)   54 Khabarovsk SY     12.12.1966 stricken 6.1991 Project 266
MT-82 (ex-T-82)   55 Khabarovsk SY     12.11.1967 stricken 3.1992 Project 266
MT-238 (ex-T-238)   56 Khabarovsk SY     13.10.1967 stricken 7.1994 Project 266
MT-242   57 Khabarovsk SY     30.9.1968 stricken 6.1993 Project 266
MT-193   58 Khabarovsk SY     31.12.1968 stricken 6.1991 Project 266
MT-200   59 Khabarovsk SY     31.12.1968 stricken 3.1992 Project 266
MT-208   60 Khabarovsk SY     15.12.1969 stricken 7.1994 Project 266
MT-263   61 Khabarovsk SY     30.9.1969 stricken 6.1993 Project 266
MT-257, 4.1984- Вице-адмирал Сабанеев [Vitse-admiral Sabaneev]   62 Khabarovsk SY     12.12.1969 stricken 6.1993 Project 266
MT-221   63 Khabarovsk SY     31.8.1970 to Vietnam 6.1981 (HQ885) Project 266
Мичман Павлов [Michman Pavlov]   64 Khabarovsk SY     31.12.1970 stricken 9.1992 Project 266
Мина [Mina]   65 Khabarovsk SY     31.12.1970 to Vietnam 1980 (HQ851) Project 266
MT-...     Sredne-Nevskiy, Pontonnyy     1968 to Egypt 1970 (أسوان [Aswan]) Project 266E
MT-...     Sredne-Nevskiy, Pontonnyy     1968 to Egypt 1970 (جيزة [Ghiza]) Project 266E
MT-...     Sredne-Nevskiy, Pontonnyy     1969 to Egypt 1971 (قنا [Qena]) Project 266E
MT-...     Sredne-Nevskiy, Pontonnyy     1969 to Egypt 1971 (سوهاج [Sohag]) Project 266E


Technical data


Displacement standard, t

519

Displacement full, t

560

Length, m

52.1

Breadth, m

9.40

Draught, m

2.65

No of shafts

2

Machinery

2 M-503B diesels

Power, h. p.

5000

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)

1500(12)

Armament

to 1969: 2 x 4 Strela-3 SAM (16 9M36), 2 x 2 - 30/71 AK-230M, 2 DCR (36), 10 mines, BKT or MT-1D or PST-1 or PPT-1 mechanical, TEM-2 magnetic, PAUT, AT-3 acoustic minesweeping gear, 2 200m HsZ-1M or ShZ-2 mine clearing line charges

after 1969: 2 x 4 Strela-3 SAM (16 9M36), 2 x 2 - 30/71 AK-230M, 2 DCR (36), 10 mines, BKT or MT-1D or PST-1 or PPT-1 mechanical, TEM-3 magnetic, PAUT, AT-3 acoustic minesweeping gear, 2 200m HsZ-1M or ShZ-2 mine clearing line charges

Electronic equipment

Rym-K, MR-104 Rys', Don radars, MG-69 Lan' sonar

Complement

56



Standard scale images


<i>T-217 </i>1963
T-217 1963
<i>Komsomolets Belorussii </i>1979
Komsomolets Belorussii 1979


Graphics


1980
1980


Project history

The preliminary design for the next ocean minesweeper, Project 266, was completed in 1957; the engineering design was approved in 1959. The main improvement, compared to previous designs, was internal protection against mine explosions. Signatures were also drastically reduced: compared to those of Project 264A, magnetic by a factor of 40, electric (UEP) by a factor of 10-15, acoustic by a factor 3-4, and hydrodynamic (pressure) by 20 to 30%. The hull was built of low-magnetic steel and an automatic control adjusted the degaussing field for, eg, eddy currents generated in the hull as the ship rolled. The design used slow-turning quite propellers as well as rubber damping materials on machinery foundations. Project 266 had special electro-optical sights to detect floating mines.

Project 266 was designed to employ new sweeps, to deal with influence mines at depths from 25 to 150m. The ship also had a capacity to take extra sweeps on board (eg, net sweeps, bottom sweeps). A recent design history mentions automated operation und remote control of sweeps, guns, engines and other equipment.

The main gap in the design was the absence of a sonar to detect bottom mines.

Modernizations

1969, all: - TEM-2 magnetic sweeping gear; + TEM-3 magnetic sweeping gear

Naval service

No significant events.
