... landing craft (project T-4/T-4M) (1957 - 2010)





T-4 1995

Ships


Name No Yard No Builder Laid down Launched Comp Fate
ПСКА-... [PSKA-...]   218 Petrozavodsk SY     1967
ПСКА-... [PSKA-...]   2925 Petrozavodsk SY     1976
ПСКА-... [PSKA-...]   2926 Petrozavodsk SY     1976
ПСКА-754 [PSKA-754]   4055 Khabarovsk SY     1982 in service (2019)
ПСКА-... [PSKA-...]   4059 Khabarovsk SY
ПСКА-756 [PSKA-756]   4066 Khabarovsk SY     1984 stricken 2010
ПСКА-757 [PSKA-757]   4073 Khabarovsk SY     1985 stricken 2010
ПСКА-758 [PSKA-758]   4078 Khabarovsk SY     1986 stricken 2018
ПСКА-760 [PSKA-760]   4094 Khabarovsk SY     1989 stricken 2010
ПСКА-762 [PSKA-762]   4102 Khabarovsk SY     2001 in service (2019)
T-141
T-148     Khabarovsk SY     1970
T-178
T-201


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate ПСКА-... [PSKA-...]   218 Petrozavodsk SY     1967   ПСКА-... [PSKA-...]   2925 Petrozavodsk SY     1976   ПСКА-... [PSKA-...]   2926 Petrozavodsk SY     1976   ПСКА-754 [PSKA-754]   4055 Khabarovsk SY     1982 in service (2019) ПСКА-... [PSKA-...]   4059 Khabarovsk SY         ПСКА-756 [PSKA-756]   4066 Khabarovsk SY     1984 stricken 2010 ПСКА-757 [PSKA-757]   4073 Khabarovsk SY     1985 stricken 2010 ПСКА-758 [PSKA-758]   4078 Khabarovsk SY     1986 stricken 2018 ПСКА-760 [PSKA-760]   4094 Khabarovsk SY     1989 stricken 2010 ПСКА-762 [PSKA-762]   4102 Khabarovsk SY     2001 in service (2019) T-141               T-148     Khabarovsk SY     1970   T-178               T-201

Technical data


Displacement standard, t

56

Displacement normal, t

118

Length, m

T-4: 19.1

T-4M: 21.0

Breadth, m

T-4: 5.50

T-4M: 5.56

Draught, m

T-4: 1.22

T-4M: 1.55

No of shafts

2

Machinery

T-4: 2 3D6 diesels

T-4M: 2 3D12A diesels

Power, h. p.

T-4: 300

T-4M: 600

Max speed, kts

T-4: 8.6

T-4M: 10

Fuel, t

diesel oil

Endurance, nm(kts)

270(8)

Armament

none

Military load

T-4: 1 medium tank or 40 t of cargo

T-4M: 1 medium tank or 50 t of cargo

Complement

T-4: 4

T-4M: 5



Graphics

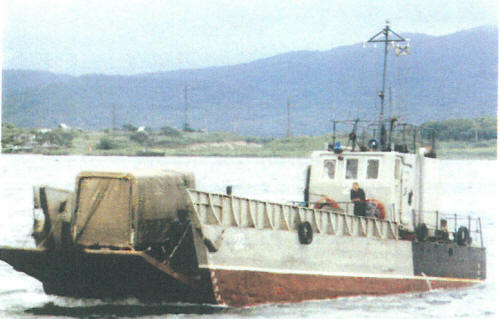

T-4 1995
T-4 1995


Project history

LCM boats built for Board Guard and Navy, successors of A-3. Full number of boats used as landing is unknown (also many boats served as workboats, tugs, cargo carriers etc). Built in Leningrad (5 Yd, 2 T-4 in 1957), Petrozavodsk (T-4), Khabarovsk (T-4, T-4M), Liepaja (29 Yd, T-4M), Tallin (7 Yd, 36 T-4 since 1968), Blagoveshchensk (T-4M).

Modernizations

None.

Naval service

No significant events.
