MDK-1 small landing ships (project 106) (1963 - 1966)





Project 106 1971

Ships


Name No Yard No Builder Laid down Launched Comp Fate
МДК-1 [MDK-1]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965 stricken 1980s-1990s
МДК-2 [MDK-2]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s
МДК-11 [MDK-11]     Tuapse SY     1963 stricken 1980s-1990s
МДК-13 [MDK-13]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s
МДК-20 [MDK-20]   5 Kominterna SY, Kherson     1963 stricken 1979
МДК-21 [MDK-21]   2 Kominterna SY, Kherson 23.3.1963 26.7.1963 30.10.1963 stricken 5.1974
МДК-22 [MDK-22]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s
МДК-23 [MDK-23]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     1.1964 stricken 6.1993
МДК-28 [MDK-28]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     1.1965 stricken 6.1991
МДК-29 [MDK-29]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     1.1964 stricken 7.1994
МДК-30 [MDK-30]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     12.1966 stricken 8.1995
МДК-55 [MDK-55]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s
МДК-57 [MDK-57]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s
МДК-59 [MDK-59]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s
МДК-759 [MDK-759] (ex-КСВ-759 [KSV-759], ex-ПОК-759 [POK-759])     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     // 1977 stricken 1980s-1990s


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate МДК-1 [MDK-1]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy     1965 stricken 1980s-1990s МДК-2 [MDK-2]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s МДК-11 [MDK-11]     Tuapse SY     1963 stricken 1980s-1990s МДК-13 [MDK-13]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s МДК-20 [MDK-20]   5 Kominterna SY, Kherson     1963 stricken 1979 МДК-21 [MDK-21]   2 Kominterna SY, Kherson 23.3.1963 26.7.1963 30.10.1963 stricken 5.1974 МДК-22 [MDK-22]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s МДК-23 [MDK-23]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     1.1964 stricken 6.1993 МДК-28 [MDK-28]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     1.1965 stricken 6.1991 МДК-29 [MDK-29]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     1.1964 stricken 7.1994 МДК-30 [MDK-30]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     12.1966 stricken 8.1995 МДК-55 [MDK-55]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s МДК-57 [MDK-57]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s МДК-59 [MDK-59]     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY       stricken 1980s-1990s МДК-759 [MDK-759] (ex-КСВ-759 [KSV-759], ex-ПОК-759 [POK-759])     40-letiya godovshchiny Oktyabrya, Oktyabrskiy or Tuapse SY or Kominterna SY, Kherson or Khabarovsk SY or Nikolayevsk-on-Amur SY     // 1977 stricken 1980s-1990s

Technical data


Displacement standard, t

258
Displacement normal, t

534
Length, m

48.3
Breadth, m

pr. 106: 6.51

pr. 106U: 8.50
Draught, m

pr. 106: 2.00

pr. 106U: 2.03
No of shafts

2
Machinery

2 3D12 diesels
Power, h. p.

600
Max speed, kts

10.5
Fuel, t

diesel oil
Endurance, nm(kts)

1200(10)
Armament

none
Military load

2 medium tanks or 150 t of cargo
Complement

12


Standard scale images

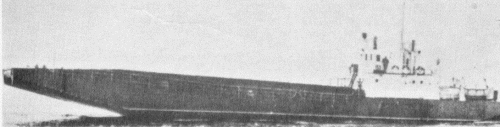

<i>MDK-1 </i>1965
MDK-1 1965
<i>MDK-30 </i>1979
MDK-30 1979


Graphics


Project 106 1971
Project 106 1971


Project history

Project 106 was a slightly enlarged Project 189, open-deck bow ramp commercial beaching craft.

Modernizations

None.

Naval service

No significant events.
