D-501 landing craft (project 1785) (1962 - 1974)





Project 1785 1996

Ships


Names Builders Commissioned Losses Transfers Discarding

more than 100 craft:

Д-134-136 [D-134-136]

Д-151-153 [D-151-153]

Д-160 [D-160]

Д-171 [D-171]

Д-231 [D-231]

Д-319 [D-319]

Д-332 [D-332]

Д-343 [D-343]

Д-403 [D-403]

Д-445 [D-445]

Д-455 [D-455]

Д-512 [D-512]

Д-514 [D-514]

Д-516 [D-516]

Д-530 [D-530]

Д-534 [D-534]

Д-536 [D-536]

Д-537 [D-537]

Д-539-541 [D-539-541]

Д-553 [D-553]

Д-572 [D-572]

Д-577 [D-577]

Д-579 [D-579]

Д-580 [D-580]

Д-596 [D-596]

Д-600 [D-600]

Д-601 [D-601]

Д-603 [D-603]

Д-642 [D-642]

and others

Azov SY, Taganrog

Kama, Perm'

Tallin SY

Krasnye Barrikady, Astrakhan'

More, Feodosiya

Khabarovsk SY

1962 - 1974: ]100 craft

unknown

Algeria (1):

Angola (5): 1976- 5

Azerbaijan (1): 1992- D-603 (D437)

Campuchia (3): 1985- 3

Cuba (7): 1967-1974- 7

Ethiopia (6): 1975- 2, 1979- 1, 1981- 1, 1984- 2

Guinea (30): 1974- 30

Guinea-Bissau (4): 1975- 2, 1979- 2

Somalia (4): 1968-1969- 4

Ukraine (1): 1997- D-455 (Tarpan)

Vietnam (27): 1979- 27

North Yemen (2): 1971- 2

South Yemen (5): 1970- 3, 1981- 2

19780s-1990s: mostly all (last were stricken late 2010s)



Technical data


Displacement standard, t39
Displacement normal, t

80

Length, m

19.7

Breadth, m

4.91

Draught, m

1.36

No of shafts

2

Machinery

2 3D6 diesels

Power, h. p.

300

Max speed, kts

7.8

Fuel, t

diesel oil

Endurance, nm(kts)

290(7.8)

Armament

none

Military load

1 MBT or 20 troops

Electronic equipmentradar (on some)
Complement

4



Standard scale images

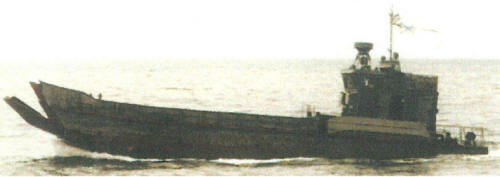

<i>D-501 </i>1970
D-501 1970


Graphics


Project 1785 1996
Project 1785 1996


Project history

Equivalent to the US LCM, but larger and more seaworthy. Development of Projects 306 and T-4.

Modernizations

None.

Naval service

No significant events.
