D-296 assault craft (project 02510) (2015-2018)





D-296 2015

Ships


Names Builders Completed Losses Transfers Discarding

Д-296 [D-296]

Д-308 [D-308]

Д-2110 [D-2110]

SSZ Rybinsk: D-296, 308, 2110

2015: D-296

2018: D-308, 2110

none

none

in service (2019): D-296, 308, 2110



Technical data


Displacement standard, t
Displacement normal, t

21

Length, m

16.0

Breadth, m

3.80

Draught, m

0.90

No of shafts

2 waterjets

Machinery

2 Seatek diesels

Power, h. p.
Max speed, kts

40

Fuel, t

diesel oil

Endurance, nm(kts)400(20)
Armament

1 x 1 - 12.7/79, 4 x 1 - 7.6/90

Military load

19 troops

Electronic equipment

radar

Complement

2



Standard scale images


<i>D296 </i>2015
D296 2015


Graphics

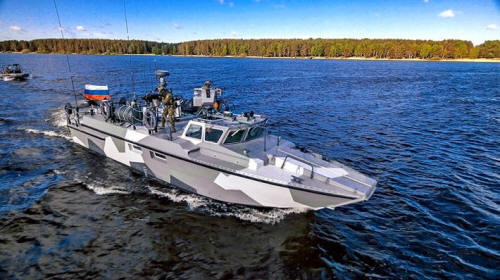

<i>D-296 </i>2015
D-296 2015


Project history

Second Russian derivative of Swedish CB-90 boat, intended mostly for amphibious operations. Design of Kalashnikov concern.

Modernizations

None.

Naval service

No significant events.
