Neustrashimyy 2002

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Неустрашимый [Neustrashimyy]	772	401	Yantar', Kaliningrad	25.3.1987	25.5.1988	28.12.1990	in service (2019)
Ярослав Мудрый [Yaroslav Mudryy] (ex-Неприступный [Nepristupnyy])	777	402	Yantar', Kaliningrad	27.5.1988	6/1990	19.7.2009	in service (2019)
Туман [Tuman]		403	Yantar', Kaliningrad	1993	---	---	suspended 1995

Technical data

Displacement standard, t	3950
Displacement full, t	4350
Length, m	129.8
Breadth, m	15.6
Draught, m	4.80 hull 8.35 max
No of shafts	2
Machinery	COGAG M27: 2 M70 cruising gas turbines + 2 M90 boost gas turbines
Power, h. p.	57000 (20000 + 37000)
Max speed, kts	29
Fuel, t	gas turbine oil
Endurance, nm(kts)	3000(18)
Armament	401: 1 x 4 Kinzhal SAM VLS (32 9M330), 2 x (8 Kortik SAM + 2 x 6 - 30/54) Kortik CIWS (64 9M311), 6 x 1 URPK-6 Vodopad-NK SSM/ASuM (6 83R and 84R), 1 x 1 - 100/59 AK-100, 1 x 12 RBU-6000 RPK-8 ASWRL, 16 - 20 mines, 1 helicopter (Ka-27) 402: 4 x 4 Uran SSM (8 3M24), 1 x 4 Kinzhal SAM VLS (32 9M330), 2 x (8 Kortik SAM + 2 x 6 - 30/54) Kortik CIWS (64 9M311), 6 x 1 URPK-6 Vodopad-NK SSM/ASuM (6 83R and 84R), 1 x 1 - 100/59 A-190, 2 x 1 - 12.7/79, 1 x 12 RBU-6000 RPK-8 ASWRL, 2 x 10 - 55 DP-65(RG-55M) grenade launchers, 16 - 20 mines, 1 helicopter (Ka-27)
Electronic equipment	401: MR-750 Fregat-M2, K-12-1, MR-145 Lev-218-100, MR-212 Vaygach radars, MGK-365 Zvezda-M1 sonar suite, MP-405-1 ECM suite, 2x PK-16, 8x PK-10 Smelyy decoy RLs, Tron-11540 CCS 402: MR-750 Fregat-M2, K-12-1, MR-145 Lev-218-100, MR-212 Vaygach radars, Korall satellite-based targeting system, MGK-365 Zvezda-M1 sonar suite, TK-25 ECM suite, 2x PK-16, 8x PK-10 Smelyy decoy RLs, Tron-11540 CCS
Complement	210

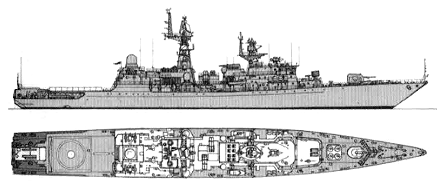

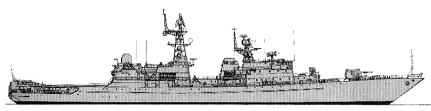

Standard scale images

Graphics

Project history

This is the Project 1135 successor. Like Project 11351, it is intended to fire a surface-ship variant of the standard submarine ASW stand-off missile. The elimination of special ASW missile tubes leaves space aft for helicopter. Missiles and torpedoes are fired from catapults. The sonar suite consisted of bow, flank and towed VDS arrays.

Modernizations

2015, Neustrashimyy: - MGK-365 Zvezda-M1 sonar suite; + Zaria-SK sonar suite

Naval service

No significant events.
