MPK-147 small ASW ships (projects 1124, 1124K, 1124M) (1970 - 1994), BRILLIANT border guard ships (projects 1124P, 1124PM, 1124) (1973 - 1985)





Project 1124 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
МПК-147 [MPK-147]   701 Krasnyy Metallist, Zelenodolsk 26.12.1966 11.12.1967 31.8.1970 stricken 9.1994 Project 1124
МПК-5 [MPK-5]   702 Krasnyy Metallist, Zelenodolsk 30.12.1967 16.10.1968 31.10.1970 stricken 8.1993 Project 1124
МПК-131 [MPK-131]   703 Krasnyy Metallist, Zelenodolsk 25.5.1968 4.7.1969 30.12.1970 stricken 1.1991 Project 1124
МПК-133 [MPK-133]   704 Krasnyy Metallist, Zelenodolsk 4.10.1968 17.12.1969 15.9.1971 stricken 2.1994 Project 1124
МПК-33 [MPK-33]   705 Krasnyy Metallist, Zelenodolsk 23.5.1969 30.4.1970 24.12.1971 stricken 2.1995 Project 1124
МПК-47 [MPK-47]   706 Krasnyy Metallist, Zelenodolsk 5.9.1969 17.7.1970 30.12.1971 stricken 10.1992 Project 1124
МПК-65 [MPK-65]   707 Krasnyy Metallist, Zelenodolsk 10.7.1970 5.2.1971 30.9.1972 stricken 4.1990 Project 1124
МПК-3 [MPK-3]   708 Krasnyy Metallist, Zelenodolsk 12.10.1970 9.7.1971 29.12.1972 stricken 4.1992 Project 1124
МПК-8 [MPK-8]   709 Krasnyy Metallist, Zelenodolsk 3.3.1971 30.1.1972 28.9.1973 stricken 7.1992 Project 1124
МПК-43 [MPK-43], 4.1983- Одесский комсомолец [Odesskiy Komsomolets], 2.1992- МПК-43 [MPK-43]   712 Krasnyy Metallist, Zelenodolsk 1.8.1972 2.6.1973 28.12.1974 to Ukraine 8.1997 (Суми [Sumy]) Project 1124
МПК-40 [MPK-40]   715 Krasnyy Metallist, Zelenodolsk 28.4.1973 23.5.1974 30.9.1975 stricken 1.994 Project 1124
МПК-138 [MPK-138]   716 Krasnyy Metallist, Zelenodolsk 26.3.1975 11.5.1976 31.12.1976 stricken 7.1992 Project 1124
МПК-141 [MPK-141]   717 Krasnyy Metallist, Zelenodolsk 3.7.1976 16.4.1977 30.9.1977 stricken 7.1994 Project 1124
МПК-152 [MPK-152]   718 Krasnyy Metallist, Zelenodolsk 18.11.1976 18.6.1977 30.12.1977 stricken 7.1994 Project 1124
МПК-161 [MPK-161]   719 Krasnyy Metallist, Zelenodolsk 1.10.1977 6.5.1978 30.12.1978 stricken 7.1996 Project 1124
МПК-2 [MPK-2]   720 Krasnyy Metallist, Zelenodolsk 10.2.1978 24.3.1979 28.11.1979 stricken 7.1997 Project 1124
МПК-108 [MPK-108]   722 Krasnyy Metallist, Zelenodolsk 14.5.1979 6.2.1981 25.9.1981 to Lithuania 4.1993 (Aukštaitis) Project 1124
МПК-49 [MPK-49], 8.2004- Александровец [Aleksandrovets] 059 723 Krasnyy Metallist, Zelenodolsk 23.3.1980 14.2.1982 31.8.1982 in service (2019) Project 1124
МПК-52 [MPK-52]   100 Leninskaya Kuznitsa, Kiev 30.10.1968 30.5.1971 31.12.1971 to Ukraine 8.1997 (Херсон [Kherson]) Project 1124
МПК-31 [MPK-31]   101 Leninskaya Kuznitsa, Kiev 30.9.1969 8.4.1973 30.9.1973 stricken 2.1995 Project 1124
МПК-127 [MPK-127], 8.1980- Комсомолец Грузии [Komsomolets Gruzii], 2.1992- МПК-127 [MPK-127]   102 Leninskaya Kuznitsa, Kiev 16.9.1974 10.7.1976 27.12.1976 stricken 6.2005 Project 1124
МПК-6 [MPK-6]   103 Leninskaya Kuznitsa, Kiev 15.7.1976 3.6.1978 12.12.1978 stricken 3.1998 Project 1124
МПК-44 [MPK-44], 9.1983- Комсомолец Латвии [Komsomolets Latvii], 2.1992- МПК-44 [MPK-44]   104 Leninskaya Kuznitsa, Kiev 18.7.1977 29.3.1980 25.10.1980 to Lithuania 4.1993 (Žemaitis) Project 1124
МПК-36 [MPK-36]   10 Khabarovsk SYd 1970 1971 31.12.1972 stricken 6.1993 Project 1124
МПК-41 [MPK-41]   11 Khabarovsk SYd 12.4.1971 22.8.1972 31.12.1972 stricken 6.1993 Project 1124
МПК-117 [MPK-117]   12 Khabarovsk SYd 19.4.1972 8.9.1973 31.12.1973 stricken 6.1992 Project 1124
МПК-81 [MPK-81]   13 Khabarovsk SYd 26.3.1973 10.8.1974 31.12.1974 stricken 2.1994 Project 1124
МПК-122 [MPK-122]   14 Khabarovsk SYd 27.5.1974 23.8.1975 31.12.1975 stricken 7.1994 Project 1124
МПК-143 [MPK-143]   15 Khabarovsk SYd 25.2.1975 3.7.1976 31.12.1976 stricken 7.1997 Project 1124
МПК-145 [MPK-145]   16 Khabarovsk SYd 29.10.1975 11.6.1977 30.11.1977 stricken 8.1995 Project 1124
МПК-170 [MPK-170]   17 Khabarovsk SYd 31.5.1976 30.9.1977 14.10.1978 stricken 7.1996 Project 1124
МПК-4 [MPK-4]   18 Khabarovsk SYd 27.11.1976 15.5.1978 27.7.1979 stricken 7.1997 Project 1124
МПК-101 [MPK-101], 11.1989- Запорожский комсомолец [Zaporozhskiy Komsomolets], 2.1992- МПК-101 [MPK-101]   19 Khabarovsk SYd 31.5.1977 3.10.1978 23.12.1979 stricken 3.1998 Project 1124
МПК-155 [MPK-155]   20 Khabarovsk SYd 20.12.1977 29.5.1979 30.9.1980 stricken 7.1994 Project 1124
МПК-37 [MPK-37]   21 Khabarovsk SYd 31.5.1978 20.10.1979 19.12.1980 stricken 8.1995 Project 1124
МПК-178 [MPK-178]   27 Khabarovsk SYd 30.11.1982 8.5.1984 21.12.1984 target 2013 Project 1124
МПК-191 [MPK-191], 6.2006- Холмск [Kholmsk] 369 28 Khabarovsk SYd 30.11.1982 7.5.1985 21.11.1985 in service (2019) Project 1124
МПК-104 [MPK-104]   721 Krasnyy Metallist, Zelenodolsk 12.6.1979 23.3.1980 30.10.1980 stricken 3.1998 Project 1124K
Киевский комсомолец [Kiyevskiy Komsomolets] (ex-МПК-64 [MPK-64]), 2.1992- МПК-134 [MPK-134], 4.1999- Муромец [Muromets] 064 001 Leninskaya Kuznitsa, Kiev 30.3.1980 27.3.1982 10.12.1982 in service (2019) Project 1124M
МПК-118 [MPK-118], 4.1984- Комсомолец Молдавии [Komsomolets Moldavii], 2.1992- МПК-118 [MPK-118], 4.1999- Суздалец [Suzdalets] 071 002 Leninskaya Kuznitsa, Kiev 1.8.1981 27.3.1983 3.10.1983 in service (2019) Project 1124M
МПК-139 [MPK-139]   003 Leninskaya Kuznitsa, Kiev 8.4.1982 18.2.1984 2.8.1984 stricken 6.2005 Project 1124M
МПК-190 [MPK-190]   004 Leninskaya Kuznitsa, Kiev 5.4.1983 20.1.1985 8.8.1985 stricken 3.1998 Project 1124M
Комсомолец Армении [Komsomolets Armenii] (ex-МПК-199 [MPK-199]), 2.1992- МПК-199 [MPK-199], 2001- Касимов [Kasimov] 055 005 Leninskaya Kuznitsa, Kiev 20.2.1984 7.12.1985 7.10.1986 in service (2019) Project 1124M
МПК-202 [MPK-202]   006 Leninskaya Kuznitsa, Kiev 22.1.1985 10.11.1986 6.10.1987 stricken 3.1998 Project 1124M
МПК-113 [MPK-113]   007 Leninskaya Kuznitsa, Kiev 12.11.1985 31.7.1987 5.8.1988 stricken 2002 Project 1124M
МПК-207 [MPK-207], 2000s- Поворино [Povorino] 053 008 Leninskaya Kuznitsa, Kiev 12.6.1986 6.5.1988 3.4.1989 in service (2019) Project 1124M
МПК-217 [MPK-217], 9.1999- Ейск [Yeysk] 054 009 Leninskaya Kuznitsa, Kiev 16.3.1987 12.4.1989 26.12.1989 in service (2019) Project 1124M
Ленинская Кузница [Leninskaya Kuznitsa] (ex-МПК-214 [MPK-214]), 2.1992- МПК-125 [MPK-125], 12.2005- Советская Гавань [Sovetskaya Gavan'] 350 010 Leninskaya Kuznitsa, Kiev 20.8.1987 30.3.1990 29.9.1990 in service (2019) Project 1124M
МПК-82 [MPK-82] 375 011 Leninskaya Kuznitsa, Kiev 20.4.1989 20.4.1991 26.9.1991 in service (2019) Project 1124M
МПК-85 [MPK-85]   012 Leninskaya Kuznitsa, Kiev 11.1.1991 22.5.1993 30.12.1993 // --- completed for Ukraine (Луцьк [Lutsk]) Project 1124M
-   013 Leninskaya Kuznitsa, Kiev 23.4.1991 15.3.2002 28.12.2005 // --- completed for Ukraine (Тернопiль [Ternopyl]) Project 1124M
МПК-142 [MPK-142]   101 Krasnyy Metallist, Zelenodolsk 20.2.1982 19.5.1984 30.12.1984 stricken 3.1998 Project 1124M
МПК-198 [MPK-198]   102 Krasnyy Metallist, Zelenodolsk 3.8.1984 27.4.1986 29.12.1986 stricken 3.1998 Project 1124M
МПК-69 [MPK-69]   103 Krasnyy Metallist, Zelenodolsk 4.4.1985 2.5.1987 29.12.1987 stricken 3.1998 Project 1124M
Брестский комсомолец [Brestskiy Komsomolets] (ex-МПК-194 [ MPK-194]), 2.1992- МПК-194 [MPK-194], 7.2000- Брест [Brest] 199 104 Krasnyy Metallist, Zelenodolsk 11.5.1987 30.7.1988 27.9.1988 in service (2019) Project 1124M
МПК-196 [MPK-196]   105 Krasnyy Metallist, Zelenodolsk 11.5.1987 30.7.1988 30.12.1988 stricken 2002 Project 1124M
МПК-197 [MPK-197]   106 Krasnyy Metallist, Zelenodolsk 27.10.1987 8.4.1989 25.10.1989 stricken 5.2001 Project 1124M
МПК-203 [MPK-203], 2.1990- Юнга [Yunga] 113 107 Krasnyy Metallist, Zelenodolsk 26.3.1988 19.7.1989 28.12.1989 in service (2019) Project 1124M
Архангельский комсомолец [Arkhangelskiy Komsomolets], 2.1992- МПК-130 [MPK-130], 2002- Нарьян-Мар [Nar'yan-Mar] 138 108 Krasnyy Metallist, Zelenodolsk 17.8.1988 9.3.1990 28.9.1990 in service (2019) Project 1124M
МПК-56 [MPK-56]   109 Krasnyy Metallist, Zelenodolsk 12.4.1989 30.6.1990 29.12.1990 stricken 6.2005 Project 1124M
МПК-7 [MPK-7], 6.2003- Онега [Onega] 164 110 Krasnyy Metallist, Zelenodolsk 20.4.1989 30.6.1990 28.12.1990 in service (2019) Project 1124M
МПК-10 [MPK-10]   111 Krasnyy Metallist, Zelenodolsk 19.3.1990 27.7.1991 28.12.1991 stricken 6.2006 Project 1124M
МПК-14 [MPK-14], 8.1999- Мончегорск [Monchegorsk] 190 112 Krasnyy Metallist, Zelenodolsk 27.3.1991 6.6.1992 31.5.1993 in service (2019) Project 1124M
МПК-59 [MPK-59], 2000s- Снежногорск [Snezhnogorsk] 196 113 Krasnyy Metallist, Zelenodolsk 20.11.1990 22.5.1993 12.8.1994 in service (2019) Project 1124M
Приморский комсомолец [Primorskiy Komsomolets] (ex-МПК-200 [MPK-200]), 2.1992- МПК-221 [MPK-221] 354 80 Khabarovsk SYd 8.2.1985 29.4.1987 29.12.1987 in service (2019) Project 1124M
МПК-89 [MPK-89]   81 Khabarovsk SYd 27.1.1986 3.11.1987 13.12.1988 stricken 7.1997 Project 1124M
МПК-222 [MPK-222], 11.2003- Кореец [Koreets] 390 82 Khabarovsk SYd 7.1.1987 27.4.1989 20.12.1989 in service (2019) Project 1124M
МПК-28 [MPK-28]   83 Khabarovsk SYd 2.9.1987 9.9.1989 27.12.1989 stricken 6.2005 Project 1124M
Иркутский комсомолец [Irkutskiy Komsomolets], 2.1992- МПК-107 [MPK-107] 332 84 Khabarovsk SYd 22.2.1988 5.6.1990 14.12.1990 in service (2019) Project 1124M
МПК-64 [MPK-64], 10.2003- Метель [Metel'] 323 85 Khabarovsk SYd 4.1.1988 2.10.1990 31.12.1990 in service (2019) Project 1124M
МПК-17 [MPK-17], 1.2010- Усть-Илимск [Ust'-Ilimsk] 362 86 Khabarovsk SYd 22.1.1990 28.8.1991 30.12.1991 in service (2019) Project 1124M
МПК-20 [MPK-20]   87 Khabarovsk SYd late 1990 --- --- cancelled 2.1992 Project 1124M
Бриллиант [Brilliant]   710 Krasnyy Metallist, Zelenodolsk 1.2.1972 19.10.1972 25.12.1973 Border Guard, stricken 3.1995 Project 1124P
Жемчуг [Zhemchug]   711 Krasnyy Metallist, Zelenodolsk 28.3.1972 14.1.1973 30.8.1974 Border Guard, stricken 10.1995 Project 1124P
Изумруд [Izumrud]   713 Krasnyy Metallist, Zelenodolsk 8.2.1973 3.2.1974 28.12.1974 Border Guard, stricken 2012 Project 1124P
Рубин [Rubin]   773 Krasnyy Metallist, Zelenodolsk 22.12.1973 17.11.1974 31.12.1975 Border Guard, stricken 6.1992 Project 1124P
Аметист [Ametist] (ex-Алмаз [Almaz])   774 Krasnyy Metallist, Zelenodolsk 10.6.1974 12.7.1975 31.12.1975 Border Guard, stricken 3.1997 Project 1124P
Днепр [Dnepr]   775 Krasnyy Metallist, Zelenodolsk 23.12.1975 12.9.1976 31.12.1976 Border Guard, to Ukraine 6.1992 (Вiнниця [Vinnitsya]) Project 1124P
Сапфир [Sapfir]   776 Krasnyy Metallist, Zelenodolsk 4.5.1977 31.1.1978 31.7.1978 Border Guard, stricken 5.1998 Project 1124P
Измаил [Izmail]   777 Krasnyy Metallist, Zelenodolsk 12.9.1978 22.6.1980 28.12.1980 Border Guard, to Ukraine 6.1992 (Iзмаïл [Izmail]) Project 1124P
Проворный [Provornyy]   778 Krasnyy Metallist, Zelenodolsk 21.6.1980 30.7.1982 30.12.1982 Border Guard, stricken 5.1998 Project 1124P
Преданный [Predannyy]   779 Krasnyy Metallist, Zelenodolsk 18.3.1982 16.4.1983 30.9.1983 Border Guard, stricken 2002 Project 1124P
Надёжный [Nadyozhnyy]   780 Krasnyy Metallist, Zelenodolsk 19.9.1982 25.2.1984 20.9.1984 Border Guard, stricken 2002 Project 1124P
Дозорный [Dozornyy]   781 Krasnyy Metallist, Zelenodolsk late 1982 spring 1985 26.12.1985 Border Guard, stricken 2014 Project 1124P
Бдительный [Bditelnyy]   40 Khabarovsk SYd 1979 18.4.1981 25.9.1981 Border Guard, stricken 5.1998 Project P1124
Безупречный [Bezuprechnyy]   41 Khabarovsk SYd 1979 summer 1981 19.12.1981 Border Guard, stricken 2015 Project P1124
Зоркий [Zorkiy]   42 Khabarovsk SYd 15.2.1980 2.11.1981 29.10.1982 Border Guard, stricken 6.2006 Project P1124
Решительный [Reshitelnyy]   43 Khabarovsk SYd 28.10.1980 18.9.1982 31.8.1983 Border Guard, stricken 5.1998 Project P1124
Смелый [Smelyy]   44 Khabarovsk SYd 27.5.1981 7.5.1983 15.12.1983 Border Guard, stricken 2015 Project P1124
Бравый [Bravyy]   82 Vladivostok SYd 1988 --- --- cancelled 2.1992 Project P1124
Верный [Vernyy]   83 Vladivostok SYd 1988 --- --- cancelled 2.1992 Project P1124
Строгий [Strogiy]   84 Vladivostok SYd 1988 --- --- cancelled 2.1992 Project P1124


Technical data


Displacement standard, t

pr. 1124, P1124, 1124K: 835

pr. 1124M: 910

pr. 1124P: 880
Displacement normal, t

pr. 1124, P1124, 1124K: 990

pr. 1124M: 1055

pr. 1124P: 960
Length, m

pr. 1124, P1124, 1124K, 1124M: 71.1

pr. 1124P: 71.2
Breadth, m

10.2
Draught, m

pr. 1124, P1124, 1124K: 3.54

pr. 1124M: 3.71

pr. 1124P: 3.60
No of shafts

3
Machinery

pr. 1124, P1124, 1124K, 1124P: CODAG - 1 M-8 gas turbine + 2 M-507A diesels

pr. 1124M: CODAG - 1 M-8M gas turbine + 2 M-507A diesels
Power, h. p.

38000 (18000 + 20000)
Max speed, kts

pr. 1124, P1124, 1124K: 32

pr. 1124M: 31.6

pr. 1124P: 36.1
Fuel, t

oil
Endurance, nm(kts)

2700(14)
Armament

pr. 1124, P1124 (701-709, 100, 101, 10-12): 1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 57/50 AK-725, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines

pr. 1124, P1124 (712-723, 102-104, 13-28, 40-84): 1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 57/50 AK-725, 1 x 6 - 30/54 AK-630/M, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines

pr. 1124K: 1 x 3 Kinzhal SAM (24 9M330/9M330-2), 1 x 6 - 30/54 AK-630/M, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines

pr. 1124M: 1 x 2 Osa-MA/MA2 SAM (20 9M33), 1 x 2 Strela-3 SAM or 1 x 4 Strela-3 SAM (9M36), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630M, 2 x 2 - 533 TT, 1 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines

pr. 1124P: 2 x 2 - 57/50 AK-725, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines
Electronic equipment

pr. 1124, P1124 (701-708, 100, 101, 10-12): MR-302 Rubka, 4R-33, MR-103 Bars, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite

pr. 1124 (709): MR-320 Topaz-2V, 4R-33, MR-103 Bars, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite

pr. 1124, P1124 (712-723, 102-104, 13-28, 40-84): MR-302 Rubka, 4R-33, MR-123 Vympel-A, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite

pr. 1124K: MR-320 Topaz-2V, K-12-1, MR-123 Vympel-A, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite

pr. 1124M (001-004): MR-320 Topaz-2V, 4R-33A, MR-123 Vympel-A, MR-212 Vaygach radars, MGK-335 Platina, MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Vympel-R2 ECM suite, 2 PK-16, 4 PK-10 Smelyy decoy launchers

pr. 1124M (005): MR-320 Topaz-2V, 4R-33A, MR-123 Vympel-A, MR-212 Vaygach radars, MGK-335MS Platina-MS, MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Vympel-R2 ECM suite, 2 PK-16, 4 PK-10 Smelyy decoy launchers

pr. 1124M (others): MR-755 Fregat-MA1, 4R-33A, MR-123 Vympel-A, MR-212 Vaygach radars, MGK-335MS Platina-MS, MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Vympel-R2 ECM suite, 2 PK-16, 4 PK-10 Smelyy decoy launchers

pr. 1124P: MR-302 Rubka, MR-103 Bars, Don radars, MG-332 Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite
Complement

pr. 1124, P1124, 1124K: 83

pr. 1124M: 90

pr. 1124P: 79


Standard scale images


<i>MPK-147 </i>1970
MPK-147 1970
<i>MPK-81 </i>1974
MPK-81 1974
<i>Brilliant </i>1973
Brilliant 1973
<i>Kievskiy Komsomolets </i>1982
Kievskiy Komsomolets 1982
<i>Aleksandrovets </i>2015
Aleksandrovets 2015
<i>Onega </i>2015
Onega 2015


Graphics

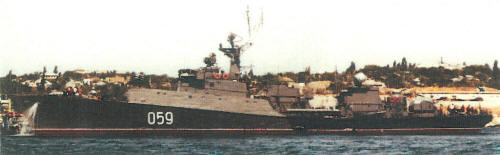

<i>MPK-49 </i>2000
MPK-49 2000

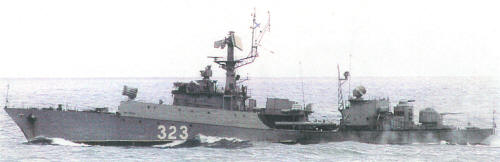

<i>MPK-64 </i>2002
MPK-64 2002
Project 1124 1979
Project 1124 1979
Project 1124P 1976
Project 1124P 1976
Project 1124 with AK-630 1978
Project 1124 with AK-630 1978


Project history

These small ASW ships (MPKs) are production successors to Project 204, carrying much the same armament on a larger hull which adds an Osa-M launcher forward, both ASW RLs being moved into the superstructure. As in the earlier class, CODAG machinery was used because the ships were intended for 'sprint-and-dash' ASW tactics, dipping and then quickly retrieving their sonars.

Modernizations

1980, MPK-5: - 2 x 12 RBU-6000 Smerch-2 ASWRL; + 1 x 6 RPK-5 Liven' ASuM (6)

1980s, some ships: + 1 x 4 Igla/Igla-1 SAM (9M39/9M313)

Naval service

No significant events.
