BDITELNYY large ASW ships (projects 1135, 1135M) (1970 - 1981)





Deyatelnyy 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Бдительный [Bditelnyy]   151 Yantar', Kaliningrad 21.7.1968 28.3.1970 31.12.1970 stricken 7.1996 Project 1135
Бодрый [Bodryy]   152 Yantar', Kaliningrad 15.1.1969 28.4.1971 31.12.1971 stricken 7.1997 Project 1135
Свирепый [Svirepyy]   153 Yantar', Kaliningrad 15.6.1970 27.1.1971 29.12.1972 stricken 6.1993 Project 1135
Сильный [Silnyy]   154 Yantar', Kaliningrad 15.3.1971 29.8.1972 30.6.1973 stricken 6.1994 Project 1135
Сторожевой [Storozhevoy]   155 Yantar', Kaliningrad 20.7.1972 21.3.1973 30.12.1973 stricken 4.2002 Project 1135
Разумный [Razumnyy]   156 Yantar', Kaliningrad 26.6.1972 20.7.1973 30.9.1974 stricken 3.1998 Project 1135
Разящий [Raziashchiy]   157 Yantar', Kaliningrad 28.9.1972 22.7.1974 30.12.1974 stricken 10.1992 Project 1135
Дружный [Druzhnyy]   158 Yantar', Kaliningrad 12.10.1973 22.1.1975 30.9.1975 stricken 4.2002 Project 1135
Достойный [Dostoynyy]   11 Zaliv, Kerch' 11.8.1969 8.5.1971 31.12.1971 stricken 6.1993 Project 1135
Доблестный [Doblestnyy]   12 Zaliv, Kerch' 30.11.1970 22.2.1973 28.12.1973 stricken 7.1992 Project 1135
Деятельный [Deyatelnyy]   13 Zaliv, Kerch' 21.6.1972 5.4.1975 25.12.1975 stricken 7.1995 Project 1135
Беззаветный [Bezzavetnyy]   14 Zaliv, Kerch' 28.5.1976 7.5.1977 30.12.1977 to Ukraine 8.1997 (Днiпропетровськ [Dnipropetrovsk]) Project 1135
Безукоризненный [Bezukoriznennyy]   15 Zaliv, Kerch' 12.7.1978 3.6.1979 29.12.1979 to Ukraine 8.1997 (Миколаïв [Mykolaiv]) Project 1135
Ладный [Ladnyy] 861 16 Zaliv, Kerch' 25.5.1979 7.5.1980 29.12.1980 in service (2019) Project 1135
Порывистый [Poryvistyy]   17 Zaliv, Kerch' 21.5.1980 16.5.1981 29.12.1981 stricken 7.1994 Project 1135
Жаркий [Zharkiy]   711 Zhdanov Yd, Leningrad 16.4.1974 3.11.1975 29.6.1976 stricken 4.2002 Project 1135
Ретивый [Retivyy]   712 Zhdanov Yd, Leningrad 12.6.1974 14.8.1976 28.12.1976 stricken 8.1995 Project 1135
Ленинградский комсомолец [Leningradskiy Komsomolets], 2.1992- Лёгкий [Liogkiy]   713 Zhdanov Yd, Leningrad 22.4.1974 1.4.1977 29.9.1977 stricken 7.2003 Project 1135
Летучий [Letuchiy]   714 Zhdanov Yd, Leningrad 9.3.1977 19.3.1978 10.8.1978 stricken 6.2005 Project 1135
Пылкий [Pylkiy]   715 Zhdanov Yd, Leningrad 6.5.1977 20.8.1978 28.12.1978 stricken 2012 Project 1135
Задорный [Zadornyy]   716 Zhdanov Yd, Leningrad 10.11.1977 25.3.1979 31.8.1979 stricken 12.2005 Project 1135
Пытливый [Pytlivyy]   717 Zhdanov Yd, Leningrad --- --- --- cancelled 2.1979 Project 1135
Резвый [Rezvyy]   159 Yantar', Kaliningrad 10.12.1973 30.5.1975 30.12.1975 stricken 5.2001 Project 1135M
Резкий [Rezkiy]   160 Yantar', Kaliningrad 28.7.1974 17.2.1976 30.9.1976 stricken 8.1995 Project 1135M
Разительный [Razitelnyy]   161 Yantar', Kaliningrad 11.2.1975 1.7.1976 31.12.1976 to Ukraine 9.1997 (Севастополь [Sevastopol]) Project 1135M
Грозящий [Groziashchiy]   162 Yantar', Kaliningrad 4.5.1975 7.2.1977 30.9.1977 stricken 2.1995 Project 1135M
Неукротимый [Neukrotimyy], 11.1987- Комсомолец Литвы [Komsomolets Litvy], 3.1990- Неукротимый [Neukrotimyy]   163 Yantar', Kaliningrad 22.1.1976 7.9.1977 30.12.1977 stricken 6.2009 Project 1135M
Громкий [Gromkiy]   164 Yantar', Kaliningrad 23.6.1976 11.4.1978 30.9.1978 stricken 3.1998 Project 1135M
Бессменный [Bessmennyy]   165 Yantar', Kaliningrad 11.1.1977 9.8.1978 26.12.1978 stricken 3.1998 Project 1135M
Горделивый [Gordelivyy]   166 Yantar', Kaliningrad 26.7.1977 3.5.1979 20.9.1979 stricken 7.1994 Project 1135M
Рьяный [R'yanyy]   167 Yantar', Kaliningrad 1.3.1978 1.9.1979 31.12.1979 stricken 7.1997 Project 1135M
Ревностный [Revnostnyy]   168 Yantar', Kaliningrad 27.6.1979 23.4.1980 27.12.1980 stricken 7.2003 Project 1135M
Пытливый [Pytlivyy] 868 169 Yantar', Kaliningrad 27.6.1979 16.4.1981 30.11.1981 in service (2019) Project 1135M


Technical data


Displacement standard, t

pr. 1135: 2835

pr. 1135M: 2935

Displacement normal, t

pr. 1135: 3190

pr. 1135M: 3305

Length, m

123.0

Breadth, m

14.2

Draught, m

4.50 mean 7.21 max

No of shafts

2

Machinery

151-154, 11, 12: COGAG M7: 2 M60 gas turbines + 2 M3 gas turbines

155-169, 13-17, 711-717: COGAG M7K: 2 M62 gas turbines + 2 M8K gas turbines

Power, h. p.

151-154, 11, 12: 48000 (12000 + 36000)

155-169, 13-17, 711-717: 46000 (12000 + 34000)

Max speed, kts

32

Fuel, t

oil

Endurance, nm(kts)

4000(14)

Armament

151, 152: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 2 - 76/59 AK-726, 2 x 1 - 45/69 21KM, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 18 mines

153-158, 11-13, 712: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 2 - 76/59 AK-726, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 18 mines

711: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 2 - 76/59 AK-726, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

713, 714: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 2 - 76/59 AK-726, 2 x 1 - 45/69 21KM, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 18 mines

715: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 2 - 76/59 AK-726, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

15, 716: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 2 - 76/59 AK-726, 2 x 1 - 45/69 21KM, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

717: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 2 - 76/59 AK-726, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

14: 1 x 4 URK-5 Rastrub-B SSM/ASuM (4 85RU), 2 x 2 Osa-M SAM (40 9M33), 2 x 2 - 76/59 AK-726, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 18 mines

16: URK-5 Rastrub-B SSM/ASuM (4 85RU), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 2 - 76/59 AK-726, 2 x 1 - 45/69 21KM, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

17: URK-5 Rastrub-B SSM/ASuM (4 85RU), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 2 - 76/59 AK-726, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

159-163: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 1 - 100/59 AK-100, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 18 mines

164: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 1 - 100/59 AK-100, 2 x 1 - 45/69 21KM, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

165: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-M SAM (40 9M33), 2 x 1 - 100/59 AK-100, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

166: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 1 - 100/59 AK-100, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

167: 1 x 4 URPK-4 Metel' ASuM (4 85R), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 1 - 100/59 AK-100, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

168: URK-5 Rastrub-B SSM/ASuM (4 85RU), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 1 - 100/59 AK-100, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

169: URK-5 Rastrub-B SSM/ASuM (4 85RU), 2 x 2 Osa-MA SAM (40 9M33M), 2 x 1 - 100/59 AK-100, 2 x 1 - 45/69 21KM, 2 x 4 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 x 7 - 55 MRG-1 GL, 18 mines

Electronic equipment

151: MR-310A Angara-A, Volga, Musson, MR-105 Turel', 4R-33 radars, MG-312 Titan sonar, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

152-154, 11, 12, 712: MR-310A Angara-A, Volga, Musson, MR-105 Turel', 4R-33 radars, MG-332 Titan-2, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

13: MR-310A Angara-A, Volga, Musson, MR-105 Turel', 4R-33 radars, MG-332 Titan-2, MG-325 Vega, MG-7 Braslet, MGS-409K, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

711: MR-310A Angara-A, Volga, Musson, MR-105 Turel', 4R-33 radars, MG-332 Titan-2, MG-325 Vega, MG-7 Braslet, MGS-407K, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

713-715: MR-310A Angara-A, Volga, Musson, MR-105 Turel', 4R-33 radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

14: MR-310A Angara-A, Don, Musson-U, MR-105 Turel', 4R-33 radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

15: MR-310A Angara-A, Don, Musson, MR-105 Turel', 4R-33A radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

16, 17: MR-310A Angara-A, Don, Musson-U, MR-105 Turel', 4R-33A radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

716, 717: MR-310A Angara-A, Don, Musson, MR-105 Turel', 4R-33A radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

155, 156: MR-310A Angara-A, Don, Musson, MR-114 Lev-214, 4R-33 radars, MG-332 Titan-2, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

157-162, 164: MR-310A Angara-A, Don, Musson, MR-114 Lev-214, 4R-33 radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

163: MR-310A Angara-A, Don, Musson, MR-114 Lev-214, 4R-33 radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-409K, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

165: MR-310A Angara-A, Don, Musson, MR-114 Lev-214, 4R-33 radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-407K, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

166: MR-310A Angara-A, Don, Musson, MR-114 Lev-214, 4R-33A radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-409K, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

167: MR-310A Angara-A, Don, Musson, MR-114 Lev-214, 4R-33A radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

168, 169: MR-310A Angara-A, Don, Musson-U, MR-114 Lev-214, 4R-33A radars, MG-332T Titan-2T, MG-325 Vega, MG-7 Braslet, MGS-400K sonars,, MI-110R, MI-110K or MI-110KM wake detectors, MP-401S Start-S ECM suite, 4 PK-16 decoy launchers

Complement

pr. 1135: 192

pr. 1135M: 196

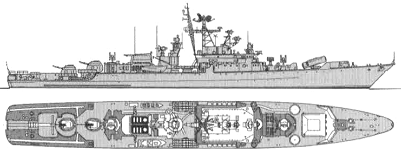

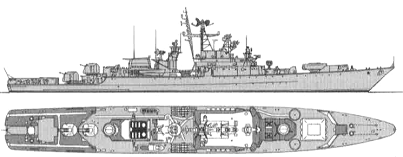

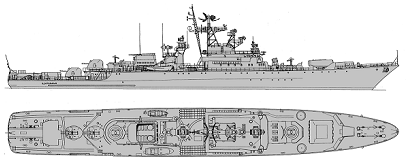

Standard scale images


<i>Bditelnyy </i>1971
Bditelnyy 1971
<i>Gromkiy </i>1991
Gromkiy 1991
<i>Pylkiy </i>2001
Pylkiy 2001
<i>Ladnyy </i>2014
Ladnyy 2014
<i>Pytlivyy </i>2014
Pytlivyy 2014


Graphics


<i>Pylkiy </i>2003
Pylkiy 2003
<i>Deyatelnyy</i> 1978
Deyatelnyy 1978
<i>Razitelnyy </i>1978
Razitelnyy 1978


Project history

This design began, probably about 1956, as Project 50 successor with a high forecastle hull (as in Project 57), a main battery of three twin 76mm guns (one forward, two aft), two quadruple 57mm guns (fore and aft) and, presumably, a pressure-fired steam powerplant. Presumably the ship had the standard self-defence torpedo battery of this period, twin mounts on either side. There was also a design study of a radar picket version carrying a Voshkod radar on a lattice mast forward of the funnel. By about 1963 a gas turbine version of the original SKR version was being offered for export, reportedly mainly to Indonesia, and by 1964 this version had been modified with Volna SAM launchers in place of the earlier quadruple 57mm. About this time the Soviet fleet planners wanted a special narrow-sea rocket combatant for the Baltic and Black Seas, and the SKR was modified once more, with two triple Malakhit P-50 launchers forward in place of the forward twin 76mm mount. At least a few ships were laid down to this Project 935 design. Then, with ASW once again paramount, the ships were redesigned (as Project 1135): Malakhit was replaced by a quadruple trainable Metel' launcher. The ships were designated large ASW ships (BPK) (redesignated as guard ships (SKR) 28.6.1977).

Western navies were unaware of the ASW shift, and when the ships first appeared in 1970 they were assessed as short-range anti-ship shooters capable of 38kts.

Modernizations

1980s, Gromkiy, Neukrotimiyy, Rezkiy: - 2 x 2 Osa-M SAM, 4R-33 radar; + 2 x 2 Osa-MA SAM (40 9M33M), 4R-33A radar

1984-1988, Gromkiy, Deyatelnyy, Zadornyy, Letuchiy, Neukrotimyy, Razitelnyy, Rezkiy: - 1 x 4 URPK-4 Metel' ASuM, Musson radar; + 1 x 4 URK-5 Rastrub-B SSM/ASuM (4 85RU), Musson-U radar

1984, Zharkiy - under Project 11353: 3180/3590t, 4.72m draught; - MG-332T Titan-2T, MG-325 Vega sonars; + 2 x 7 - 55 MRG-1 GL, MGK-365 Zvezda-M1 sonar, 8 PK-10 Smelyy decoy launchers

1980s, Bditelnyy, Bodryy, Neukrotimyy, Pylkiy, Storozhevoy: - Volga or Don radar; + MR-212 Vaygach radar

1980s, some ships: + MG-329 Sheksna sonar

1980s, Bodryy, Druzhnyy, Zadornyy, Letuchiy: + 8 PK-10 Smelyy decoy launchers

1990, Leningradskiy Komsomolets; 1993, Pylkiy - under Project 11352: 3330/3750t, 125.2x14.2x4.87m; - 1 x 4 URPK-4 Metel' ASuM, 2 x 2 Osa-M SAM, 2 x 12 RBU-6000 Smerch-2, MR-310A Angara-A, Musson, 4R33 radars, MG-332T Titan-2T, MG-325 Vega sonars; + 1 x 4 URK-5 Rastrub-B SSM/ASuM (4 85RU), 2 x 2 Osa-MA2 SAM (40 9M33M2), 2 x 7 - 55 MRG-1 GL, MR-755 Fregat-MA, Musson-U, 4R33AM radars, MGK-365 Zvezda-M1 sonar, 8 PK-10 Smelyy decoy launchers

Naval service

No significant events.
