ADMIRAL FLOTA SOVETSKOGO SOYUZA GORSHKOV frigates (project 22350) (2018-)

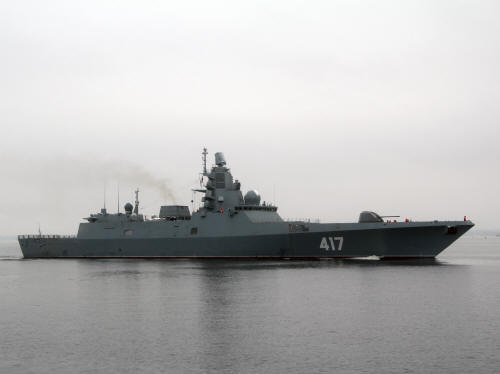

Admiral Flota Sovetskogo Soyuza Gorshkov 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Адмирал Флота Советского Союза Горшков [Admiral Flota Sovetskogo Soyuza Gorshkov] | 417 | 921 | Severnaya verf', St. Petersburg | 1.2.2006 | 29.10.2010 | 28.7.2018 | in service (2019) |
| Адмирал Флота Касатонов [Admiral Flota Kasatonov] | 922 | Severnaya verf', St. Petersburg | 26.11.2009 | 12.12.2014 | 2019 | building (2019) | |
| Адмирал Головко [Admiral Golovko] | 923 | Severnaya verf', St. Petersburg | 1.2.2012 | 2019 | 2021 | building (2019) | |
| Адмирал Флота Советского Союза Исаков [Admiral Flota Sovetskogo Soyuza Isakov] | 924 | Severnaya verf', St. Petersburg | 14.11.2013 | 2020 | 2022 | building (2019) | |
| Адмирал Амелько [Admiral Amel'ko] | 925 | Severnaya verf', St. Petersburg | 23.4.2019 | 2023 | 2025 | building (2019) | |
| Адмирал Чичагов [Admiral Chichagov] | 926 | Severnaya verf', St. Petersburg | 23.4.2019 | 2023 | 2025 | building (2019) | |
| 927 | Severnaya verf', St. Petersburg | 2020 | 2024 | 2026 | planned (2019) | ||
| 928 | Severnaya verf', St. Petersburg | 2020 | 2024 | 2026 | planned (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 4550 |
| Length, m | 135.0 |
| Breadth, m | 16.4 |
| Draught, m | 4.50 |
| No of shafts | 2 |
| Machinery | CODAG M55R: 2 10D49 cruising diesels + 2 M90FR/DA91 boost gas turbines |
| Power, h. p. | 10400 + 55000 = 65400 |
| Max speed, kts | 29 |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | 4000(14) |
| Armament | 2 x 8 Kalibr-NK CruM/SSM/ASuM / Oniks SSM (VLS, 16 3M14/3M54/91RT2/3M55), 4 x 8 Redut SAM (VLS, 32 9M96), 1 x 1 - 130/70 A-192M Armat, 2 x 12 - 30/80 3R99 Palash, 2 x 1 - 14.5/89, 2 x 4 - 330 Paket-NK TT, 1 helicopter (Ka-27) |
| Electronic equipment | 5P-20K Monument/Poliment, 34K1 Monolit, 5P-27 Furke-4, MR-231-2, 5P-10 Puma radars, MTK-201M E/O detector, Zaria-3.3, Minotavr-ISPN sonars, TK-28 ECM suite, Grach E/O interference system, 2x KT-308, 8x KT-216 decoy launchers (Prosvet-M system), Sigma-22350 CCS |
| Complement | 210 |

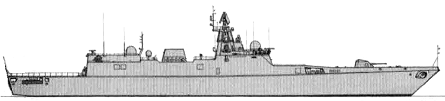

Standard scale images
Admiral Flota Sovetskogo Soyuza Gorshkov 2018
Graphics
Admiral Flota Sovetskogo Soyuza Gorshkov 2014
Project history
New design of large multipurpose surface combatant, armed with hypersonic SSM (Oniks), supersonic SSM (Kalibr 3M54), cruise missiles (Kalibr 3M14), anti-submarine missiles (Kalibr-NK 91RT2) and new Redut-Poliment SAM system. Commission of the first ship of the class was delayed due to problems with Redut-Poliment, and this time (February 2017) Admiral Gorshkov is planned to be commissioned in July 2017.
Modernizations
None.
Naval service
No significant events.
