SVEABORG torpedo boats (1886)

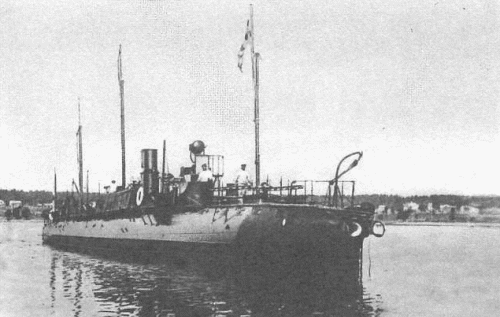

No206

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Свеаборг [Sveaborg] (ex-№5), 1.1898- №205     Normand, Le Havre, France 6/1885 1.10.1886 11/1886 dispatch vessel 7.1911, stricken 8.1913
Ревель [Revel'] (ex-№6), 1.1898- №206     Normand, Le Havre, France 6/1885 8/1886 10/1886 dispatch vessel 7.1911, stricken 8.1913


Technical data


Displacement normal, t

Sveaborg: 96

Revel': 108

Displacement full, t
Length, m

46.8

Breadth, m

Sveaborg: 3.43

Revel': 3.73

Draught, m

Sveaborg: 2.64

Revel': 2.51

No of shafts

1

Machinery

1 VTE, 1 Normand boiler

Power, h. p.

Sveaborg: 737

Revel': 837

Max speed, kts

Sveaborg: 19.2

Revel': 19.7

Fuel, t

coal 29

Endurance, nm(kts)1500(12.5)
Armament

2 x 5 - 37/17 Hotchkiss, 2 - 381 TT (bow, 4)

Complement21


Standard scale images


<i>№206 </i>1904
№206 1904


Graphics


<i>No206</i>
No206


Project history

Very satisfactory boats with two fixed bow TT. They were later shipped to Vladivostok in sections.

Modernizations

1911, both: - 2 x 5 - 37/17, 2 - 381 TT; + 2 x 1 - 47/40 Hotchkiss

Naval service

No significant events.
