SOM torpedo boat (1900)





Boyevoy Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Сом [Som], 3.1902- Боевой [Boyevoy]   637 Laird, Birkenhead, UK Autumn 1898 27.7.1899 3.1900 scuttled 2.1.1905


Technical data


Displacement normal, t

350
Displacement full, t412
Length, m

64.9 wl
Breadth, m

6.55
Draught, m

2.92 max
No of shafts

2
Machinery

2 VTE, 4 Laird boilers
Power, h. p.

6000
Max speed, kts

27.5
Fuel, t

coal 80
Endurance, nm(kts)1578(15)
Armament

1 x 1 - 75/48 Canet, 5 x 1 - 47/40 Hotchkiss, 2 x 1 - 381 TT
Complement

62


Standard scale images


<i>Som </i>1900
Som 1900

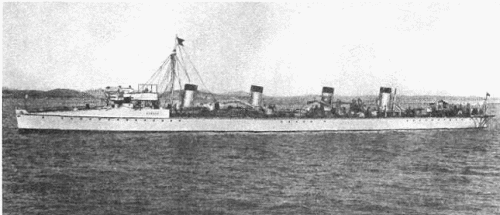

Graphics


<i>Boyevoy</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Boyevoy Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

A four-funnel destroyer of the usual Laird type, with the 75mm forward and two single deck TT abaft the second and fourth funnel.

Modernizations

None.

Naval service

Boyevoy was torpedoed by a Japanese picket boat on 24.7.1904 but managed to make Port Arthur. She was finally scuttled by own crew 2.1.1905 to avoid capture by Japanese.
