INZHENER-MEKHANIK ZVEREV torpedo boats (1906 - 1907)





Bditelnyy

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Лейтенант Сергеев [Leytenant Sergeev]   759 Schichau, Elbing, Germany // Vladivostok Admiralty 1.1905 // 1906 1907 1907 captured by UK 3.1918, to White Army, re-captured by Red Fleet 2.1920, stricken 6.1924
Капитан Юрасовский [Kapitan Yurasovskiy]   760 Schichau, Elbing, Germany // Vladivostok Admiralty 1.1905 // 1906 1907 1907 captured by UK 3.1918, to White Army, re-captured by Red Fleet 2.1920, stricken 6.1924
Инженер-Механик Зверев [Inzhener-Mekhanik Zverev], 2.1925- Жемчужный [Zhemchuzhnyy], 7.1925- Жемчужин [Zhemchuzhin]   761 Schichau, Elbing, Germany 1.1905 6.4.1906 Summer 1906 minesweeper 5.1922, dispatch vessel 5.1926, stricken 1.1930
Инженер-Механик Дмитриев [Inzhener-Mekhanik Dmitriev], 2.1925- Рошаль [Roshal]   762 Schichau, Elbing, Germany 2.1905 5.11.1905 1906 minesweeper 5.1922, dispatch vessel 7.1926, stricken 4.1928
Бдительный [Bditelnyy]   763 Schichau, Elbing, Germany 3.1905 17.3.1906 4.1906 sunk 27.11.1917
Боевой [Boevoy]   764 Schichau, Elbing, Germany 3.1905 9.1.1906 Spring 1906 interned by Germany 12.4.1918 - 5.1918, stricken 1924
Бурный [Burnyy]   765 Schichau, Elbing, Germany 4.1905 7.2.1906 Spring 1906 stricken 4.1925
Внимательный [Vnimatelnyy]   766 Schichau, Elbing, Germany 5.1905 20.2.1906 Spring 1906 minesweeper 10.1921, stricken 2.1925
Внушительный [Vnushitelnyy], 2.1925- Мартынов [Martynov]   767 Schichau, Elbing, Germany 8.1905 31.3.1906 Summer 1906 minesweeper 10.1921, TS 1.1928, stricken 10.1940
Выносливый [Vynoslivyy], 2.1925- Артемьев [Artemyev]   768 Schichau, Elbing, Germany 8.1905 31.3.1906 Summer 1906 minesweeper 10.1921, dispatch vessel 7.1926, TS 1932, BU 1939


Technical data


Displacement normal, t

450

Displacement full, t540
Length, m

63.6

Breadth, m

7.01

Draught, m

2.71

No of shafts

2

Machinery

2 VTE, 4 Schulz-Thornycroft boilers

Power, h. p.

6000

Max speed, kts

27

Fuel, t

coal 125

Endurance, nm(kts)960(12)
Armament

2 x 1 - 75/48 Canet, 6 x 1 - 7.6/94, 3 x 1 - 450 TT, 16 mines

Complement

65



Standard scale images


<i>Inzhener-Mekhanik Zverev </i>1914
Inzhener-Mekhanik Zverev 1914


Graphics


<i>Inzhener-Mekhanik Zverev</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Inzhener-Mekhanik Zverev Many thanks to Wolfgang Stöhr for additional information on this page.

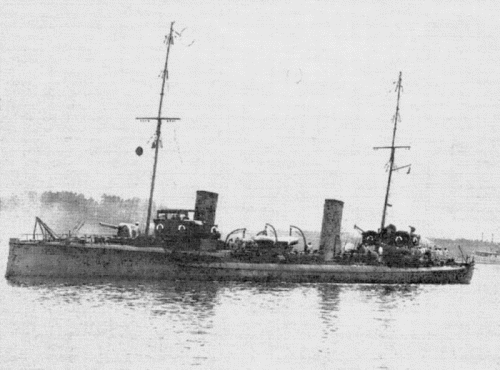

<i>Bditelnyy</i>
Bditelnyy


Project history

Repeated the destroyers of Kit class, intended for the Far East. After termination of Russian-Japanese war only 2 ships, Kapitan Yurasovskiy and Leytenant Sergeev were shipped to Vladivostok by railway. Rated as torpedo boats, since September, 1907 as destroyers.

Modernizations

1921, Vnimatelnyy, Vnushitelnyy, Vynoslivyy; 1922, Inzhener-Mekhanik Zverev, Inzhener-Mekhanik Dmitriev: - 3 x 1 - 450 TT: + mechanical minesweeping gear

1926, Zhemchuzhin, Roshal, Artemyev: - minesweeping gear

Naval service

27.11.1917 Bditelny was sunk on German mine in Gulf of Bothnia. Remaining ships after termination of Civil war were used as minesweepers. Vnushitelny, renamed Martynov, served as guard and dispatch ship up to 1940.





Many thanks to Wolfgang Stöhr for additional information on this page.
