BEDOVYY destroyer (projects 56EM, 56M) (1958)

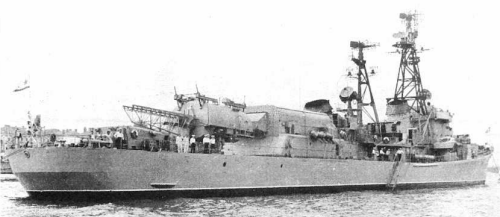

Neulovimyy

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Бедовый [Bedovyy]   1204 445 61 Kommunar Yd, Nikolayev 1.12.1953 31.7.1955 30.6.1958 stricken 4.1989 project 56EM
Прозорливый [Prozorlivyy]   1210 445 61 Kommunar Yd, Nikolayev 1.9.1956 30.7.1957 30.12.1958 stricken 6.1991 project 56M
Неуловимый [Neulovimyy]   743/765 190 Zhdanov Yd, Leningrad 23.2.1957 27.2.1958 30.12.1958 stricken 4.1990 project 56M
Неудержимый [Neuderzhimyy]   88 199 Yd, Komsomolsk-on-Amur 19.1.1955 24.5.1958 30.12.1958 training hulk 12.1985 project 56M


Technical data


Displacement standard, t

2850

Displacement full, t

56EM: 3390

56M: 3315

Length, m

126.1

Breadth, m

12.7

Draught, m

56EM: 4.50

56M: 4.30

No of shafts

2

Machinery

2 TV-8 geared steam turbines sets, 4 KV-76 boilers

Power, h. p.

72000

Max speed, kts

56EM: 37

56M: 39

Fuel, t

oil

Endurance, nm(kts)

56EM: 2980(18)

56M: 3250(18.2)

Armament

56EM: 1 x 1 KSShch SSM (8 KSShch), 4 x 4 - 45/89 SM-20-ZIF, 2 DCR

56M: 1 x 1 KSShch SSM (8 KSShch), 4 x 4 - 57/75 ZIF-75, 2 x 2 - 533 TT, 2 x 16 RBU-2500 Smerch ASWRL, 2 x 6 RKU-36U Burun ASWRL, 2 DCR

Electronic equipment

56EM: Rif-A, Rif-Shch, Zalp-Shch, 2x Fut-B radars, Pegas-2M sonar, Bizan'-4A ECM suite, Planshet-56M CCS

56M 1210, 743/765: Fut-N, Rif-Shch, Don, Kivach, Zalp-Shch, 2x Fut-B radars, Gerkules-2M sonar, Bizan'-4A ECM suite, Planshet-56M CCS

56M 88: Fut-N, Rif-Shch, Don, Kivach, Zalp-Shch, 2x Fut-B radars, Gerkules sonar, Bizan'-4A ECM suite, Planshet-56M CCS

Complement

270



Standard scale images

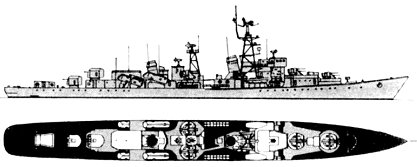

<i>Prozorlivyy </i>1990
Prozorlivyy 1990


Graphics

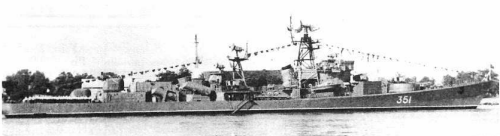

<i>Neulovimyy</i>
Neulovimyy
<i>Nastoychivyy</i>
Nastoychivyy


Project history

This Project 56 design was the shrunken version of Project 41. Work began under a 2 June 1951 decree on 'changes in the military characteristics of Project 41'. The main changes ordered were a reduction in full load displacement from 3770t to 3150t, full speed increased from 36kts to 39kts, cruising range (14kts) reduced from 5500nm to 4000nm, stores endurance halved to 10 days, and lighter torpedo tubes and unstabilized 45mm gun mounts (quadruple SM-20s instead of twin SM-16s, 750 rather than 1000 rounds/barrel). A production run of 100 ships (rather than the 110 planned Project 41s) was envisaged. In fact only twenty-seven were completed; production was stopped in October 1955. Four more hulls were then completed as missile ships (Project 56M).

Presumably the 1951 figures represented a sketch design already available; TsKB-53 skipped the usual preliminary design stage to go directly to detailed design in hope of rescuing the production schedule. Work on the first two ships began in February 1952 (much prefabrication preceded the official keel laying. It was soon obvious that the preliminary figures had been too optimistic. However, the figures were officially confirmed in a TTZ issued 4 April 1954 (full load displacement was allowed to rise to 3220t, required speed to fall to 38.5kts, and the 25mm guns of Project 41 were eliminated). By this time the first unit was nearly ready to launch.

There were some differences from Project 41 armament: the director was a new type (Sfera-56; the analogous Sfera-50 was used on Project 50 frigates) and the 45mm guns were arranged in a rhombus so that fire could be concentrated along the centreline. Unlike project 41, project 56 had no ASW rocket launchers forward.

To accommodate the armament and powerplant of Project 41 in a smaller hull, some volume was pushed up above the main deck. To limit topweight, aluminium-magnesium alloy was used in the superstructure. These ships may have had the first Soviet fin stabilizers.

Trials were not altogether satisfactory. Although the powerplant exceeded design power, Spokoynyy did not make her designed speed until major modifications had been made (a centreline rudder replaced two abaft the propellers, and four-bladed propellers replaced the earlier 3-bladed ones). Even brief periods of high-speed steaming greatly reduced the ship's endurance (one hour at full speed cost 184nm at economical speed, compared to 104nm in Skoryy.

This class was very well liked in the Soviet Navy, their high bows made them dry, and they were very fast. Blagorodnyy reportedly made 42.9kts after a 1968 refit, and even the slowest of the class made 36kts about a decade after completion.

One incomplete ship, Bedovyy, was fitted out as a test platform for the new KSS anti-ship missile. The Kiparis system, an adapted gunfire direction system, was used for missile control. Apparently it was then decided to accelerate the missile programme by making this test installation operational (the Project 57 class destroyer was already being developed specifically to fire the KSS missile). Three more ships were completed to a new 56M missile configuration. One of them, Neudierzhimyy, had not been laid down to the Project 56 design, but presumably the material for her construction had already been assembled. These ships were armed with a new quadruple 57mm secondary gun and paired beam torpedo in place of the earlier quintuple mounts. Reportedly the armoured hangar aft contained six missiles. The existing Sfera director was retained.

Modernizations

late 1960s, Bedovyy - as Project 56U: - 4 x 4 - 45/89, 2 DCR; + 4 x 4 - 57/75 ZIF-75, 2 x 2 - 533 TT, 2 x 16 RBU-2500 Smerch ASWRL; 2890/3447t

1970s, Neuderzhimyy: + P-10 Yenisey radar, MG-409 sonar, MI-110K thermal submarine wake detector

1972, Neulovimyy; 1977, Prozorlivyy: - 1 x 1 KSShch SSM, 2 x 6 RKU-36U Burun ASWRL, Fut-N, Rif-Shch radars, Gerkules-2M sonar, Planshet-56M CCS; + 4 x 1 P-15 Termit SSM (4 P-15), 2 x 2 - 76/59 AK-726, MR-310 Angara-A, MR-105 Turel' radars, Platina sonar, BOKA torpedo decoy, Planshet-56U CCS; 2940/3447t, 35kts, 2400(18)nm

1974, Bedovyy: - 1 x 1 KSShch SSM, Fut-N, Rif-Shch radars, Planshet-56M CCS; + 4 x 1 P-15 Termit SSM (4 P-15), 2 x 2 - 76/59 AK-726, Topaz-IV, MR-105 Turel' radar, BOKA torpedo decoy, Planshet-56U CCS; 2960/3489t, 35kts, 2400(18)kts

Naval service

These ships were rated as destroyers, since May 1966 large missile ships, since February 1977 large ASW ships and since August 1977 again large missile ships.
