ANAKRIYA torpedo boat (1890)





Anakriya

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Анакрия [Anakriya], 4.1895- №260, 7.1915- Минёр [Minyor], 10.1916- №2   422 Schichau, Elbing, Germany 1889 9.10.1889 4/1890 dispatch vessel 7.1915, captured 1.5.1918


Technical data


Displacement normal, t

95

Displacement full, t100
Length, m

38.6

Breadth, m

4.78

Draught, m

2.08 max

No of shafts

1

Machinery

1 VTE, 2 locomotive boilers

Power, h. p.

1100

Max speed, kts

21

Fuel, t

coal 18

Endurance, nm(kts)478(12)
Armament

2 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT

Complement21


Standard scale images


<i>Anakriya </i>1890

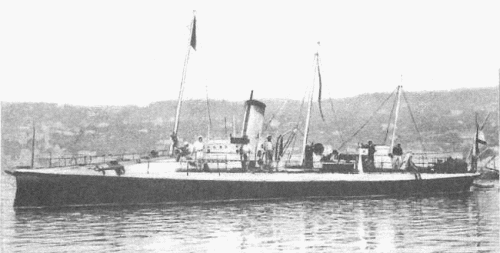

Anakriya 1890


Graphics


<i>Anakriya</i>
Anakriya


Project history

Usual single-funneled boat of the Schichau type. One TT was fixed in the bows and one in single training mounting on deck.

Modernizations

1900: converted to oil fuel

1915: - 1 x 5 - 37/17, 1 x 1 - 381 TT; + 1 x 1 - 47/40 Hotchkiss, 1 x 1 - 7.6/94

Naval service

№2 was captured by German troops at Sevastopol 1.5.1918, later recaptured by British-French troops and demolished by them.
