No214 torpedo boats (1902 - 1903)





No220 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
№214 [No214]     Nevskiy Wks, St. Petersburg 1901 1902 12.1903 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918
№215 [No215]     Nevskiy Wks, St. Petersburg 1901 1902 12.1903 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C1)
№216 [No216]     Nevskiy Wks, St. Petersburg 1901 1902 12.1903 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C2)
№217 [No217]     Nevskiy Wks, St. Petersburg 1901 1902 12.1903 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C3)
№218 [No218]     Nevskiy Wks, St. Petersburg 1901 1902 12.1903 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918
№219 [No219]     Crichton, Abo 10.1901 29.4.1903 12.1903 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918 (C4)
№220 [No220]     Crichton, Abo 10.1901 2.7.1903 12.1903 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918
№221 [No221]   1522 Crichton, Abo late 1901 30.9.1901 2.1903 foundered 10.3.1905
№222 [No222]   1523 Crichton, Abo 1901 15.10.1901 9.1902 minesweeper 8.1914, dispatch vessel 4.1915, captured by Finland 13.4.1918
№223 [No223]   1524 Crichton, Abo 1901 20.11.1901 2/1903 stricken 11.1911


Technical data


Displacement normal, t

152
Displacement full, t
Length, m

45.1
Breadth, m

4.65
Draught, m

2.67
No of shafts

2
Machinery

2 VTE, 2 Normand boilers
Power, h. p.

3700
Max speed, kts

29
Fuel, t

coal 30
Endurance, nm(kts)450(12)
Armament

2 x 1 - 47/40 Hotchkiss, 1 x 2 - 381 TT
Complement

28


Standard scale images


<i>No214</i> 1911
No214 1911


Graphics

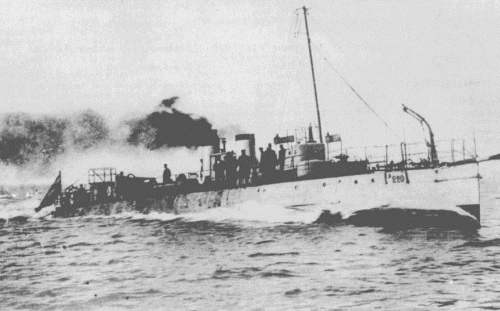

<i>No220</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
No220 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Built on similarity of French torpedo boats of Cyclone class.

Modernizations

1914, all survived: - 1 x 2 - 381 TT; + mechanical minesweeping gear

1915, all survived: - minesweeping gear

Naval service

No221 has sunk during a storm in Mediterranean sea 25.2.1904. In days of WWI boats were used as minesweepers and dispatch vessels. 18.7.1915 No218 was mined in Gulf of Bothnia, but remained afloat and in 3 months returned to service. All survived boats were captured by Finnish troops 13.4.1918 at Helsingfors. Later they as obsolete were transferred by Soviet Government to Finland and broken up.



Many thanks to Wolfgang Stöhr for additional information on this page.
