BOYARIN 2nd class cruiser (1902)





Boyarin Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Боярин [Boyarin]   212 Burmeister & Wain, Copenhagen, Denmark 6.9.1900 8.6.1901 30.8.1902 sunk 13.2.1904


Technical data


Displacement normal, t

3200

Displacement full, t3274
Length, m

105.2 pp 108.3 wl 108.3 oa

Breadth, m

12.7

Draught, m

4.88 max

No of shafts

2

Machinery

2 VTE, 16 Belleville boilers

Power, h. p.

11500

Max speed, kts

22

Fuel, t

coal 600

Endurance, nm(kts)

3000(10)

Armour, mmNickel steel; deck: 38 with 51mm slopes, ammunition tubes: 25, CT: 76 (Krupp steel)
Armament

6 x 1 - 120/43 Canet, 1 x 1 - 63/17 Baranovski, 8 x 1 - 47/40 Hotchkiss, 1 x 1 - 37/20 Hotchkiss, 5 - 450 TT (aw, 4 beam, 1 stern)

Complement

331



Standard scale images

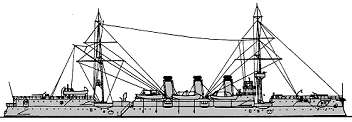

<i>Boyarin </i>1903
Boyarin 1903


Graphics

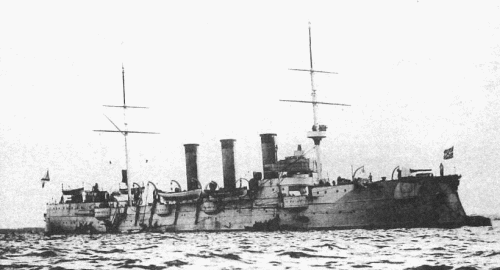

<i>Boyarin</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Boyarin Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Very different from the Novik in appearance, the Boyarin resembled a lighter version of the Bogatyr' class with a short forecastle and poop, three funnels and two masts. One 120mm gun was mounted far forward, one aft and the others in upper deck sponsons by the fore and mainmasts.

Ship protection

There was a 38mm deck with 51mm slopes amidships and 76mm on the CT.

Modernizations

None.

Naval service

Boyarin struck a Russian mine 11.2.1904 off Dairen near Port Arthur and was abandoned by her crew. Towing appeared possible, but the Boyarin broke loose during the night and drifted on to another mine and sank two days later.

Many thanks to Wolfgang Stöhr for additional information on this page.
