P-104 patrol boats (project 21980) (2009-)
P-424 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| П-104 [P-104], 12.2013- Нахимовец [Nakhimovets] | 689 | 981 | SSZ im. Gorkogo, Zelenodolsk | 8.2.2008 | 25.4.2009 | 11.2009 | in service (2019) |
| П-191 [P-191], 2.2015- Кадет [Kadet] | 840 | 982 | SSZ im. Gorkogo, Zelenodolsk | 7.5.2010 | 7.2011 | 10.2011 | in service (2019) |
| П-349 [P-349], 2.2015- Суворовец [Suvorovets] | 841 | 983 | SSZ im. Gorkogo, Zelenodolsk | 6.5.2011 | 16.6.2012 | 14.11.2012 | in service (2019) |
| П-350 [P-350], 2.2015- Курсант-Кировец [Kursant-Kirovets] | 850 | 984 | SSZ im. Gorkogo, Zelenodolsk | 5.5.2012 | 4.2013 | 22.8.2013 | in service (2019) |
| П-351 [P-351], 8.2016- Юнармеец Каспия [Yunarmeets Kaspiya] | 600 | 985 | SSZ im. Gorkogo, Zelenodolsk | 27.7.2012 | 2013 | 15.10.2013 | in service (2019) |
| П-355 [P-355], 8.2016- Юнармеец Крыма [Yunarmeets Kryma] | 836 | 986 | SSZ im. Gorkogo, Zelenodolsk | 7.5.2013 | 5.2014 | 22.8.2014 | in service (2019) |
| П-424 [P-424], 6.2-17- Кинель [Kinel'] | 837 | 987 | SSZ im. Gorkogo, Zelenodolsk | 27.7.2013 | 2014 | 9.10.2014 | in service (2019) |
| П-433 [P-433] | 844 | 988 | SSZ im. Gorkogo, Zelenodolsk | 12.1.2015 | 17.5.2017 | 16.9.2017 | in service (2019) |
| Юнармеец Татарстана [Yunarmeets Tatarstana] | 601 | 989 | SSZ im. Gorkogo, Zelenodolsk | 7.5.2015 | 2018 | 2018 | in service (2019) |
| 990 | SSZ im. Gorkogo, Zelenodolsk | 2016 | 2018 | 2019 | building (2019) | ||
| П-377 [P-377] | 996 | 8002 | Vostochnaya verf', Vladivostok | 15.3.2012 | 24.6.2013 | 26.9.2013 | in service (2019) |
| П-420 [P-420], 8.2016- Юнармеец Приморья [Yunarmeets Primorya] | 997 | 8003 | Vostochnaya verf', Vladivostok | 2012 | 30.11.2013 | 24.2.2014 | in service (2019) |
| П-417 [P-417], 8.2016- Юнармеец Камчатки [Yunarmeets Kamchatki] | 994 | 8004 | Vostochnaya verf', Vladivostok | 2012 | 4.7.2014 | 25.9.2014 | in service (2019) |
| П-431 [P-431], 2.2019- Юнармеец Чукотки [Yunarmeets Chukotki] | 995 | 8005 | Vostochnaya verf', Vladivostok | 2016 | 8.2017 | 14.10.2017 | in service (2019) |
| П-... [P-...] | 8006 | Vostochnaya verf', Vladivostok | 2017 | 12.10.2018 | 12.2018 | in service (2019) | |
| 8007 | Vostochnaya verf', Vladivostok | 2016 | 2018 | 2019 | building (2019) | ||
| Юнармеец Заполярья [Yunarmeets Zapoliarya] (ex-П-340 [P-340]) | 669 | 01221 | Vympel, Rybinsk | 3.2014 | 7.6.2016 | 19.11.2016 | in service (2019) |
| П-421 [P-421], 2018- Юнармеец Беломорья [Yunarmeets Belomorya] | 699 | 01222 | Vympel, Rybinsk | 12.2014 | 22.7.2016 | 19.11.2016 | in service (2019) |
| П-429 [P-429] | 936 | 01223 | Vympel, Rybinsk | 15.9.2015 | 27.4.2017 | 14.7.2017 | in service (2019) |
| П-430 [P-430], 2.2018- Валерий Федянин [Valeriy Fedyanin] | 941 | 01224 | Vympel, Rybinsk | 15.4.2016 | 22.6.2017 | 9.11.2017 | in service (2019) |
| БСК-... [BSK-...] | 01225 | Vympel, Rybinsk | 2017 | 2019 | 2019 | building (2019) | |
| БСК-... [BSK-...] | 01226 | Vympel, Rybinsk | 2017 | 2019 | 2019 | building (2019) | |
| БСК-... [BSK-...] | 01227 | Vympel, Rybinsk | 2017 | 2019 | 2019 | building (2019) | |
| БСК-... [BSK-...] | 01228 | Vympel, Rybinsk | 2017 | 2019 | 2019 | building (2019) |
Technical data
| Displacement standard, t | 138 |
|---|---|
| Displacement full, t | 140 |
| Length, m | 31.0 |
| Breadth, m | 7.40 |
| Draught, m | 1.85 |
| No of shafts | 2 |
| Machinery | 981-987, 8002-8004: 2 MTU diesels 988-990, 8005-8007, 01221-01226: 2 TBD620V12 diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 200(23) |
| Armament | 1 x 4 Igla SAM (12 9M39), 1 x 1 - 14.5/89, 1 x 10 - 55 DP-65A grenade launcher, 1 x 1 - 45 DP-64 grenade launcher, 1 Falkon UAV |
| Electronic equipment | MR-231 radar, MTK-201M3 E/O detector, Kalmar, MG-757 Anapa-M sonars, P-104 Filin E/O countermeasures system |
| Complement | 8 + swimmers |
Standard scale images

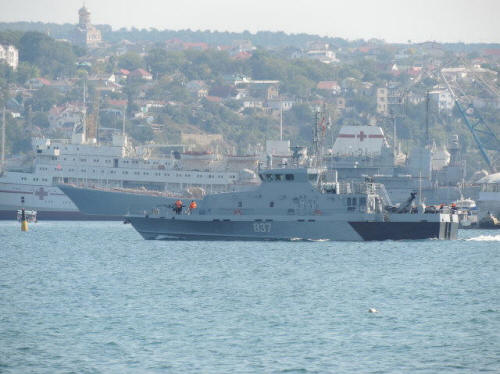

P-104 2010
Graphics
P-424 2016
Project history
Intended for local port and harbor protection missions, counterterrorism and diver support, carry compression chamber.
Modernizations
None.
Naval service
No significant events.
