No12 motor launches (project KM-2) (1935 - 1942), K-161 border guard boats (type KM-II) (1935 - 1937)





No27

Ships


Names Builders Commissioned Losses Transfers Discarding

Navy boats:

№11 - 13 [No11 - 13]

№14 [No14], 12.1944- СК-14 [SK-14]

№15 [No15]

№18 [No18], 1.1945- СК-18 [SK-18]

№21 [No21], 12.1944- СК-21 [SK-21]

№22 [No22]

№23 [No23], 12.1944- СК-23 [SK-23]

№24 [No24]

№25 [No25], 12.1944- СК-25 [SK-25]

№26 [No26]

№27 [No27]

№28 [No28], 1.1945- СК-28 [SK-28]

№38 [No38], 1.1945- СК-38 [SK-38]

№48 [No48], 1.1945- СК-48 [SK-48]

ОВ-161 - 165 [OV-161 - 165], 9.1944- СК-161 - 165 [SK-161 - 165]

Auxiliary Navy boats, reclassified as combat in 1941:

№603 [No603] (ex-MA-3)

№604 [No604] (ex-MA-4), 10.1944- KT-604

№605 [No605] (ex-ПУ-1 [PU-1])

№606 [No606] (ex-ПУ-2 [PU-2])

№607 [No607] (ex-ПУ-3 [PU-3]), 10.1944- KT-407

Board Guard boats, transferred to Navy:

K-188, 12.1941- №0168 [No0168]

K-189, 12.1941- №0178 [No0178]

K-190, 12.1941- №0188 [No0188]

K-212, 12.1941- №0117 [No0117], 5.1944- СК-117 [SK-117]

K-213, 12.1941- №0174 [No0174], 12.1941- №087 [No087], 5.1944- СК-87 [SK-87]

K-214, 12.1941- №0127 [No0127], 5.1944- СК-127 [SK-127]

K-215, 12.1941- №096 [No096], 5.1944- СК-96 [SK-96]

K-216, 12.1941- №0106 [No0106]

K-217, 12.1941- №0137 [No0137]

K-218, 12.1941- №0135 [No0135], 5.1944- СК-135 [SK-135]

K-221, 9.1941- №0173 [No0173]

K-222, 9.1941- №0113 [No0113]

K-223, 9.1941- №0183 [No0183]

K-224, 12.1941- №076 [No076]

K-225, 12.1941- №086 [No086]

K-226, 9.1941- №0123 [No0123]

K-228, 12.1941- №0134 [No0134], 12.1941- №0145 [No0145], 5.1944- СК-145 [SK-145]

K-236, 12.1941- №0116 [No0116], 5.1944- СК-116 [SK-116]

K-238, 12.1941- №0174 [No0174]

K-241, 9.1941- №0153 [No0153]

K-242, 9.1941- №0163 [No0163], 5.1944- СК-163 [SK-163]

K-279, 7.1941- №614 [No614], 9.1941- И-21 [I-21], 10.1944- KT-845

K-280, 7.1941- №615 [No615], 9.1941- И-22 [I-22], 10.1944- KT-846

K-284, 7.1941- №616 [No616], 9.1941- И-23 [I-23], 11.1944- KT-455

K-288, 9.1941- И-24 [I-24], 12.1944- СК-24 [SK-24]

K-289, 9.1941- И-27 [I-27]

K-292, 9.1941- И-25 [I-25]

K-294, 9.1941- И-26 [I-26]

K-295, 9.1941- И-29 [I-29]

K-298, 9.1941- И-28 [I-28]

K-316, 9.1941- И-30 [I-30]

K-317, 9.1941- И-41 [I-41]

K-318, 9.1941- И-42 [I-42]

K-336, 9.1941- И-48 [I-48]

K-337, 9.1941- И-32 [I-32]

K-338, 9.1941- И-49 [I-49]

K-340, 9.1941- И-33 [I-33]

K-387, 9.1941- №606 [No606], 5.1944- СК-606 [SK-606]

Board Guard boats:

K-161 - 168

many small yards

1935: K-188 - 190, 288, 289, 292, 294, 295, 298, 316 - 318

1936: K-212 - 218, 221 - 226, 228, 236, 238, 241, 242, 387

1937: K-161 - 168, 279, 280, 284, 336 - 338, 340

1941: No11 - 15, 21 - 27

1935 // 1941: No603 - 607

1942: No18, 28, 38, 48, OV-161 - 165

No0168 (1.11.1943), No0178 (1.11.1943), No0188 (1.11.1943), No0106 (1942), No0137 (17.5.1942), No0173 (1942), No0113 (16.11.1943), No0183 (1942), No076 (11/1943), No086 (1942), No0123 (2.11.1943), No0174 (1942), No0153 (16.11.1941), I-27 (17.8.1944), I-29 (1.11.1941), I-41 (12/1941), I-42 (25.6.1944), I-48 (13.5.1944), No11 (24.7.1941), No12 (16.9.1941), No13 (27.9.1941), No15 (25.6.1944), No22 (29.9.1941), No23 (9/1941), No27 (1944)

none

1944: I-25, 26, 28, 33, No26, 603, 605, 606

1945: KT-845

late 1940s: all survived



Technical data


Displacement standard, t
Displacement full, t

7

Length, m

13.8

Breadth, m

3.10

Draught, m

0.80

No of shafts

1

Machinery

1 petrol engine

Power, h. p.

63

Max speed, kts

9

Fuel, t

petrol

Endurance, nm(kts)
Armament

1 x 1 - 7.6/94

Complement10


Graphics

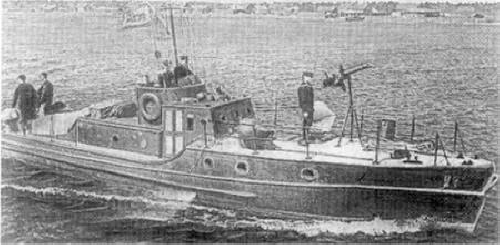

<i>No27</i>
No27


Project history

Boats were designed for police service on rivers and lakes on the basis of project bought in Germany, built as Board Guard boats, runabouts and office boats. Unlike a prototype, had wooden hull and one automobile motor. In days of war they were converted to patrol, smoke curtain and minesweeping launches.

Modernizations

1941, I-21 - 23, 25 - 28, 32, 33, 48, No26, 27, 603-607: + mechanical minesweeping gear.

1944, I-23, 25: - minesweeping gear.

1944, KT-455: + mechanical minesweeping gear

Naval service

No significant events.
