AK-225 attack craft (gun) (project 205PE) (1969)

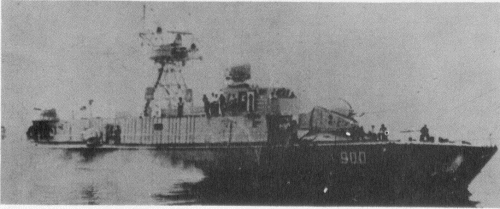

AK-225 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
AK-225   110 Primorskiy Yd, Leningrad     1.1969 stricken 6.1991


Technical data


Displacement standard, t

175

Displacement full, t

210

Length, m

39.0

Breadth, m

8.10

Draught, m

1.80

No of shafts

3

Machinery

3 M-504 diesels

Power, h. p.

15000

Max speed, kts

36

Fuel, t

diesel oil

Endurance, nm(kts)

1200(12)

Armament

1 x 2 - 57/50 AK-725, 1 x 6 - 30/54 AK-630M

Electronic equipment

Don, MR-103 Bars, MR-123 Vympel-A radars, Vympel-R2 ECM suite, 2 PK-16 decoy RL

Complement

30



Standard scale images


<i>AK</i><i>-225</i><i> </i>1969
AK-225 1969


Graphics


<i>AK-225</i> 1976
AK-225 1976


Project history

Single hydrofoil trials craft, it was armed with a twin 57mm gun forward (for Project 1124 trials).

Modernizations

1975: - 1 x 2 - 57/50; + 1 x 1 - 57/50 AK-157

Naval service

No significant events.
