TK-7 ODESSKIY PATRIOT motor torpedo boats (project 123bis) (1944 - 1948)

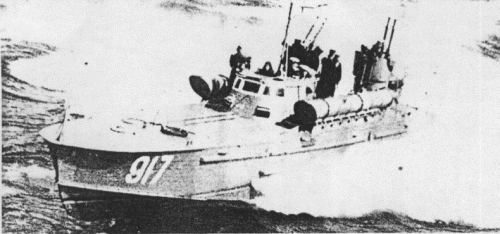

nearly sister-ship TK-917

Ships


Names Builders Commissioned Losses Transfers Discarding

project 123bis:

ТК-7 Одесский Патриот [TK-7 Odesskiy Patriot]

ТК-100 Одесский Колхозник [TK-100 Odesskiy Kolkhoznik]

TK-110 - 112

TK-120

TK-122; TK-123

TK-130

ТК-131 Речник Ангары [TK-131 Rechnik Angary]

ТК-132 Артёмовец [TK-132 Artyomovets]

ТК-133 Трудящийся Артёма [TK-133 Trudyashchiysya Artyoma]

TK-140

ТК-141 Одесский Комсомолец [TK-141 Odesskiy Komsomolets]

TK-142; TK-143

TK-146

TK-148

ТК-350 Черноморец [TK-350 Chernomorets]

ТК-472 Моряк Дальстроя [TK-472 Moryak Dalstroya]

ТК-473 Ливадия [TK-473 Livadiya]

TK-474 - 481

ТК-607 Комсомол Казахстана [TK-607 Komsomol Kazakhstana]

ТК-608 Пионер Казахстана [TK-608 Pioner Kazakhstana]

TK-687 - 690

and 85 others

postwar boats may include numbers TK-1 - 6; TK-8 - 12; TK21 - 30; TK-46; TK-95; TK-188 - 191; TK-271 - 301; TK-317 - 320; TK-327 - 332; TK-337 - 350; TK-352 - 380; TK-386 - 420; TK-460 - 471; TK-482 - 512; TK-551 - 558; TK-574; TK-575; TK-597; TK-599; TK-601 - 606; TK-609; TK-721 - 740; TK-940 - 957; TK-972; TK-980 - 995

121 boats at all

639 Yd, Tyumen`: all

1944: TK-131 Rechnik Angary, TK-132 Artyomovets, TK-133 trudyashchiysya Artyoma, TK-141 Odesskiy Komsomolets, TK-350 Chernomorets

1945: TK-7 Odesskiy Patriot, TK-100 Odesskiy Kolkhoznik, TK-110 - 112, TK-120, TK-122, TK-123, TK-130, TK-140, TK-142, TK-143, TK-146, TK-148, TK-472 Moryak Dalstroya, TK-473 Livadiya, TK-474 - 481, TK-607 Komsomol Kazakhstana, TK-608 Pioner Kazakhstana

1946 - 1948: TK-687 - 690 and 85 others

TK-132 Artyomovets (9.5.1945)

Albania, 1953: 3 pr. 123bis (No221 - 223); 1954: 3 pr. 123bis (No224-226)

Bulgaria, 1956: 8 boats

China, 1952 - 1961: 55 boats

Cuba, 1962 - 1964: 12 boats

Cyprus, 1964 - 1965: 6 boats

North Korea, 1952 - 1953: 12 boats

Romania, 1953: 12 boats

Somalia, 1972: 4 boats

Syria, 1958 - 1960: 17 boats

Tanzania, 1972 - 1973: 4 boats

North Vietnam, 1961: TK-287, TK-294, TK-296, TK-299, TK-317, TK-319, TK-320, TK-552, TK-553, TK-556

North Yemen, 1960 - 1971: 4 boats

South Yemen, 1978: 4 boats



these numbers include also boats of post-war M-123bis and 123K projects

1950/70s: almost all



Technical data


Displacement standard, t

18

Displacement full, t

21

Length, m

18.7

Breadth, m

3.44

Draught, m

1.20

No of shafts

2

Machinery

2 Packard petrol engines

Power, h. p.

2400

Max speed, kts

48

Fuel, t

petrol

Endurance, nm(kts)345(28)
Armament

2 x 2 - 12.7/79, 2 - 450 TT

Complement

7



Graphics


<i>nearly sister-ship TK-917</i>
nearly sister-ship TK-917


Project history

Small duraluminium step-hulled MTBs. Slightly differing from G-5 on displacement, possessed better seaworthiness and stronger artillery. The deck house was protected by 7mm armour. The lead boat was equipped with two 533mm torpedo cradles. Serial boats were equipped with 450mm torpedo tubes.

Modernizations

None.

Naval service

No significant events.
