PS-581 border guard ships (pr. 22120) (2010-)
PS-825 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| ПС-581 [PS-581] (ex-ППС-82 [PPS-82], ex-ПС-824 [PS-824]), 7.2017- Контр-адмирал Колчин Е. С. [Kontr-admiral Kolchin E. S.] | 050 | 050 | Almaz, St. Petersburg | 3.2007 | 24.12.2009 | 22.12.2010 | in service (2019) |
| ПС-825 [PS-825], 2013- ППС-825 [PPS-825], 2015- ПС-825 [PS-825], 9.2018- Контр-адмирал Дианов [Kontr-admiral Dianov] | 108 | 051 | Almaz, St. Petersburg | 25.11.2011 | 5.12.2012 | 24.6.2013 | in service (2019) |
| Камчатка [Kamchatka] | 052 | 052 | Almaz, St. Petersburg | 24.5.2017 | 17.5.2018 | 23.11.2018 | in service (2019) |
| Забайкалье [Zabaykalye] | 053 | Almaz, St. Petersburg | 30.5.2018 | 2019 | 2019 | building (2019) | |
| Таймыр [Taymyr] | 054 | Almaz, St. Petersburg | 30.5.2018 | 2019 | 2019 | building (2019) |
Technical data
| Displacement standard, t | 800 |
|---|---|
| Displacement full, t | 1155 051: 1246 |
| Length, m | 050, 052-054: 71.0 051: 70.8 |
| Breadth, m | 10.4 |
| Draught, m | 050, 051: 3.62 052-054: 3.40 |
| No of shafts | 2 |
| Machinery | 050: 2 ABC 16VDZC-1000-175A diesels 051: 2 ABC 16VDZC-1000-176 diesels 052-054: 2 ABC 12M VDZC diesels |
| Power, h. p. | 050, 051: 10200 052-054: 8160 |
| Max speed, kts | 050: 21.3 051: 21 052-054: 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 050: 4100(14) 051: 6000(14) 052-054: 6000(10) |
| Armament | light arms, helicopter deck |
| Electronic equipment | MR-231 radar |
| Complement | 30 |
Standard scale images
PS-824 2010
Graphics

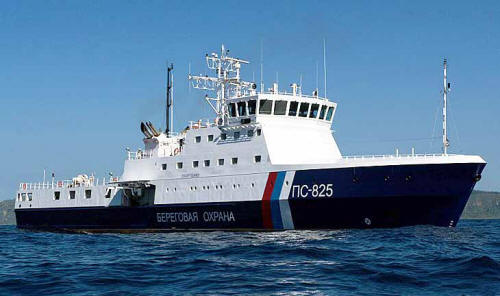

PS-825 2013
Project history
Modified German Bad Bremstedt design. Intended for law enforcement, fisheries patrol and search and rescue duties in EEZ. Ship can carry Ka-226 light helicopter on the deck.
Modernizations
None.
Naval service
No significant events.
