FARO fishery protection vessels (1928-1930)

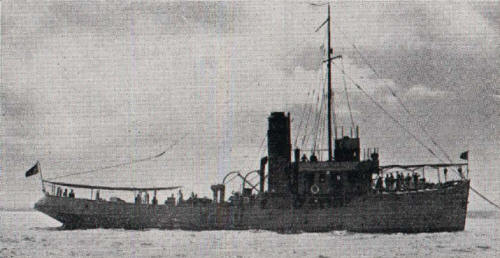

Lagos 1933

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Faro     ER de Lisboa   1927 1928 discarded 1960
Lagos     ER de Lisboa   1930 1930 discarded 1960


Technical data


Displacement standard, t295
Displacement full, t300
Length, m

36.6 pp 39.8 oa

Breadth, m

6.70

Draught, m

3.20

No of shafts

1

Machinery

1 VTE, 1 Yarrow boiler

Power, h. p.

650

Max speed, kts

13

Fuel, t

oil 42

Endurance, nm(kts)2000(7.5)
Armament2 x 1 - 47/40 3pdr Hotchkiss Mk I
Complement

52



Standard scale images


<i>Lagos </i>1933
Lagos 1933


Graphics


<i>Lagos </i>1933
Lagos 1933


Project history

Fishery protection patrols.

Modernizations

None.

Naval service

No significant events.
