CENTAURO patrols (2000-2001)





Orion 2011

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Centauro P1155   Arsenal do Alfeite     21.3.2000 in service (2019)
Orion P1156   Conafil, Vila Real de Santo Antonio     3.4.2000 in service (2019)
Pégaso P1157   Arsenal do Alfeite     27.3.2001 in service (2019)
Sagitário P1158   Conafil, Vila Real de Santo Antonio     27.3.2001 in service (2019)


Technical data


Displacement standard, t

82

Displacement full, t

100

Length, m

26.4 pp 28.4 oa

Breadth, m

5.95

Draught, m

1.45

No of shafts2
Machinery

2 Cummins KTA50-M2 diesels

Power, h. p.

3600

Max speed, kts

26

Fuel, tdiesel oil
Endurance, nm(kts)640(20)
Armament

1 x 1 - 20/70 Mk 4

Electronic equipment

Furuno FR-1411 radar

Complement8


Graphics

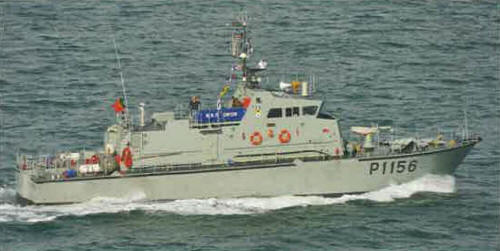

<i>Orion </i>2011
Orion 2011


Project history

Improved Argos class for use in fisheries protection, SAR and patrol service. Aluminium construction. 4m fast inspection RIB can be launched via stern ramp.

Modernizations

None.

Naval service

No significant events.
