ALBATROZ patrol boats (1974-1976)
Águia 2014
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P1162 Albatroz P1163 Açor P1164 Andorinha P1165 Águia P1166 Condor, 1999- UAM630 Condor P1167 Cisne |
Arsenal do Alfeite: P1162-1167 | 1974: P1162-1164 1975: P1165, 1166 1976: P1167 |
None |
East Timor, 2002: P1162 (Oecusse), P1163 (Ataúro) |
2003: P1164 2011: UAM630 2016: P1165 2017: P1167 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 45 |
| Length, m | 21.9 pp 23.6 oa |
| Breadth, m | 5.25 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 Cummins diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(12) |
| Armament | 1 x 1 - 20/70 Mk 4, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 316P radar |
| Complement | 8 |
Graphics

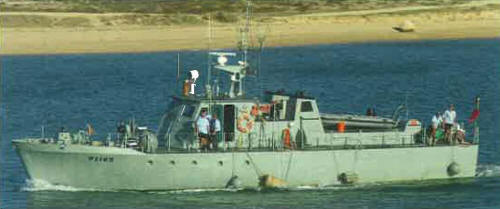

Águia 2014
Project history
Patrol boats for domestic service.
Modernizations
None.
Naval service
Condor was assigned to naval police in 1999.
