CALMARIA harbour patrol boats (1993-1995)
Monção 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
UAM642 Calmaria UAM643 Cirro UAM644 Vendeval UAM645 Monção UAM646 Suão UAM647 Macaréu UAM648 Preia-Mar UAM649 Baixa-Mar |
Rodman-Polyships, Vigo: UAM642-649 |
1993: UAM642, 643 1994: UAM644-647 1995: UAM648, 649 |
None |
None |
2017-18: UAM642-645, 649 in service (2019): UAM646-648 |
Technical data
| Displacement standard, t | 10 |
|---|---|
| Displacement full, t | 12 |
| Length, m | 11.9 |
| Breadth, m | 3.80 |
| Draught, m | 0.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 Bazán-MAN D2866LXE diesels |
| Power, h. p. | 900 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 275(20) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Furuno 1830 radar |
| Complement | 3 |
Graphics

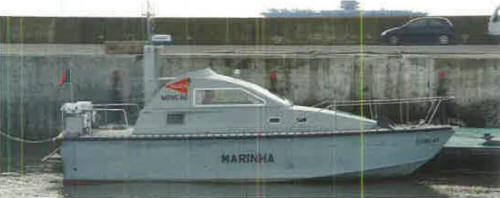

Monção 2011
Project history
GRP construction. Drug control launches for Customs brigade. Bazán 39 or Saetta 12 10T design.
Modernizations
None.
Naval service
No significant events.
