AL WAFI patrol boats (1977)

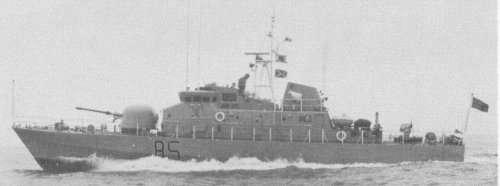

Al Fulk 1978

Ships


Name No Yard No Builder Laid down Launched Comp Fate
الوافي [Al Wafi] B4   Broke Marine, Lowestoft, UK     24.3.1977 stricken 1995
الفلك [Al Fulk] B5   Broke Marine, Lowestoft, UK     24.3.1977 stricken 1995
المجاهد [Al Mujaheed] B6   Broke Marine, Lowestoft, UK     20.7.1977 stricken 1995
الجبار [Al Jabbar] B7   Broke Marine, Lowestoft, UK     6.10.1977 stricken 1995


Technical data


Displacement standard, t

153
Displacement full, t

166
Length, m

37.5
Breadth, m

6.86
Draught, m

1.78
No of shafts

2
Machinery

2 Paxman Ventura 16RP200 diesels
Power, h. p.

4800
Max speed, kts

25
Fuel, t

diesel oil
Endurance, nm(kts)

3250(12)
Armament

1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 7.6/90
Electronic equipment

Decca 1226 or Decca 1229 radar, Sea Archer e/o system
Complement

27


Standard scale images


<i>Al Wafi </i>1975
Al Wafi 1975


Graphics


<i>Al Fulk </i> 1978
Al Fulk 1978


Project history

Ordered in 1974. Brooke Marine 37.5m class.

Modernizations

None.

Naval service

No significant events.
