VIDAR coastal minelayers (1977-1978)

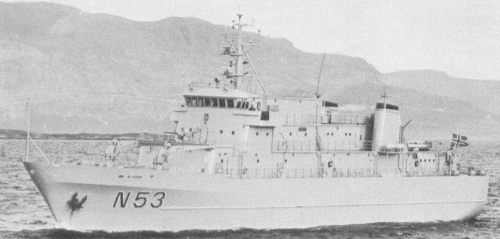

Vale 1979
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Vidar | N52 | Mjellem & Karlsen, Bergen | 1.3.1976 | 18.3.1977 | 21.10.1977 | to Lithuania 4.2006 (Jotvingis) | |
| Vale | N53 | Mjellem & Karlsen, Bergen | 1.2.1976 | 5.8.1977 | 10.2.1978 | to Latvia 1.2003 (Virsaitis) |
Technical data
| Displacement standard, t | 1500 |
|---|---|
| Displacement full, t | 1722 |
| Length, m | 60.0 pp 64.8 oa |
| Breadth, m | 12.0 |
| Draught, m | 4.00 hull |
| No of shafts | 2 |
| Machinery | 2 Wichmann 7AX diesels |
| Power, h. p. | 4200 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil 247 |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 40/70 Bofors 315, 2 x 3 - 324 Mk 32 TT, 2 DCR, 320 mines |
| Electronic equipment | 2x Decca TM1226 radars, 2x TVT-300 e/o directors, SQ3D sonar |
| Complement | 50 |
Standard scale images
Vidar 2000
Graphics
Vale 1979
