TYR controlled minefield tender (1981/1995)
Tyr 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Tyr (ex-Standby Master) | N50 | Voldnse Skipsverft, Fosnavåg | 23.1.1981 | 23.5.1981 | 8.1981 // 7.3.1995 | stricken 8.2014 |
Technical data
| Displacement standard, t | 495 |
|---|---|
| Displacement full, t | 650 |
| Length, m | 36.0 pp 42.3 oa |
| Breadth, m | 10.1 |
| Draught, m | 4.20 |
| No of shafts | 1 |
| Machinery | 2 Deutz SBA12M816 diesels |
| Power, h. p. | 1370 |
| Max speed, kts | 13 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | mines |
| Electronic equipment | Furuno FR711, Furuno 1011 radars |
| Complement | 22 |
Graphics

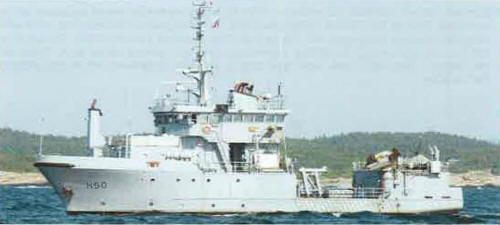

Tyr 2008
TYR controlled minefield tender (1981/1995)
Project history
Former oilfield standby safety and pollution-control ship, acquired as a replacement for the controlled minefield tender Borgen. 2 mine rails.
Modernizations
None.
Naval service
No significant events.
