FIGHTING SHIPS OF THE WORLD
NORWAY
FISHERY PROTECTION AND COAST GUARD SHIPS
NORNEN offshore patrol vessels (2006-2007)

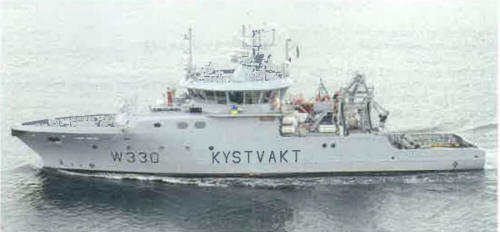

Nornen 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Nornen | W330 | Gryfia, Szczecin, Poland | 2.10.2006 | in service (2019) | |||
| Farm | W331 | Gryfia, Szczecin, Poland | 5.3.2007 | in service (2019) | |||
| Heimdal | W332 | Gryfia, Szczecin, Poland | 21.6.2007 | in service (2019) | |||
| Njord | W333 | Gryfia, Szczecin, Poland | 1.10.2007 | in service (2019) | |||
| Tor | W334 | Gryfia, Szczecin, Poland | 16.12.2007 |
Technical data
| Displacement standard, t | 700 |
|---|---|
| Displacement full, t | 912 |
| Length, m | 42.6 pp 47.2 oa |
| Breadth, m | 10.3 |
| Draught, m | 3.25 hull 5.00 max |
| No of shafts | 2 azipods |
| Machinery | 2 Cummins KTA38M2 diesel-generators, 1 Cummins KT19M diesel-generator, 2 electric motors |
| Power, h. p. | 3000 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | 2x radars |
| Complement | 20 |
Standard scale images
Nornen 2010
Graphics
Nornen 2012
Project history
Based on ST-610 design. Duties included pollution control, EEZ and fisheries patrol and firefighting. Carry two RIBs, have 100m² cargo area on aft deck, 90m³ hold. 35t bollard pull.
Modernizations
None.
Naval service
No significant events.
