FIGHTING SHIPS OF THE WORLD
NORWAY
FISHERY PROTECTION AND COAST GUARD SHIPS
NORNEN fishery protection ship (1963)
Nornen 1970
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Nornen | W300 | Mjellem & Karlsen, Bergen | 20.8.1962 | 1/1963 | stricken 2002 |
Technical data
| Displacement standard, t | 930 |
|---|---|
| Displacement full, t | 1060 |
| Length, m | 61.5 |
| Breadth, m | 10.0 |
| Draught, m | 4.80 |
| No of shafts | 2 |
| Machinery | 4 diesels |
| Power, h. p. | 3500 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 76/50 Mk 21?, helicopter deck |
| Electronic equipment | radar, sonar |
| Complement | 32 |
Standard scale images

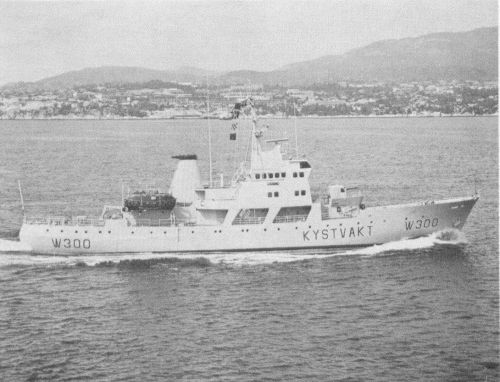

Nornen 1970
Nornen 1985
Graphics
Nornen 1970
Nornen 1979
Project history
Purpose built patrol ship. In 1977-1978 was completely rebuilt.
Modernizations
1978: - 1 x 1 - 76/50; + 1 x 1 - 40/70 Bofors 350, displacement standard became 1030t.
Naval service
No significant events.
