HARSTAD offshore patrol vessel (2005)

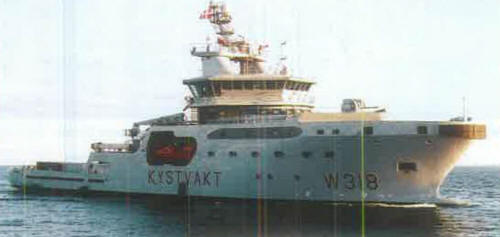

Harstad 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Harstad | W318 | Aker, Søviknes | 2004 | 28.1.2005 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 3130 |
| Length, m | 70.9 pp 83.0 oa |
| Breadth, m | 15.5 |
| Draught, m | 6.00 |
| No of shafts | 2 |
| Machinery | 2 Bergen B32/40L8P diesels |
| Power, h. p. | 10880 |
| Max speed, kts | 19 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 10000(13) |
| Armament | 1 x 1 - 57/70 SAK-57 Mk 1 |
| Electronic equipment | Furuno FAR2837, Furuno FAR2817 radars |
| Complement | 26 |
Standard scale images
Harstad 2010
Graphics
Harstad 2012
Project history
Designed by Rolls-Royce Marine for firefighting, environmental and law enforcement, push-and-pull tug and SAR operations, also is compatible with NATO submarine rescue operations. 1000m³ polluted seawater tanks, 2 watercannons, 2 inspection launches, 400m² cargo area aft, 110t bollard pull.
Modernizations
None.
Naval service
No significant events.
